| Manufacturer AIDC | Hand Held |
|---|---|
| Model Name | ImageTeam 3875 |
| Scanner Capability | 1D |

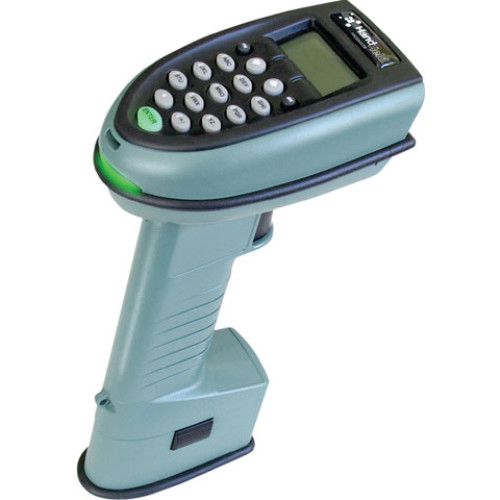

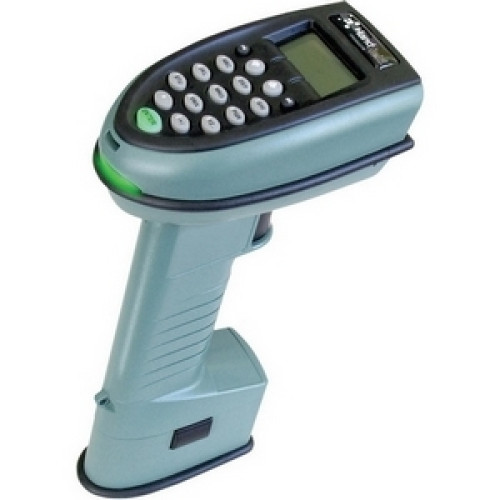

Hand Held ImageTeam 3875 Specs
Technical Information
- Form Factor: Handheld Scanner
- Symbologies Supported:
- Code 11
- Code 39
- Code 93
- Code 128
- Codabar
- EAN-8
- EAN-13
- Interleaved 2 of 5
- ISBT 128
- Matrix 2 of 5
- RSS
- Straight 2 of 5
- Telepen
- UCC/EAN 128
- UPC-A
- UPC-E
- Scanner Type: Imager
- Scan Rate: 270 Scans/sec
- Interface Connectivity: Cordless
- Cordless Range: 30m
- Scan Pattern: Linear
- Depth of Field:
- 3.2 - 8.8"@6.5mils
- 2.8 - 9.8"@7.5mils
- 0.5 - 14"@13mils
- 0.5 - 18"@15mils
General Information
- Manufacturer:
- Product Line: IMAGETEAM
- Product Name: IMAGETEAM 3875 Extended Range Barcode Scanner
Physical Characteristics
- Weight: 18.5 oz - With Charge Pack
Agency Approvals
- Agency Approvals:
- FCC Part 15 Class B
- SOR 88/475 Class B
- EN 55022 (CISPR22) Class B
- EN 61000-3-2 & -3
- ETS 300 826
- EMC 89/336/EEC
- EN 50082-1:1992
- IEC 801-2:1991
- IEC 801-3:1984
- IEC 801-4:1988
- UL listed
- C22.2 No 950/UL 1950
- cUL Listed
- TUV Rheinland GS Licensed EN 60950 (IEC950)
- AS/NZS 3548
- FCC Part 15.249
- RSS 210
- ETS 300 328
Other
- Package Contents:
- IMAGETEAM 3875 Extended Range Barcode Scanner
- Keypad
- Display
- Charge Pack
- Quick Start Guide
Environmental Conditions
- Temperature:
- 0°C (32°F) to 50°C (122°F) Operating
- -30°C (-22°F) to 60°C (140°F) Storage
- Humidity: 5 to 95% Non-condensing
Warranty
- Manufacturer Warranty: 3 Year(s)
Recommended Accessories for Model: Hand Held ImageTeam 3875 Barcode Scanner
-
Hand Held ImageTeam 3870 Accessory
Part #: CLESS/NIMH/S | SKU: HAN4635NiMH charge pack - recharges by plugging into 110V outlet -
Hand Held ImageTeam 3875 Accessory
Part #: CLESS/UC2/S | SKU: HAN219152 bay charge strip, requires local PC (Part# IEC320) power cord. Recommended for use in Australia, New Zealand, and South Africa
