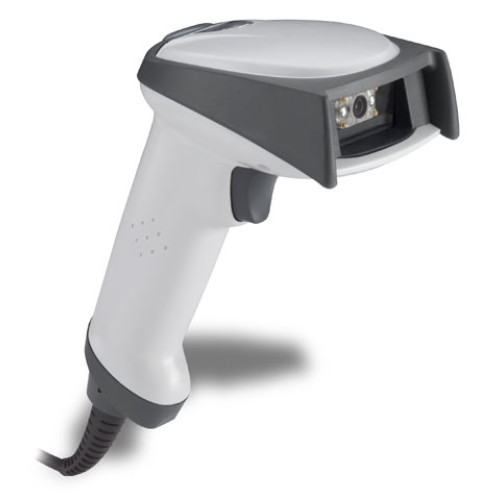

Hand Held ImageTeam 4600 Barcode Scanner

Hand Held ImageTeam 4600 Barcode Scanner
Part #: 4600SR051C-0F00 | SKU: HAN9545

The ImageTeam 4600 2D area imager from Hand-Held combines the versatility of area imaging with the speed and cost of linear scanning for a wide range of applications. Powered by Adaptus imaging, the ImageTeam 4600 2D is full featured, fast, and cost effective.

Hand Held ImageTeam 4600 Barcode Scanner

Part Details: ImageTeam 4600, commercial and retail area imager USB kit: Scanner, USB cable, & user's guide. Green aimer
Need a different version of the Hand Held ImageTeam 4600 Barcode Scanner? View all 10 configurations

Additional Information

Form Factor Handheld
Manufacturer AIDC Hand Held
Model Name ImageTeam 4600
Scanner Capability 1D
Hand Held ImageTeam 4600 Specs Hand Held ImageTeam 4600 Specs (pdf)

Technical Information

  • Form Factor: Handheld Scanner
  • Barcode Dimension: 1D/2D
  • Resolution: 8 mil(s)
  • Symbologies Supported:
    • PDF 417
    • Micro PDF417
    • MaxiCode
    • DataMatrix
    • QR Code
    • Aztec
    • Aztec Mesa
    • Code 49
    • EAN-UCC Composite
    • Codabar
    • Code 39
    • Interleaved 2 of 5
    • Code 93
    • Code 128
    • UPC
    • EAN
    • RSS
    • Coda Block
    • Postnet
    • Planet Code
    • British Post
    • Canadian Post
    • Japanese Post
    • KIX(Netherlands) Post
    • OCR-A
    • OCR-B
  • Scanner Type: Imager
  • Interface Options:
    • Keyboard Wedge
    • TTL level RS-232
    • IBM 468X/469X
    • Wand Emulation
    • USB
  • Interface Connectivity: Corded
  • Scan Pattern: Omnidirectional
  • Input Voltage Range: 4.5 to 12 V DC
  • Depth of Field:
    • 2.9 - 7"@8mils - Linear
    • 1.9 - 11.9"@13mils - UPC
    • 3.9 - 5.7"@6.6mils - PDF417

General Information

Physical Characteristics

  • Dimensions: 6.2" (157.48mm) x 3.2" (81.28mm) x 5.3" (134.62mm)
  • Weight: 6.2 oz

Agency Approvals

  • Agency Approvals:
    • FCC Class B
    • CE EMC Class B
    • CE Low Voltage Directive
    • Class 1
    • UL
    • cUL listed
    • TUV

Environmental Conditions

  • Temperature:
    • 0°C (32°F) to 50°C (122°F) Operating
    • -40°C (-40°F) to 60°C (140°F) Storage
  • Humidity: 0 to 95%

Other

  • Cables Included: USB

Warranty

  • Manufacturer Warranty: 5 Year(s)
