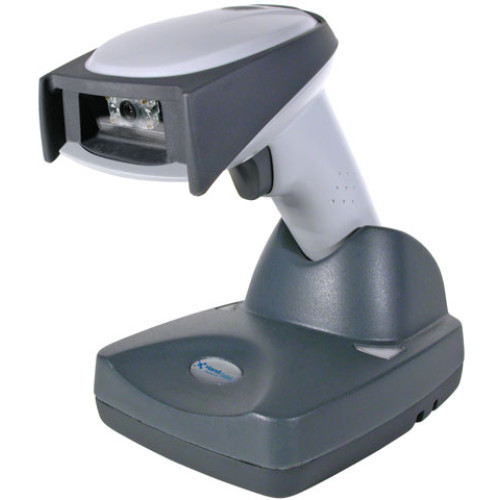

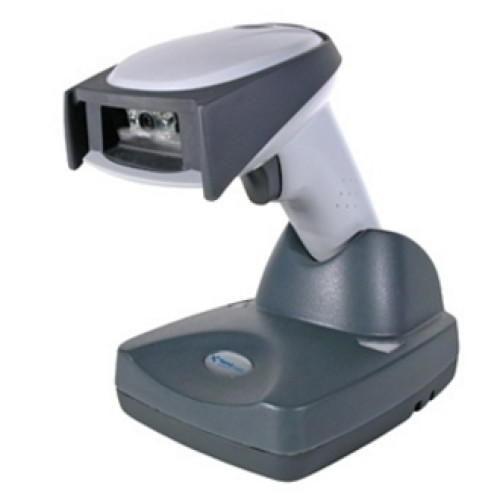

Hand Held ImageTeam 4620 Barcode Scanner
Part #: 4620SR0C1CB-0FA0 | SKU: HAN15127

The Hand-Held ImageTeam 4620 is the newest addition to the ImageTeam Series. Delivering all the durability and end-user benefits of the IT4600, the ImageTeam 4620 provides freedom of cordless operation in an easy to use platform. In a single mobile handheld solution, you'll be able to perform world-class 2D and PDF reading, as well as reading linear, matrix, postal, OCR, and dozens of other specialty codes. The Hand-Held ImageTeam 4620 is ideal for government, healthcare, retail, and commercial applications.

Hand Held ImageTeam 4620 Barcode Scanner

Part Details: ImageTeam 4620, Cordless 2D Area Imager (USB Kit, Cable, Base and Power supply). (Formerly listed as (Part# 4620SR0C1C-0FA0)

Additional Information

Connectivity Cordless
Manufacturer Hand Held
Model Name ImageTeam 4620
Scan Pattern Area
Scanner Capability 2D
Scanner Type Imager

Technical Information

  • Form Factor: Handheld Scanner
  • Barcode Dimension: 1D/2D
  • Symbologies Supported:
    • PDF 417
    • Micro PDF417
    • MaxiCode
    • DataMatrix
    • QR Code
    • Aztec
    • Aztec Mesas
    • Code 49
    • EAN-UCC Composite
    • Codabar
    • Code 39
    • Interleaved 2 of 5
    • Code 93
    • Code 128
    • UPC
    • EAN
    • RSS
    • Coda Block
    • Planet Code
    • Postnet
    • British Post
    • Canadian Post
    • Japanese Post
    • Kix
    • OCR-A
    • OCR-B
  • Scanner Type: Imager
  • Interface Options: USB
  • Interface Connectivity: Cordless
  • Cordless Range: 10m
  • Input Voltage Range: 4.5 to 12 V DC
  • Power Supply: Internal Battery
  • Depth of Field:
    • 2.9 - 7"@8mils - Linear
    • 1.9 - 11.9"@13mils - UPC
    • 3.9 - 5.7"@6.6mils - PDF417
    • 2.5 - 8.4"@10mils - PDF417
    • 3.1 - 5.9"@15mils - Data Matrix
    • 1.4 - 12.4"@35mils - MaxiCode
  • Battery Capacity: 4.2 V

General Information

  • Manufacturer: Hand Held Products
  • Product Line: IMAGETEAM
  • Product Name: IMAGETEAM 4620 SR Barcode Scanner

Physical Characteristics

  • Dimensions:
    • 6.5" (165.1mm) - Scanner
    • 3.1" (78.74mm) - Base
  • Weight:
    • 9 oz
    • 8.8 oz - Without Cable

Agency Approvals

  • Agency Approvals:
    • FCC Class B
    • CE EMC Class B
    • CE Low Voltage Directive
    • IEC60825-1 LED
    • Class 1
    • UL
    • cUL listed
Extended Details
