| Manufacturer AIDC | Hand Held |
|---|---|
| Model Name | ImageTeam 4800 |
| Scanner Capability | 1D |

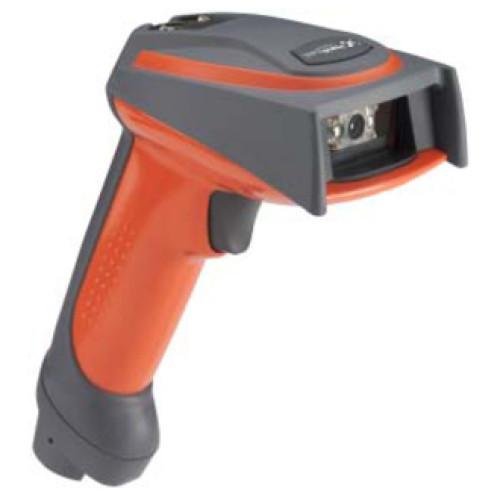

Hand Held ImageTeam 4800 Specs
Technical Information
- Form Factor: Handheld Scanner
- Barcode Dimension: 1D/2D
- Symbologies Supported:
- Matrix
- OCR
- Codabar
- Code 39
- PARAF
- Interleaved 2 of 5
- Code 2 of 5
- Code 93
- Code 11
- Code 128
- UPC
- EAN/JAN
- RSS
- Postnet
- Planet Code
- British Post
- China Post
- Canadian Post
- Japanese Post
- KIX(Netherlands) Post
- China Postal Code
- Scanner Type: Imager
- Interface Options:
- Keyboard Wedge
- TTL level Serial Wedge
- IBM 468X/469X
- Wand
- USB
- Interface Connectivity: Corded
- Input Voltage Range: 4.5 to 12 V DC
- Depth of Field:
- 2.9 - 7"@8mils - Linear
- 1.9 - 11.9"@13mils - UPC
- 1.4 - 12.4"@35mils - MaxiCode
General Information
- Manufacturer: Hand Held Products
- Product Line: IMAGETEAM
- Product Name: IMAGETEAM 4800 Industrial 2D Area Imager
Physical Characteristics
- Dimensions: 6.4" (162.56mm) x 3.2" (81.28mm) x 5.3" (134.62mm)
- Weight: 7.5 oz
Agency Approvals
- Agency Approvals:
- FCC Class B
- CE EMC Class B
- CE Low Voltage Directive
- IEC60825-1 LED
- Class 1
- UL
- cUL listed
- TÃ
