Additional Information
| Manufacturer AIDC | Hand Held |
|---|---|
| Model Name | ImageTeam 4800 |
| Scanner Capability | 1D |
| Scanner Type | Imager |

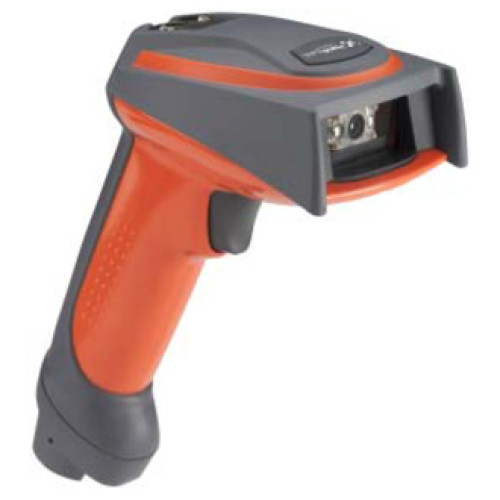

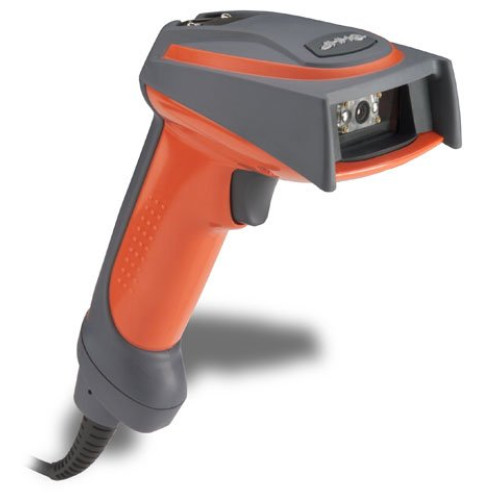

Hand Held ImageTeam 4800 Specs
Technical Information
- Form Factor: Handheld Scanner
- Barcode Dimension: 1D/2D
- Symbologies Supported:
- PDF 417
- Micro PDF-417
- MaxiCode
- DataMatrix
- QR Code
- Aztec
- Aztec Mesas
- Code 49
- EAN-UCC Composite
- Codabar
- Code 39
- PARAF
- Interleaved 2 of 5
- Code 2 of 5
- Code 11
- Code 93
- Code 128
- UPC
- EAN/JAN
- RSS
- Postnet
- Planet Code
- British Post
- China Post
- Canadian Post
- Japanese Post
- Kix
- OCR-A
- OCR-B
- China Postal Code
- Scanner Type: Imager
- Interface Options:
- Keyboard Wedge
- TTL level RS-232
- IBM 468X/469X
- Wand
- USB
- Interface Connectivity: Corded
- Input Voltage Range: 4.0 to 14 V DC
- Depth of Field:
- 3 - 7.1"@8.3mils - Linear
- 1.6 - 12.7"@13mils - UPC
- 4 - 5.7"@6.6mils - PDF417
- 2.6 - 8.5"@10mils - PDF417
- 1.8 - 9.7"@15mils - Data Matrix
- 1.5 - 12.5"@35mils - Maxi Code
General Information
- Manufacturer:
- Product Line: IMAGETEAM
- Product Name: IMAGETEAM 4800SR Barcode Scanner
Physical Characteristics
- Dimensions: 6.4" (162.56mm) x 3.2" (81.28mm) x 5.3" (134.62mm)
- Weight: 7.5 oz
Agency Approvals
- Agency Approvals:
- FCC Class B
- CE EMC Class B
- CE Low Voltage Directive
- IEC60825-1 LED
- Class 1
- UL
- cUL
- TÃ
