HID Turnstile Wiegand 314 Access Control Equipment
Part #: 6005BKB06 | SKU: HID209394

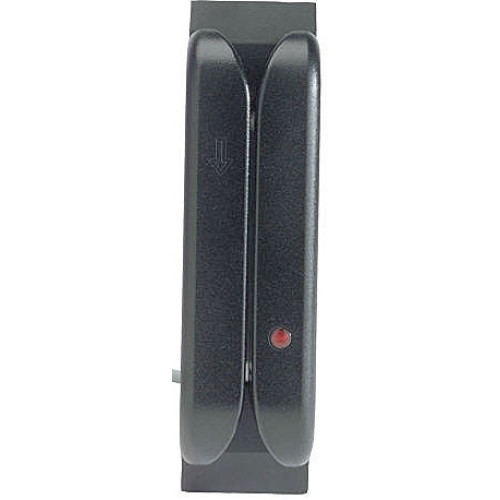

The Turnstile Wiegand 314 mounts either horizontally or vertically, making it ideal for high traffic applications. It is also capable of swipes in either direction and features a bi-color LED for status displays. The Turnstile Wiegand 314 is molded of rugged, high impact aluminum alloy to resist vandals and epoxy potted to seal out moisture for indoor or outdoor usage. The Turnstile Wiegand 314 is ideal for office lobbies or other areas when turnstile access is required.

HID Turnstile Wiegand 314 Access Control Equipment

Part Details: HID ProxPoint Plus 6005B Card Reader Access Device - Proximity - 3" Operating Range - Wiegand - 16 V DC

Need a different version of the HID Turnstile Wiegand 314 Access Control Equipment? View all 3 configurations

MSRP: $279.36 Price: $139.10

Additional Information

Manufacturer	HID
Model Name	Turnstile Wiegand 314

HID Turnstile Wiegand 314 Specs (pdf)

General Information

Product Type: Card Reader Access Device
Brand Name: HID
Manufacturer: HID Global Corporation
Product Model: 6005B
Product Name: ProxPoint Plus 6005B Card Reader Access Device

Technical Information

Identification Method: Proximity
Operating Range: 3"

Physical Characteristics

Height: 3.1"
Width: 1.7"
Depth: 0.7"
Color: Gray
Form Factor: Door-mountable
Material: Polycarbonate
Weight (Approximate): 2.65 oz

Interfaces/Ports

Interfaces/Ports: Wiegand

Other

Green Compliant: Yes
Green Compliance Certificate/Authority:
- RoHS
- WEEE
Package Contents:
- ProxPoint Plus 6005B Card Reader Access Device
- Multilingual Installation Manual
- ProxPoint Plus 6005B Card Reader Access Device
- Multilingual Installation Manual
Certifications & Standards:
- UL294
- cUL
- FCC
- IC
- CE
- C-tick
- SRRC
- MIC
- NCC
- MIC
- iDA

Controls/Indicators

Indicators & Controls:
- Beeper
- LED

Power Description

Input Voltage: 16 V DC
Input Current: 30 mA

Warranty

Limited Warranty: Lifetime

Extended Details

HID Turnstile Wiegand 314 Access Control Equipment Part #: 6005BKB06 | SKU: HID209394
