48593 Honeywell

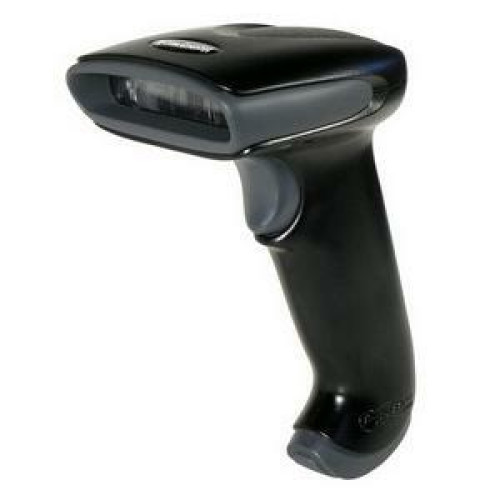

3800G04-SERKIT3E - Honeywell 3800g Bar code Scanner

3800g, UK RS-232 kit, 1D Linear Imager. Includes RS-232 cable and UK power supply. Color: White.
InStock
Free Shipping

Description

The 3800g is the newest member of the legendary 3800 family of linear imagers. The first linear imager to earn the Adaptus Imaging Technology brand, the new 3800g is powered by Adaptus 5.0, delivering breakthrough linear imaging performance and versatility. Fast, intuitive barcode reading across a range of high and low density codes, the 3800g quickly reads even damaged and poorly printed barcodes - all in a single device. The 3800g boasts USB, Serial (RS-232) and Keyboard Wedge (PS2) connection options.
  • Improved ability to read damaged or poorly printed barcodes.
  • Improved depth of field across a broad range of linear barcodes.
  • Excellent tolerance to lateral hand motion (4x faster) makes 3800g easy to use.
  • 270 scans per second makes barcode reading faster than ever.
  • Working range from .5 inches to 18 inches on 100 percent UPC/EAN symbols.

Additional Information

Manufacturer Honeywell
Scanner Type Imager
Scanner Capability 1D

Recommended Accessories

Recommended Warranties

Technical Information

  • Form Factor: Handheld Scanner
  • Barcode Dimension: 1D/2D
  • Resolution: 3 mil(s)
  • Symbologies Supported:
    • Codabar
    • Code 3 of 9 including PARAF
    • Interleaved 2 of 5
    • Industrial 2 of 5
    • Matrix 2 of 5
    • Code 11
    • Code 93
    • Code 128
    • UPC
    • EAN/JAN
    • China Postal Code
    • RSS
    • Sunrise 2005
    • GTIN Compliant
  • Scanner Type: Linear Imager
  • Scan Rate: 270 Decodes per second
  • Interface Options:
    • Keyboard Wedge
    • RS-232
    • USB
  • Interface Connectivity: Corded
  • Scan Pattern: Linear
  • Input Voltage: 5.5 V DC
  • Power Supply: External Included
  • Depth of Field:
    • 2 - 8"@5mils
    • 1.5 - 12"@7.5mils
    • 1 - 15"@10mils - 80% UPC
    • 0.5 - 18"@13mils - 100% UPC
    • 1 - 22"@15mils
    • 1 - 26"@20mils

General Information

Physical Characteristics

  • Dimensions: 5.9" (149.86mm) x 3.1" (78.74mm) x 4.4" (111.76mm)
  • Weight: 5.6 oz
  • Color: Ivory

Agency Approvals

  • Agency Approvals:
    • UL
    • cUL
    • RoHS
    • FCC Class B
    • CE EMC Class B
    • CE Low Voltage Directive
    • IEC60825-1 LED Safety: Class 1

Other

  • Package Contents:
    • 3800g Barcode Scanner
    • User Documentation
    • UK Power Cord
    • RS-232 Straight Cable
    • Power Supply
  • Cables Included: RS-232

Environmental Conditions

  • Temperature:
    • 32°F (0°C) to 122°F (50°C) Operating
    • -40°F (-40°C) to 140°F (60°C) Storage
  • Humidity: 0 to 95% Non-condensing

Warranty

  • Manufacturer Warranty: 5 Year(s)
