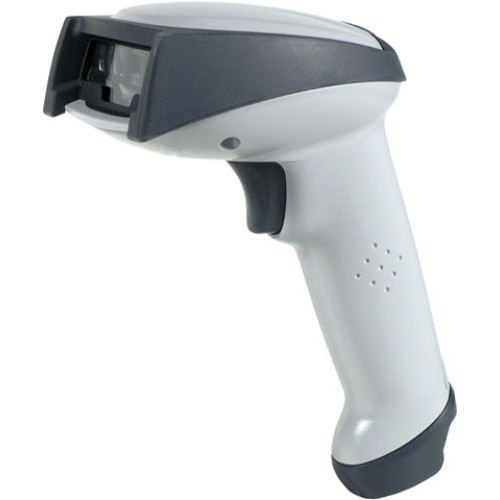

Honeywell 3820 Barcode Scanner
Part #: 3820SR0C0B-0IA0E | SKU: HON24900

Hand-Held's 3820 linear image scanner combines exclusive Adaptus Imaging Technology with Bluetooth wireless connectivity to provide class-leading performance and durability for retail and commercial cordless barcode reading. With a 33 foot (10m) working range and 24 inch (61cm) read-range, the 3820 enables the operators to have the freedom of movement required to quickly, safely, and ergonomically read barcode data. With no moving parts and a robust housing design, the 3820 will easily provide years of service in retail and commercial environments, creating a favourable total cost of ownership. And more, this solid-state, no-moving-parts design withstands more than fifty 6-foot (1.8m) drops to concrete.

Honeywell 3820 Barcode Scanner

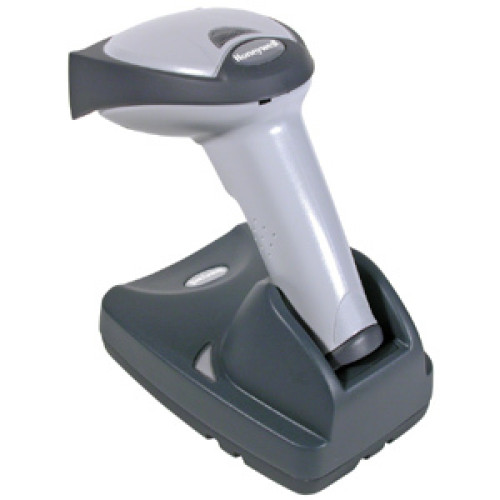

Part Details: PS/2 kit, White. Includes communication/charging base, PS/2 cable, US power supply and manual.

Additional Information

Color White
Communication Range less than 33 ft
Communication Type Bluetooth
Connection AT/PS2 Keyboard Wedge, Bluetooth
Connectivity Cordless
Form Factor Handheld
Included Cables AT/PS2 Keyboard Wedge
Manufacturer Honeywell
Model Name 3820
Product Condition New
Ruggedness General Purpose
Scan Pattern LED Beam
Scanner Capability 1D
Scanner Type Imager

Technical Information

  • Barcode Dimension: 1D
  • Scan Rate: 270 scan/s
  • Connectivity Technology: Wireless
  • Scanning Distance: 32.81 ft
  • Light Source: LED
  • Image Sensor: Linear
  • Barcode Symbology Supported:
    • China Post
    • Codabar
    • Codablock F
    • Code 2 of 5
    • Code 11
    • Code 16K
    • Code 39
    • Code 49
    • Code 128
    • EAN/JAN
    • IATA 2 of 5
    • Interleaved 2 of 5
    • Korea Post
    • Matrix 2 of 5
    • Coupon Code
    • MSI
    • Plessey Code
    • PosiCode
    • RSS-14
    • Telepen
    • Trioptic
    • UPC-A
    • UPC-E
    • China Post
    • Codabar
    • Codablock F
    • Code 2 of 5
    • Code 11
    • Code 16K
    • Code 39
    • Code 49
    • Code 128
    • EAN/JAN
    • IATA 2 of 5
    • Interleaved 2 of 5
    • Korea Post
    • Matrix 2 of 5
    • Coupon Code
    • MSI
    • Plessey Code
    • PosiCode
    • RSS-14
    • Telepen
    • Trioptic
    • UPC-A
    • UPC-E
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 7" - 6.60"@7.50 mil
    • 16.50" - 10"@13 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: 3800
  • Product Name: 3820 Barcode Reader

Physical Characteristics

  • Height: 6.2"
  • Width: 3.2"
  • Depth: 5.3"
  • Weight (Approximate): 9.20 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Package Contents:
    • 3820 Barcode Reader
    • Cordless Base
    • Straight KBW Cable
    • User Documentation
    • 3820 Barcode Reader
    • Cordless Base
    • Straight KBW Cable
    • User Documentation
  • Additional Information:
    • Supported Interfaces:
    • USB
    • TTL level RS-232
    • Wand Emulation
    • TTL level Serial Wedge
    • IBM 46XX

Network & Communication

  • Bluetooth: Yes

Power Description

  • Input Voltage: 12 V DC

Battery Information

  • Battery Chemistry: Lithium Ion (Li-Ion)
Extended Details
