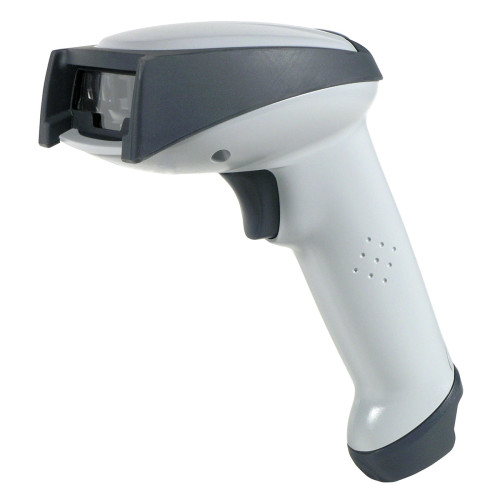

Honeywell 3820 Barcode Scanner
Part #: 3820SR0C0BE | SKU: HON24901

Hand-Held's 3820 linear image scanner combines exclusive Adaptus Imaging Technology with Bluetooth wireless connectivity to provide class-leading performance and durability for retail and commercial cordless barcode reading. With a 33 foot (10m) working range and 24 inch (61cm) read-range, the 3820 enables the operators to have the freedom of movement required to quickly, safely, and ergonomically read barcode data. With no moving parts and a robust housing design, the 3820 will easily provide years of service in retail and commercial environments, creating a favourable total cost of ownership. And more, this solid-state, no-moving-parts design withstands more than fifty 6-foot (1.8m) drops to concrete.

Honeywell 3820 Barcode Scanner

Part Details: Scanner Only, White. Cradle, cables, and accessories are not included and must be purchased separately. These include USB (Part# 42206161-01E), PS/2 (Part# 42206132-02E), or RS-232 Serial cables (Part# 42206422-01E), Power supply (Part# PS9U-21E) and either Charging/Communications (Part# 2020-5BE) or Charging-only cradles (Part# 2020-CB-AE).

Additional Information

Color White
Communication Range less than 33 ft
Communication Type Bluetooth
Connection Bluetooth
Connectivity Cordless
Form Factor Handheld
Included Cables Scanner Only - No Cable
Manufacturer Honeywell
Model Name 3820
Product Condition New
Ruggedness General Purpose
Scan Pattern Area
Scanner Capability 1D
Scanner Type Imager

Technical Information

  • Scan Pattern: Linear
  • Scan Rate: 270 scan/s
  • Connectivity Technology: Wireless
  • Light Source: LED
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • Linearcodes:
    • ABC Codabar (American Blood Commission)
    • BC412
    • China Post
    • Codabar
    • Code 11
    • Code 128
    • Code 32 Pharmaceutical (PARAF)
    • Code 39
    • Code 93 and 93i
    • EAN-13 (including Bookland EAN)
    • EAN-13 with Add-On
    • EAN-13 with Extended Coupon Code
    • EAN-8
    • EAN-8 with Add-On
    • GS1 Databar Expanded
    • GS1 Databar Limited
    • GS1 DataBar Omnidirectional
    • GS1 Databar Truncated
    • GS1-128
    • Interleaved 2 of 5
    • ISBT 128
    • ITF-14
    • Label Code
    • Matrix 2 of 5
    • MSI-Plessey
    • UK Plessey Code
    • Straight 2 of 5 IATA
    • Straight 2 of 5 Industrial
    • Telepen
    • Trioptic Code
    • UPC-A
    • UPC-A with Add-On
    • UPC-A with Extended Coupon Code
    • UPC-E
    • UPC-E with Add-On
    • UPC-E1 (obsolete)
    • Stacked Codes:
    • Codablock F
    • Code 49
    • GS1 Composite
    • GS1 Databar Expanded Stacked
    • GS1 Databar Stacked
    • GS1 Databar Stacked Omnidirectional
    • Linearcodes:
    • ABC Codabar (American Blood Commission)
    • BC412
    • China Post
    • Codabar
    • Code 11
    • Code 128
    • Code 32 Pharmaceutical (PARAF)
    • Code 39
    • Code 93 and 93i
    • EAN-13 (including Bookland EAN)
    • EAN-13 with Add-On
    • EAN-13 with Extended Coupon Code
    • EAN-8
    • EAN-8 with Add-On
    • GS1 Databar Expanded
    • GS1 Databar Limited
    • GS1 DataBar Omnidirectional
    • GS1 Databar Truncated
    • GS1-128
    • Interleaved 2 of 5
    • ISBT 128
    • ITF-14
    • Label Code
    • Matrix 2 of 5
    • MSI-Plessey
    • UK Plessey Code
    • Straight 2 of 5 IATA
    • Straight 2 of 5 Industrial
    • Telepen
    • Trioptic Code
    • UPC-A
    • UPC-A with Add-On
    • UPC-A with Extended Coupon Code
    • UPC-E
    • UPC-E with Add-On
    • UPC-E1 (obsolete)
    • Stacked Codes:
    • Codablock F
    • Code 49
    • GS1 Composite
    • GS1 Databar Expanded Stacked
    • GS1 Databar Stacked
    • GS1 Databar Stacked Omnidirectional
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 4" - 14"@7.50 mil
    • 2" - 18"@10 mil
    • 1" - 24"@13 mil
    • 1" - 36"@20 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: 3820
  • Product Name: Handheld 3820 Barcode Reader

Physical Characteristics

  • Height: 6.2"
  • Width: 3.5"
  • Depth: 6.5"
  • Weight (Approximate): 9.20 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS

Battery Information

  • Battery Chemistry: Lithium Ion (Li-Ion)

Network & Communication

  • Bluetooth: Yes

Warranty

  • Limited Warranty: 3 Year
Extended Details

Recommended Accessories for Model: Honeywell 3820 Barcode Scanner

  • Hand Held Cable
    Part #: 42206161-01E | SKU: HAN24928

    Cable, USB, black, Type A, 2.6m (8.5'), straight, host power
    Price: $19.82
    In Stock
  • Honeywell Cable
    Part #: 77900506E | SKU: HON27568

    Cable: power cord, power supply to AC outlet, straight, 1.8m (6.0ft) - US . Non-Cancelable/Non-Returnable.
    Price: $15.98
    In Stock
  • Honeywell Cable
    Part #: 42206132-02E | SKU: HON24926

    Cable: AT - PS/2 & compatibles, wedge Connector: Mini Din 6 PIN M/F Length: 9.2 ft. (2.8m), coiled
    MSRP: $27.48 Price: $25.10
    Global Supply Chain Constraints; Order now to be first when stock is available
  • Honeywell Cable
    Part #: 42206202-02E | SKU: HON27572

    Cable: USB, black, Type A, 2.8m (9.2'), coiled, host powered
    MSRP: $27.48 Price: $25.10
    In Stock
  • Hand Held Cradle/Charger
    Part #: 2020-5BE | SKU: HON27564

    Compact cordless charging base for 3820, 4620, 4820 and 4820I lithium batteries. Provides host interface and RF link between imager and host. Requires power supply (part #PS-090-2000D-NA).
    MSRP: $436.51 Price: $315.78
    Global Supply Chain Constraints; Order now to be first when stock is available

Recommended Warranties for Model: Honeywell 3820 Barcode Scanner

  • Honeywell Service Contract
    Part #: HHSCAN3-REPAIR | SKU: HON402771

    Flat Rate Repair fee for 1202, 1452g, 1602g, 1633, 1902, 1902h, 3820, 4236, 4820, and 9535. This charge is for any required repair not covered by warranty or comprehensive service.
    Price: $224.49
    Global Supply Chain Constraints; Order now to be first when stock is available
  • Honeywell Service Contract
    Part #: ISCAN2-REPAIR | SKU: HON402773

    Flat Rate Repair fee for 1911i, 1981i, 3820i and 4820i. This charge is for any required repair not covered by warranty or comprehensive service.
    Price: $257.34
    Global Supply Chain Constraints; Order now to be first when stock is available
  • Honeywell Service Contract
    Part #: RFACC2-REPAIR | SKU: HON402785

    Flat Rate Repair fee for a multi-slot charging cradle used for cordless scanners. This charge is for any required repair not covered by warranty or comprehensive service.
    Price: $131.41
    Global Supply Chain Constraints; Order now to be first when stock is available
  • Honeywell Service Contract
    Part #: RFACC1-REPAIR | SKU: HON402784

    Flat Rate Repair fee for a single slot charging cradle used for cordless scanners. This charge is for any required repair not covered by warranty or comprehensive service.
    Price: $104.03
    Global Supply Chain Constraints; Order now to be first when stock is available
  • Honeywell Service Contract
    Part #: SVC3820-EXW1R | SKU: HON499302

    SERVICE CONTRACT, 3820 & BASE, BASIC, 10-15 DAY TURN, 1 YEAR RENEWAL OR POSTSALES CONTRACT
    Price: $25.81
    Global Supply Chain Constraints; Order now to be first when stock is available
