Additional Information
| Display Resolution | 240 x 320 |
|---|---|
| IP Rating | IP54 |
| Interface Options | Bluetooth, Wi-Fi. |
| Keypad | 38 Keys |
| Manufacturer AIDC | Honeywell |
| Model Name | HT730 |
| Operating System | Windows CE 6.0 |
| Scanner Capability | 2D |
| Style | Phone-size |

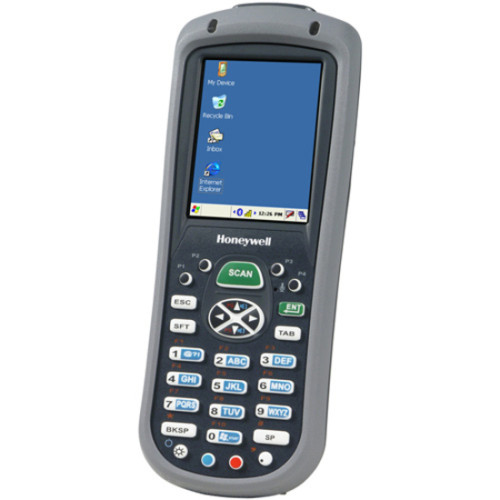

Honeywell HT730 Specs
Technical Information
- Scanner Range: Standard Range
- Connectivity Technology: Wireless
- Image Sensor: Imager
- Electrostatic Discharge (ESD):
- +/-12 kV DC Air Discharge
- +/-8 kV DC Direct Discharge
- Drop Specification: 60" To Concrete
- Barcode Symbology Supported:
- Codabar
- Code 3 of 9
- Code 11
- Code 32
- Pharmaceutical (PARAF)
- Code 93
- Code 128
- EAN with Add-On
- EAN with Extended Coupon Code
- EAN-8
- EAN-13
- GS1-128
- GS1 Databar
- Interleaved 2 or 5
- ISBT 128
- Matrix 2 of 5
- MSI
- Plessey
- PosiCode
- Straight 2 of 5 IATA
- Straight 2 of 5 Industrial
- Telepen
- Trioptic Code
- UPC
- UPC-A
- UPC-E
- Aztec
- Codablock
- Code 16K
- Code 49
- Composite
- Data Matrix
- GS1 Databar
- MaxiCode
- Micro PDF
- OCR
- PDF417
- QR Code
- Aztec Mesa
- Codablock F
- EAN·UCC
- GS1 Databar-14
- OCR-A
- OCR-B
- OCR-US Money Font
- Australian Post
- British Post
- Canadian Post
- China Post
- Japanese Post
- KIX (Netherlands) Post
- Korea Post
- Planet Code
General Information
- Product Type: Handheld Terminal
- Brand Name: Honeywell
- Manufacturer: Honeywell International, Inc
- Product Model: 7600

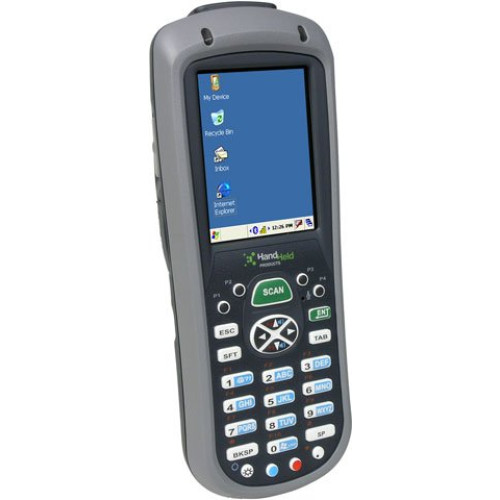

- Product Name: Dolphin 7600 Mobile Computer
- Product Line: Dolphin
Physical Characteristics
- Height: 7"
- Width: 2.7"
- Depth: 1.7"
- Weight (Approximate): 11.70 oz
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority:
- RoHS
- WEEE
- Package Contents:
- Dolphin 7600 Mobile Computer
- Battery
- Dolphin 7600 Mobile Computer
- Battery
- Certifications & Standards:
- IP54
- CE
- UL
- FCC
- Safety:
- cUL 60950
- NOM
- EN60950
- BSMI CN14336
- CCC GB4943
- PSB
- SIRIM
- EMC:
- FCC Part 15 Class B
- ICES-003
- EN301 489-1
- EN301 489-17
- EN55022
- EN55024
- BSMI CNS13438
- CCC GB9254
- MIC
- AS/NZS 3548
- FCC Parts 22H & 24H
- FCC SAR OET 65
- EN301511
- RSS-132/133
- Radio:
- FCC 15.247
- RSS-210
- COFE TEL
- EN300 328-1
- EN300 328-2
- SRRC ETS 300 328
- IDA
- SIRIM
- MIC
- ARIB STD-T33 & T66
- AS/NZS 4771
- Additional Information:
- Installed Applications:
- Honeywell Power Tools
- ITScriptNet Ready-To-Go Applications
Network & Communication
- Bluetooth: Yes
- Wireless Security:
- WEP
- WPA
- WPA2
- EAP-TLS
- TTLS
- LEAP
- PEAP
- WiFi (WPA2)
- Cisco
Display & Graphics
- Display Screen Type: LCD
- Screen Mode: QVGA
- Screen Size: 2.8"
- Display Color: Color
- Screen Resolution: 240 x 320
Memory
- Flash Memory: 128 MB
- Standard Memory: 128 MB
- Memory Card Slot: Yes
- Memory Card Supported: MultiMediaCard (MMC)
Battery Information
- Battery Capacity: 2200 mAh
- Battery Included: Yes
- Battery Chemistry: Lithium Ion (Li-Ion)
Processor & Chipset
- Processor Manufacturer: Samsung
- Processor Speed: 400 MHz
Keyboard/Keypad
- Keyboard Type: Alphanumeric
- Number of Keys: 38
Software
- Operating System: Windows Mobile 6.0
Warranty
- Limited Warranty: 1 Year
Touchscreen Information
- Touchscreen: Yes
