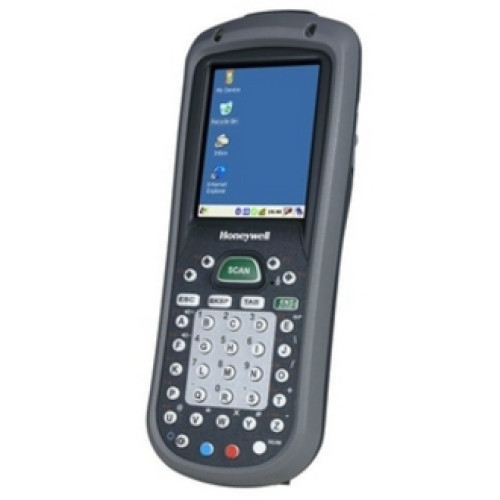

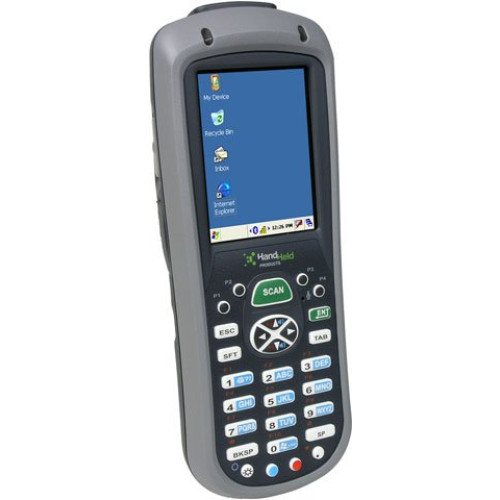

Honeywell Dolphin 7600 Mobile Computer
Part #: 7600LP-122-21EE | SKU: HON45889

The Dolphin 7600 is Hand Held Products' most compact mobile computer, offering a range of features and functionality superior to other devices in its class. Its Microsoft Windows CE 5.0 operating system provides a powerful, industry standard platform for developers and users, simplifying integration and ensuring intuitive operation. The integrated 802.11b/g WLAN provides workers continuous real-time network access to mission critical information throughout the enterprise. Its 2.8" VGA color display provides easy viewing and touch screen use. Adaptus Imaging Technology 5.0 reads linear and 2D barcodes and captures digital images, giving you the ability to process and manage more data with a single device than ever before.

Honeywell Dolphin 7600 Mobile Computer

Part Details: WLAN and WPAN (802.11b/g and Bluetooth) / 5300SR Imager with high-vis aiming pattern / 38 key / 128MB RAM x 128MB Flash / Windows CE 5.0

Additional Information

Display Resolution 240 x 320
IP Rating IP54
Manufacturer Honeywell
Model Name Dolphin 7600
Network Connectivity Bluetooth
Scanner Type Imager
Style Phone-size

Technical Information

  • Scanner Range: Standard Range
  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-12 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
  • Drop Specification: 47.24" To Concrete
  • Barcode Symbology Supported:
    • Codabar
    • Code 3 of 9
    • Code 11
    • Code 32 Pharmaceutical (PARAF)
    • Code 128
    • Code 93
    • EAN Add-ons
    • EAN Extensions
    • Coupon Code
    • EAN-13
    • Interleaved 2 of 5
    • Matrix 2 of 5
    • Plessey
    • PosiCode
    • RSS
    • Straight 2 of 5 IATA
    • Straight 2 of 5 Industrial
    • Telepen
    • Trioptic Code
    • UCC/EAN 128
    • UPC
    • UPC-A
    • Aztec
    • Code 16K
    • Composite
    • DataMatrix
    • MaxiCode
    • OCR
    • PDF 417
    • QR Code
    • Aztec Mesa
    • Codablock F
    • RSS-14
    • UCC/EAN
    • OCR-A
    • OCR-B
    • Postnet
    • Australian Post
    • British Post
    • Canadian Post
    • China Post
    • Japanese Post
    • KIX(Netherlands) Post
    • Korea Post
    • Planet Code

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: 7600
  • Product Name: Dolphin 7600 Mobile Computer
  • Product Line: Dolphin

Physical Characteristics

  • Width: 2.7"
  • Depth: 1.7"
  • Length: 7"
  • Weight (Approximate): 11.70 oz

Other

  • Certifications & Standards:
    • Safety:
    • cUL 60950
    • NOM
    • EN60950
    • BSMI CN14336
    • CCC GB4943
    • PSB
    • SIRIM
    • EMC:
    • FCC Part 15 Class B
    • ICES-003
    • EN 301 489-1
    • EN 301 489-17
    • EN55022
    • EN55024
    • BSMI CNS13438
    • CCC GB9254
    • MIC
    • AS/NZS 3548
    • Radio:
    • FCC 15.247
    • RSS-210
    • COFETEL
    • EN 300 328-1
    • EN 300 328-2
    • SRRC ETS 300 328
    • IDA
    • SIRIM
    • MIC
    • ARIB STD-T33 & T66
    • AS/NZS 4771

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Wireless LAN Standard: IEEE 802.11b/g
  • Wireless Security:
    • WEP
    • WPA Personal
    • WPA Enterprise
    • WPA2 Personal
    • WPA2 Enterprise
    • EAP-TLS
    • TTLS
    • LEAP
    • PEAP
    • WiFi

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: QVGA
  • Screen Size: 2.8"
  • Display Color: Color
  • Screen Resolution: 240 x 320

Processor & Chipset

  • Processor Manufacturer: Samsung
  • Processor Speed: 400 MHz

Keyboard/Keypad

  • Keyboard Type: Alphanumeric
  • Number of Keys: 38

Memory

  • Flash Memory: 128 MB
  • Standard Memory: 128 MB

Battery Information

  • Battery Capacity: 2200 mAh
  • Battery Chemistry: Lithium Ion (Li-Ion)

Software

  • Operating System: Windows CE .NET 5.0

Touchscreen Information

  • Touchscreen: Yes
