15138 Honeywell

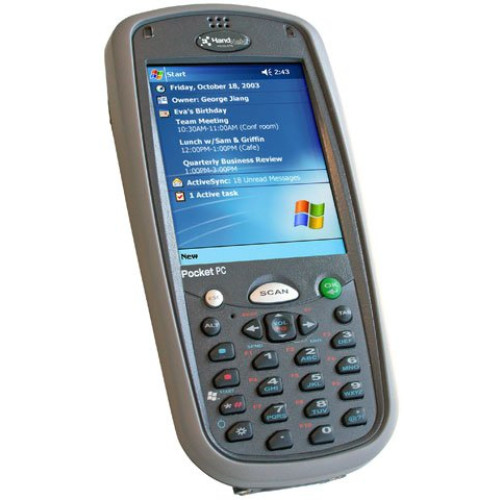

790020P-421-C20 - Honeywell Dolphin 7900 Handheld Computer

Dolphin 7900, 802.11b, Bluetooth EMEA Standard Range Imager, 36 key, Standard Memory. Order cradle, cables & power supply separately. See accessories.
InStock
Free Shipping

Description

Designed to provide seamless data and voice connectivity for you and your mobile workers, the Honeywell Dolphin 7900 features Microsoft Windows Mobile, integrated Wireless Full Area Networking (WFAN) with co-located GSM/GPRS, 802.11b. Bluetooth radios provide real-time voice and data access anytime, anywhere while ensuring data accuracy and security. And, powered by Hand Held Products' exclusive Adaptus Imaging Technology, the Honeywell Dolphin 7900 can be used by the mobile worker to quickly read virtually all bar codes, capture signatures, take photos of damaged goods, and archive and retrieve data quickly.
  • 25- and 36 key Keyboard Options: Numeric or full alpha keypad solutions to satisfy your data entry requirements.
  • 3.8 inch Backlit Color Display with Industrial Touch Screen: Enhanced data viewing and impact resistance.
  • Adaptus Imaging Technology: Instant point-and-shoot barcode scanning (1D and 2D), signature and digital image capture.
  • Ergonomic Design: Compact, lightweight design facilitates comfortable, single-handed data collection.
  • High Capacity Lithium Ion Battery with Advanced Power Management System: Longer operation time with wireless communications and scan-intensive applications.
  • Intel X-Scale 400 MHz Processor: Faster processing of data collection applications and image processing.
  • Microsoft Windows Mobile Second Edition Software: User-friendly, industry-standard platform for both developers and users.
  • Mini Secure Digital (Mini-SD) User-Accessible Memory Interface: Provides the option of installing additional memory for secure application data storage.
  • Rugged, IP64 Sealed Construction: Operates in harsh environments, withstands rough treatment, and ensures years of reliable service.
  • Wireless Full Area Networking: Integrated WAN, LAN, and PAN for real-time data exchange and voice communications to maximize productivity.

Additional Information

RAM Memory 64 MB
Operating System Windows Mobile 2003 SE for Pocket PC
Style Phone-size
Network Connectivity Bluetooth
Display Resolution 240 x 320
Scanner Type Imager
Data Collection Type Batch
Manufacturer Honeywell

Technical Information

  • Operating System: Windows Mobile 2003 2nd Edition
  • Processor: Intel XScale 400MHz
  • Data Collection Type: Wireless
  • Wireless Security:
    • WEP 128 bit
    • PEAP
    • EAP/TLS
    • AEGIS Client
    • LEAP
    • MD5
    • TLS
    • TTLS
    • PSK
    • 802.1x
    • TKIP
  • Scanner Type: Imager Standard Range
  • Symbologies Supported:
    • Australian Post
    • Aztec
    • Aztec Mesa
    • British Post
    • Canadian Post
    • China Post
    • Codabar
    • Codablock F
    • Code 11
    • Code 128
    • Code 16K
    • Code 3 of 9
    • PARAF
    • Code 93
    • Composite Code
    • DataMatrix
    • EAN Add-ons
    • EAN with Extended Coupon Code
    • UCC/EAN
    • EAN-13
    • Interleaved 2 of 5
    • Japanese Post
    • KIX(Netherlands) Post
    • Korea Post
    • Matrix 2 of 5
    • MaxiCode
    • OCR
    • OCR-A
    • OCR-B
    • PDF 417
    • Planet Code
    • Plessey Code
    • PosiCode
    • Postnet
    • QR Code
    • RSS
    • RSS-14
    • IATA 2 of 5
    • Industrial 2 of 5
    • Telepen
    • UCC/EAN 128
    • UPC
    • UPC-A
    • Planet Code

General Information

  • Manufacturer: Hand Held Products
  • Product Line: Dolphin
  • Product Name: Dolphin 7900 Mobile Computer

Physical Characteristics

  • Display: 3.8" Color QVGA - Touch Screen TFT LCD
  • Display Resolution: 240 x 320 Portrait Mode
  • User Accessible Expansion Slot: Mini-SD (For Memory Expansion Only)
  • Keyboard: 36 Key Alphanumeric Included
  • Battery Capacity: 14.8 Wh
  • Battery Type: Lithium Ion - Included
  • Dimensions: 3.5" (89mm) x 7.3" (185mm) x 1.7" (43mm)
  • Weight: 19 oz - configuration dependent

Other

  • Additional Information:
    • ETSI
    • USB
    • RS232
    • IrDA
    • Integrated Speaker
    • Integrated Microphone
    • Headset Jack
  • Package Contents:
    • Dolphin 7900 mobile computer
    • Main battery pack (7.4v Li-ion)
    • Microsoft Companion CD
    • Dolphin 7900 Quick Start Guide

Agency Approvals

  • Agency Approvals:
    • FCC Part 15.247
    • RSS 210
    • FCC Part 24
    • RSS 133
    • EN 301 511: 2000
    • EN 301 489-1 (2002-08)
    • EN 301 489-7 (2002-08)
    • EN 60950:2000
    • EN 50361:2001

Wireless Data Communications

  • Network Connectivity:
    • WLAN 802.11b ETSI Regulatory Domain
    • WPAN Bluetooth
  • Maximum RF Data Rate Supported: 11 Mbps
  • Output Power: 100mW
  • Antenna Connectors: Internal
  • Frequency Band/Bandwidth: 2.4GHz to 2.5GHz

Environmental Conditions

  • Environmental Sealing: IP64
  • Temperature:
    • -10°C (14°F) to 50°C (122°F) Operating
    • -20°C (-4°F) to 70°C (158°F) Storage
  • Humidity: 95% Non-condensing
  • Electrostatic Discharge (ESD): 15kV Contact Discharge
  • Drop Spec: 5' To Concrete

Memory

  • RAM Memory: 64MB
  • Flash Memory: 64MB

Warranty

  • Manufacturer Warranty: 2 Year(s) Limited
  • Warranty Details: 1 Year Warranty on Touch Screen
