4740 Honeywell

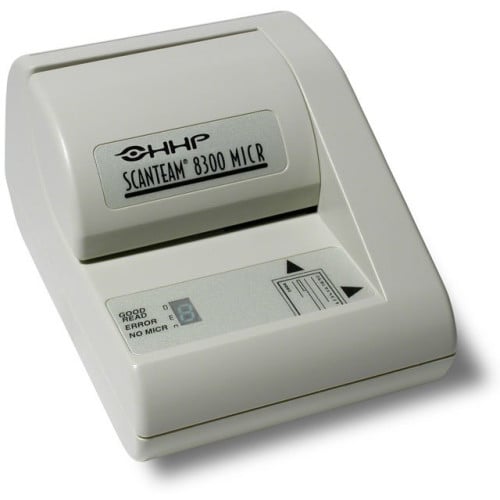

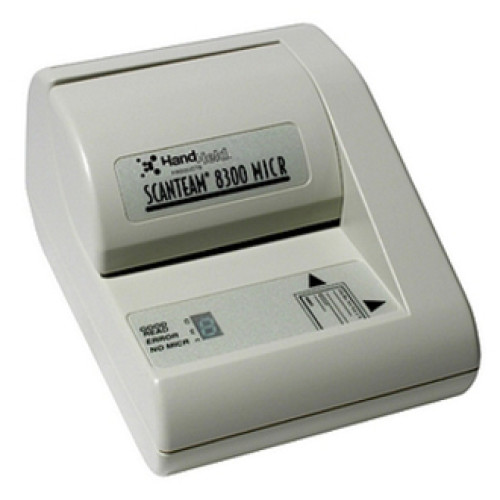

Honeywell ScanTeam ST 8300 MICR Check Scanner Part # 8300-4112

The ScanTeam ST 8300 product line is a family of check reader products with various interface and decoding capabilities. All versions utilize a magnetic MICR read head and include a host system interface port. Versions of the product are available which support the direct connection to POS terminal I-O Ports integrated bar coded document reading numerous keyboard wedge interfaces handheld scanner decoding integrated magnetic stripe reader and auxiliary RS-232 I-O ports. All ScanTeam ST 8300 products contain FLASH memory which allows for easy firmware upgrades in the field without the need to disassemble the product. The ScanTeam ST 8300 products provide multiple options in meeting the data capture needs of retail and financial transaction systems. The ScanTeam ST 8300 may be ordered with options which provide an integrated triple track mag stripe reader a bar code scanner port and two RS-232 ports for future peripherals such as PIN Pads or a Signature Capture Pad. The ScanTeam ST 8300 is compatible with hundreds of POS and teller systems through the built in interface-wedge controller. The ScanTeam ST 8300 typically operates from +5 volt or +12 volt power from the host device and does not require external power pack or connector blocks.

8300-4112 - Honeywell ScanTeam ST 8300 MICR Check Reader

Part Details: ScanTeam ST 8300, RS-232 & Keyboard wedge interface, with auxilliary RS-232 port, auxilliary scanner port, and track 1 & 2 magnetic stripe reader. Order cables & power supply separately. See accessories.
InStock

Additional Information

Manufacturer Honeywell
Product Condition New

Technical Information

  • MICR Font Supported:
    • CMC-7
    • E13-B
  • Magnetic Stripe Track Configuration: Dual Track
  • Magnetic Stripe Track Number:
    • Track 1
    • Track 2

General Information

  • Product Type: Check Reader
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: ST8300
  • Product Name: ST8300 MICR Check Reader
  • Product Line: SCANTEAM

Physical Characteristics

  • Height: 3.4"
  • Width: 4.7"
  • Depth: 5.8"
  • Color: White
  • Weight (Approximate): 1.25 lb

Interfaces/Ports

  • Interfaces/Ports:
    • Keyboard Wedge
    • RS-232 Serial

Other

  • Certifications & Standards:
    • FCC Class A
    • CE
    • EMC 89/336/EEC
  • Additional Information:
    • Scanner Port: Laser/CCD/Wand
    • IBM 4683 POS Terminal Interface

Environmental Conditions

  • Humidity: 95% Non-condensing
  • Temperature:
    • 32°F (0°C) to 122°F (50°C) Operating
    • -0.4°F (-18°C) to 140°F (60°C) Storage

Power Description

  • Input Voltage Range: 7 V DC to 13.5 V DC
  • Input Voltage: 5 V DC

Warranty

  • Limited Warranty: 2 Year
