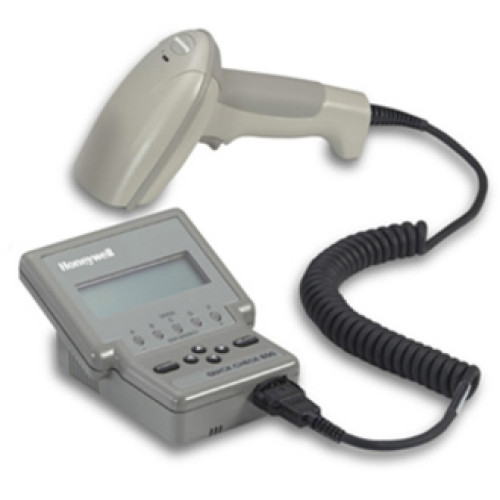

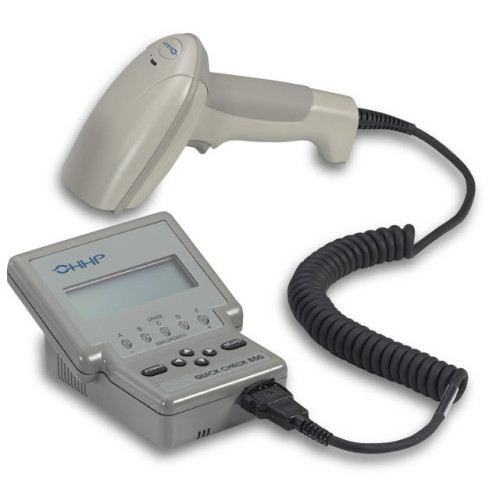

Honeywell Quick Check 800 Series Barcode Verifier
Part #: QC8501 | SKU: HON3090

Barcode symbol reproduction accuracy is critical throughout the distribution supply chain, especially in an era of stringent compliance programs. With Hand-Held verification products you can be assured that you can produce, receive, and use barcodes that meet these tough requirements with Quick Check verifiers the Quick Check 800 Series verifiers analyze barcode quality against traditional quality parameters and ANSI/CEN/ISO barcode print quality guidelines. Each unit includes all standard symbologies and is manufactured and traceable to N.I.S.T. (National Institute of Standards and Technology) standards developed by the U.C.C. (Uniform Code Council) and AIM (Automatic Identification Manufacturers).

Honeywell Quick Check 800 Series Barcode Verifier

Part Details: Verifies 7.5 mil or greater SCC, UCC/EAN, UPC, AIAG, LOGMARS, HIBCC, SISAC, CTIA/ABCD, Bookland & CCBBA codes. Includes batteries, custom 3800VE imager & power supply/charger.

Need a different version of the Honeywell Quick Check 800 Series Barcode Verifier? View all 10 configurations

Additional Information

Manufacturer AIDC	Honeywell
Model Name	Quick Check 800 Series

Honeywell Quick Check 800 Series Specs (pdf)

General Information

Product Type: Barcode Verifier
Brand Name: Honeywell
Manufacturer: Honeywell International, Inc
Product Model: 800
Product Name: Hand Held Quick Check 800 Barcode Verifier
Product Line: Quick Check

Physical Characteristics

Height: 2.8"
Width: 4.3"
Depth: 5.3"
Weight (Approximate): 16 oz

Other

Certifications & Standards:
- FCC Class A
- CE Certified
Additional Information:
- Test ISO/IEC and Traditional Quality Parameters
- Menu-Driven for Easy Use
- LCD and LEDs Display Test Results Instantly
- Command Codes for Instant Programming
- QC3800VE for simple point and shoot testing
- Full ISO / IEC when using optional Mouse and Pen wand
- Keypad: 6-button, power, select (4 arrows)
- Operating Temperature: 32° to 122° F (0° to 50° C)
- Storage Temperature: 14° to 158° F (-20° to 70°C)
- Relative Humidity: 5% to 95% Non-condensing
- Test Aperture:
- Mouse: 3, 5, 6, 10, or 20 mil
- Pen: 5, 6, 10 mil
- Linear Imager: min. "X" dimension 5 mil Beam width: 5.25 in. (13.3cm)
- Symbologies:
- EAN/UPC with addenda
- Code 39 (1-49 characters)
- Interleaved 2 of 5 (2-78 characters)
- Codabar
- Code 128 (1-70 characters)
- MSI (1-50 characters)
- Code 16K (individual rows)
- Code 49 (individual rows)
- Code 93
- Code 11
- Regular 2 of 5 (Discrete/Industrial 2 of 5)
- IATA 2 of 5 (Straight 2 of 5)
- Database look-up feature

Extended Details

Recommended Accessories for Model: Honeywell Quick Check 800 Series Barcode Verifier

Honeywell Quick Check Battery
Part #: QCB | SKU: HON3096

4 pack of rechargeable batteries for QC600 & QC800
Honeywell Quick Check Accessory
Part #: QCPC | SKU: HON3106

Quick CheckTM Printer I/F Cable for QC610/810 Series to QCP, QCHSP
Honeywell Quick Check Spare Parts
Part #: 200069 | SKU: HON22566

Quick Check spindle
Honeywell Quick Check Barcode Scanner
Part #: QC3800V | SKU: HON22718

Scanner only, For QC800 Verifiers only
Honeywell Quick Check Accessory
Part #: QCDB09F | SKU: HON25008

Interface cable, DB-9 connector, for the QC600-QC800 Verifiers to PC
