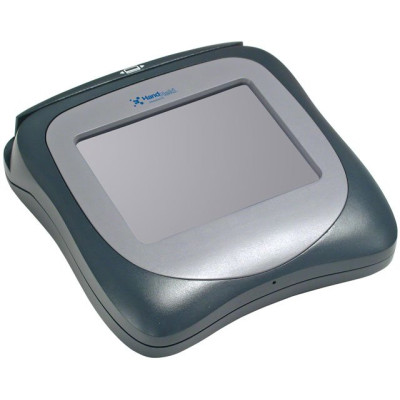

Honeywell TT8500 Signature Pad

Honeywell introduces the revolutionary TT8500. This state-of -the-art terminal offers unrivaled power, versatility, and value. POS payments, EBT, signature capture, and in-lane, targeted communications are enabled by the TT8500's fast processor and proven development environment. The Honeywell TT8500 features 4 MB of flash memory, a three-track MSR slot and a PoweredUSB port.

Discontinued - Need Assistance

See all options

Specs & Info
All Options

Honeywell TT8500 Specs (pdf)

Transaction Team 8500 Specifications

Display/Signature Window
Signature Window: Resistive, transparent, pressure-sensitive touch screen

LCD Size: 4.45 x 3.3 in. (11.3 x 8.4 cm) (Active area)

LCD Resolution: 320 x 240 dot, 16 bit color (optional)

Touch Pad Resolution: 903 x 1238 ppi

Communications

RS-232: 4800 to 115.2 Kbps

RS-232 Pass-Through: Using Aux. Y cable with AC power adapter

RS-485: Using 9A, 9B, 4B connectors (no power adapter)

PC USB: AC power adapter required

USB Hub Host: 5V DC power pass-through, support for USB 1.1 and 2.0 for up to 16 devices (optional port)

IBM Retail USB: SurePOS compatible (no power adapter)

Ethernet 10/100 BaseT: Optional port. Cable not supplied.

Memory

Flash: 4MB to 16MB
SDRAM: 16MB to 64 MB

Dimensions (reference)

Width: 7.3 in. (18.5 cm)

Depth: 7.56 in. (19.2 cm)

Height: 2 in. (5.1 cm)

Weight: 2 lb. (.9 kg)

Power Requirements

Current Draw: 700 mA @ 12VDC
Source: 120V AC adapter or powered host terminal port

Optional Software Development Kit

Operating Systems: Microsoft

Extended Details

Refine Your Options

Honeywell TT8500 Signature Pad
Part #: TT8500-MNE | SKU: HON38332

Monochrome LCD and 3-Track MSR
Honeywell TT8500 Signature Pad
Part #: TT8501-CEUE | SKU: HON60514

Transaction Team 8501 Signature Capture Terminal (Color, LCD, PCI Compliant, TRN TERM, 3-Track MSR and Ethernet)
Honeywell TT8500 Signature Pad
Part #: TT8501P-CEUEKITE | SKU: HON63111

Transaction Team 8501 Signature Capture Terminal (Color, LCD, PCI Compliant, Power Supply, USB Cable and ROHS)
Honeywell TT8500 Signature Pad
Part #: TT8501P-MEUE | SKU: HON70750

Transaction Team 8501 Signature Capture Terminal (Monochrome, LCD, PCI Compliant, TRN TERM, 3-Track MSR and Ethernet)

Recommended Accessories for Model: Honeywell TT8500 Signature Pad

Honeywell TT8500 Signature Pad
Part #: 100008100 | SKU: HON286934

SCREEN PROTECTOR, IMPROVED TT8501 PCI
Honeywell TT8500 Scanner Accessories
Part #: 300000830 | SKU: HON31708

Tethered Stylus Holder for the TT8500; with Screw and 2-Sided Tape
Honeywell TT8500 Accessory
Part #: 100000583 | SKU: HON21418

Replaceable Screen Protector Overlay - Use With Bezel Tt8500
Honeywell TT8500 Accessory
Part #: 42206379-01E | SKU: HON42360

Cable (RS232) for the TT8500. <b>This is a custom part, for the standard cable please see (Part# 42206251-01E).</b>
