__($mfg->name) EasyCoder C4 Label, Ticket & Tag Printer
- Connect & Print accessories for easy set up - nothing else to buy
- Easy to set up, use and own Animated instruction sequences on CD, and easy-to-read QuickGuide ensures minimal time to first printed label
- Standard Interfaces are Serial, USB, and Centronics
- New, unique double clam shell design offers easy drop-in loading of paper and ribbon supplies
- Dual print technology ensures ability to print on most label types
- Self-strip with label taken sensor is standard
- Choice of 203 or 300 dpi print resolution
- Easily replaceable QuickMount™ printhead - no tools required
The EasyCoder® C4 is the perfect printer for the inexperienced or busy user. Intermec’s Connect & Print concept makes setting up and printing a quick and easy task.
Everything is included in the low price: software, drivers, cables, and labels. The printer comes complete with LabelShop® START—Intermec’s label design software—and InterDriver™ Windows™ Driver. This enables the user to easily print bar code labels from Windows applications, including Microsoft® Office™ and other popular programs.
The printer’s compact size, sturdiness, and silent operation make it ideal for a variety of applications.
The __($mfg->name) EasyCoder C4 prints faster and with better quality than most competing printers in its price range, and includes dual print technology for printing on various label types; both Direct Thermal and Thermal Transfer.
The unique double clam shell design makes it extremely easy to load supplies with the simple drop-in method. Label and ribbon changes can be done in no time.
The RS-232 Serial, USB, and Centronics interfaces are standard to facilitate printer connections. Firmware can easily be upgraded via the interface connection or by using the Flash memory cartridge.
The EasyCoder C4 printer comes with standard features like Self-Strip with Label-Taken sensor and Black Mark sensor. Among its optional features are:
- Flash/SRAM memory cartridges
- 300 dpi
- Cutter unit
- External keyboard
The __($mfg->name) EasyCoder C4 printer is compatible with EasyCoder 91 and EasyCoder 7422 applications, so adding the new Easy-Coder C4 is simple.
With all its built-in benefits, the EasyCoder C4 is really a smart choice that offers excellent value for an affordable price.
General A very compact Direct Thermal or Thermal Transfer/Direct Thermal printer for self-adhesive labels, non-adhesive tags, or continuous paper strip. Tear-off or Self-Strip operation with Label-Taken Sensor. Internal paper roll or external fan-fold supply. Black Mark Sensor.
Model EasyCoder C4 Direct Thermal EasyCoder C4 Thermal Transfer/ Direct Thermal
Physical Characteristics Length: 257 mm (10.11 in) Height: 167 mm (6.58 in) Width: 230 mm (9.06 in) Weight: 2.3 kg (5.07 lbs)
Print Specifications Label Size – Max. Width: 118 mm (4.65 in) Max. Length: Standard:
- 203 dpi - 472.5 mm (18.6 in)
- 300 dpi - 220 mm (8.6 in)
Optional expanded memory:
- 203 dpi - 781 mm (30.74 in)
- 300 dpi - 360 mm (14.17 in)
Print Direction: Prints text, bar codes and graphics in all four directions
Print Resolution: 8 dots/mm (203 dpi) or 12 dots/mm (300 dpi)
Print Width:
- 203 dpi - max. 104 mm (4.1 in)
- 300 dpi - max. 102 mm (4.02 in)
__($mfg->name) EasyCoder C4 Printing Speed: Selectable, 30, 40, 50 or 76 mm/sec (1.2, 1.6, 2 or 3 in/sec)
Media Specifications Label Roll – Max. Diameter: 127 mm (5 in) Core Diameter: Min. 25.4 mm (1 in) Max. 38.1 mm (1.5 in) Paper Width: Max. 118 mm (4.65 in) Min. 25.4 mm (1 in) Label Length: Min. 6.35 mm (0.25 in) Ribbon Roll – Max. length: 91 m (298 ft) Labels: A wide selection of stock and custom size labels are available. Ribbons: Intermec transfer ribbons only (wax, hybrid, and resin) in widths of 33, 60, 63.5, 83.5, 89, and 110 mm (1.33, 2.36, 3.29, 3.5, and 4.33 in) centered on 110 mm (4.33 in) wide cardboard cores. Core inner diameter 13 mm (0.5 in) with notches. Max. ribbon roll diameter 41 mm (1.6 in).
Connect & Print™ Intermec’s program offering “everything in the box”. The printer comes with all included: software, drivers, cables, labels, a handy QuickGuide to facilitate getting started, and a PrinterCompanion CD with label design program, Windows™ driver and documentation.
Software
- EasyCoder C4 Config Tool - Font &
- Firmware downloading tool
- Intermec’s LabelShop® START label design software
- InterDriver™ for Microsoft™ Windows™
Supports: Windows 95, 98, 2000, XP, and NT 4.0
Characters/Fonts 5 resident alphanumeric fonts that are expandable 8 times horizontally and 9 times vertically. Printing of graphics and symbols is also possible. Downloading of additional fonts is possible via “Font Downloader” in the LabelShop START program.
Bar code Symbologies All major 1-dimensional bar code symbologies are available, plus four 2-dimensional codes: MaxiCode, PDF417, DataMatrix and QR-Code.
Environment +5° to +40°C (+40° to +104°F). Humidity 10–90% RH non-condensing. Power Supply Separate power supply unit – Input: 100–240 V AC/50–60 Hz, 1.9 A Output: 24 V DC, 3.0 A
Memory Standard:
- 1MB Flash
- 512K SRAM
Optional:
- 1MB Flash and/or
- 256K SRAM
Interface Standard: RS-232C, USB v.1.1, and Centronics
Protocol XON/XOFF, DSR/CTS
Operator Control One multi-color LED indicator lamp and one Print/Feed key
Regulatory Approvals CE, FCC Class A, C-UL, UL, GS
__($mfg->name) EasyCoder C4 Options Flash memory cartridge and/or SRAM memory cartridge, Serial communication cable, Asian fonts cartridges, Cutter unit, Keyboard display unit, EasyLAN 10 External Ethernet adapter
-
Printing Technology
-
Print Resolution
-
Interface Options
-
Printer Type
-

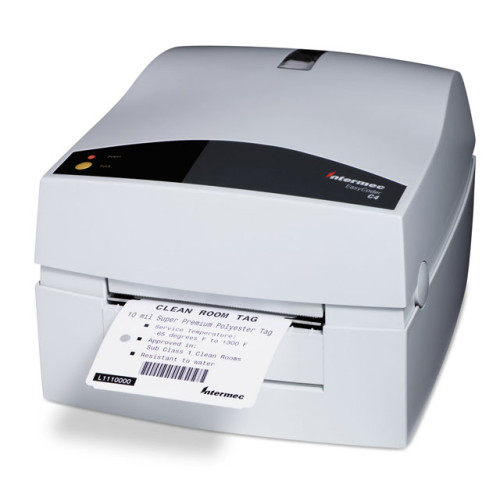

Intermec EasyCoder C4 Barcode Label Printer
