Power, Strength, and Speed

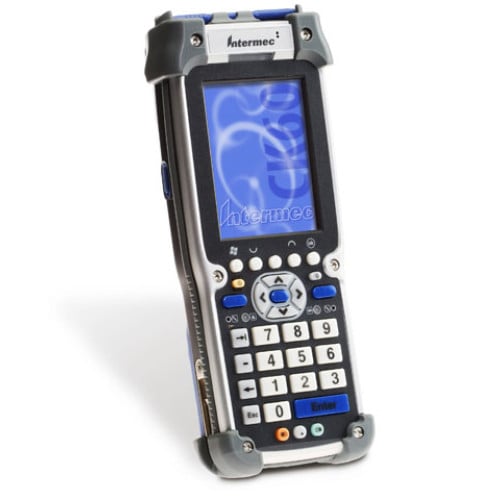

Intermec’s CK60 mobile computer provides everything demanded by the tough route environment. Battery capacity to work all day long. Rugged design to provide years of reliable service. Next generation processor and operating system to run complex application software. Non-volatile storage to protect data. CK60 does it all.
The CK60 utilizes a magnesium top cover and tough rubber bumpers at each corner to achieve extremely rugged environmental specifications. The case is sealed against water and dust to IP64 standards to ensure years of trouble-free service.
Onboard non-volatile memory called Persistent Storage, an exclusive feature of the CK60, preserves applications and databases even if the batteries become depleted. The CK60 also offers an SDIO card slot supporting removable Storage Cards, which allows easy recovery of data from a damaged unit or even more onboard capacity for large databases.
Compatibility and Flexibility
The CK60 is available with either Microsoft® Windows® CE or Microsoft Windows Mobile™ software for Pocket PC. Microsoft Windows CE provides significant flexibility to those customers who wish to control the user experience; Windows Mobile offers a standard platform which can easily be applied across the enterprise. Both operating systems are supported by advanced software development tools as well as Intermec’s Developer Library, providing easy integration of unique hardware capabilities into custom applications.
The QVGA resolution display features a touchscreen, allowing the CK60 to run both text-based applications and graphical interfaces. Mobile workers are able to quickly enter large amounts of data using the numeric keypad featuring large, easy-to-use keys and excellent tactile feel. Suitable for both one- and two-handed input, the keypad is designed to last the life of the unit.
The CK60 provides multiple ways in which data may be exchanged between the handheld computer and other devices. High-speed Ethernet, USB Host and Client, and RS232 serial connections are standard on every unit, as is Bluetooth wireless personal area communications. The CK60 may be optionally equipped with a WiFi-certified 802.11b/g radio* for local area wireless communications.Physical Description:
The CK60 mobile computer provides everything demanded by the tough route environment from extended battery capacity, rugged design to support of complex application software and data protection.
Microsoft Windows CE or Microsoft Windows Mobile Software for Pocket PC
Bluetooth Class 1, 802.11g and 802.11b
Length: 222 mm (8.75 in.)
Width: 90 mm (3.55 in.)
Height: 55 mm (2.08 in.)
Weight: 704 grams (24.8 oz.)
Microprocessor: Intel Xscale PXA272, 520 MHz
Memory: 64 or 128 MB, 64 MB Flash ROM and 128 MB persistent store
Memory/Storage Extension: SDIO card slot, user accessible
Bar Code Scanning
Scan Engine: Option of Integrated Laser Scanner, 2D Area Imager or Integrated 1D & PDF417 Linear Imager (latter a future release).
Symbologies Read: Supports all popular 1D and 2D symbologies including Code 39, I 2 of 5, S 2 of 5, Matrix 2 of 5, Code 128, Code 93, Code 93i, Codabar, Codablock, MSI, Plessey, UPC, EAN/EAN128, ISBT128, Code 11, RSS, Telepen, PDF417, Micro PDF417, Macro PDF417, Maxicode, Datamatrix, QR Code (2D symbologies require Area Imager)
Battery Type/Supply: Removable, rechargeable Lithium-Ion; 7.2V, 2400 mAh (17.3 Watt-hours)
Battery Life: Application dependent
Recharging Time: 4 hours or less
Operating Temp: -4°F to +122°F (-20°C to +50°C)
Storage Temp: -22°F to +158°F (-30°C to +70°C)
Environmental Protection: IP64 compliant.
Drop Survival: Multiple 1.8 m (6 ft.) drops to steel or concrete
Humidity: 5 to 95%, non-condensing
Electrostatic Discharge: ±8kV Contact Discharge; ±15kV Air Discharge
Transflective TFT with LED backlight; 3.8” (97 mm) QVGA Color with touch panel
32-key with large numeric keys or 58-key with full alphanumeric keys; both with LED backlighting
Development Environments: Embedded Visual C++ 4.0, .NET Compact Framework (VB .NET and C#)
Intermec Developers Library: Integrates with leading development environments; supports device-specific features and bar code scanning
Browser support: IE6 compatible
USB Host and Client, Ethernet 10/100 Base-T, Bluetooth™ Class 1, V2.0 + EDR
RS232 Serial, IrDA 1.1
IEEE 802.11g (2.4 GHz – OFDM)
IEEE 802.11b (2.4 GHz – DSSS)
Up to 54 Mbps for 802.11g
Up to 11 Mbps for 802.11b
Radio Power Output: 50 mW
Security: WEP, WPA, 802.1x (EAP-TLS, TTLS, LEAP, PEAP), 802.11i
Certifications: Wi-Fi, WPA2, Cisco Compatible Extensions V2
SmartSystems Support: Centralized remote support capability; Configures, updates and maintains single devices or entire populations; Real-time or batch, wired or wireless. Based on Wavelink Avalanche™ with Intermec value added utilities.
Communications and charging dock: Single bay communications dock with USB/Ethernet or USB/modem capabilities and auxiliary battery charger; four-position Ethernet and charge-only multidocks
Serial adapters: Snap-on adapters for USB or RS232 peipherals; snap-on adapter for DEX/UCS connectivity.
UL and cUL Listed, UL 60950 and UL 1604 and CSA 22.2 No. 157, FCC Part 15, TUV, CE mark
* Future Release
