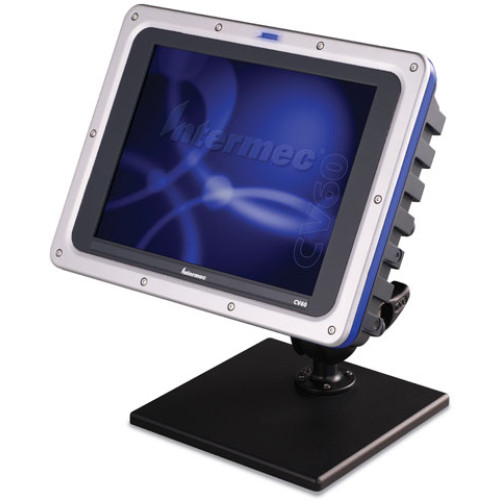

Intermec CV60 Terminal

Intermec CV60 Terminal

The Intermec CV60 is ideal for factories, loading docks and any other location where durability and toughness is essential to success. The CV60's 12 inch touchscreen is easy to use in any temperature, and wireless connections allows the use of any of Intermec's wireless scanners. Bluetooth technology keeps the CV60 in contact with other devices, and the included Windows XP operating system allows a wide range of applications at your fingertips.

Physical Characteristics
Height: 27.1cm (10.67”)
Width: 34cm (13.4”)
Depth: 9.5cm (3.7”)
Weight: 5 kg (11 lbs.)

Environmental
Standard Operating Temperature: -20° to 50° C (-4o to 122o F) – Solid State 0° to 50° C (32o to 122o F) – Rotating
Extreme Operating Temperature: -30° to 50° C (-22o to 122o F) – Solid State HDD (With heated display option)
Storage Temperature: -30° to 70° C (-22o to 158o F)
Humidity: 5 % to 95 % RH Non-condensing
Shock and Vibration Protection: Withstands standard material handling vehicle environments. Meets or Exceeds MIL STD 810F
Rain and Dust Resistance: Sealed to IP65 (Dust tight and jetted water)

Standard Features
Power: Choice of two external DC/DC converters 6-36 VDC input DC/DC for 12V - 24V systems (gas truck)
15-96 VDC input DC/DC for 24-72V systems (electrical truck)
AC/DC Converter
Uninterruptible Power Supply option for unstable power sources

Hardware
Memory: 128MB SDRAM standard; expandable to 256MB or 384MB; 512KB Flash
Microprocessor: Intel P-III Ultra Low Power 800MHz embedded processor
Display: Brilliant 12.1” Color TFT 800 x 600 SVGA; 100 degree viewing angle;
300 NIT; Heated Option
User Interface: High resolution, resistive touch panel

Operating Systems
Windows CE .NET 4.2
Windows XP Professional Edition
Windows XP Embedded

Hard Drive Options
Solid State drive options for rugged, vehicle / freezer based applications
Shock/Vibration dampening rotating drive option for stationary, standard temperature and select mobile applications

Network Connectivity
10BaseT/100BaseT Ethernet

Application Connectivity
Supports Terminal Emulation (TE 2000) applications.
Supports standard application environments including Win32 Microsoft Foundation Classes (MFC), Microsoft .NET Framework and Microsoft .NET Compact

Integrated Radio Options
Wireless LAN
Data Rates: Up to 54 Mbps per IEEE 802.11g
Standards Compliant:
IEEE 802.11g - 2.4 GHz
IEEE 802.11b (2.4 GHz - DSSS)
Radio Power: 50 mW
Security: WEP, WPA, 802.1x (EAP-TLS, TTLS, LEAP, PEAP)
Certifications: Wi-Fi, WPA, CCX Program
Compliance: FCC Part 15, CE mark

Wireless PAN
Integrated Bluetooth compatible module

Antenna Options
Integrated diversity antenna options for LAN, Bluetooth and bar code scanner.
Remote patch LAN antenna
Data Collection Scanner Support
Tethered serial bar code scanner
Tethered RFID scanner
Integrated radio for wireless scanner support

Interfaces
(2) Standard Serial Ports – DB9
(2) USB Host ports v1.1
(1) PS/2 Keyboard Port
(1) Locking Power Input
On / Off Switch
Audio 3.5mm stereo jack
Microphone In / Mono Output (VoIP ready) 2.5mm jack
Internal Speaker / Beeper
Accessible Expansion Slots
One 6.4cm (2.5”) IDE drive bay
One Solid State type II card Bus slot

Extended Details
  1. CV60C11EF4003304 - Intermec CV60 Fixed/Vehicle Mount Data Terminal

    CV60, Wireless Vehicle Mount Computer (Standard Touch Panel, No Load, System Total 256MB, Windows CE .NET, TE2000 128MB PCMCIA SS, Bluetooth, Internal Antenna and 802.11a/b/g-FCC)
  2. CV60A10A84001804 - Intermec CV60 Fixed/Vehicle Mount Data Terminal

    CV60, Resistive Touch Panel, 128MB, Windows XP Professional, 20GB Rotary Drive, Bluetooth, No Picolink, Internal Antenna and 802.11g-FCC
  3. CV60A10B54041804 - Intermec CV60 Fixed/Vehicle Mount Data Terminal

    CV60, Resistive Touch Panel Only, 128MB Memory, Windows XPE, 768MB HDD, Bluetooth, PicoLink Radio Module 04, Internal Antenna and 802.11g-FCC
  4. CV60A10E24001804 - Intermec CV60 Fixed/Vehicle Mount Data Terminal

    CV60, 128MB, WindowsCE .NET, 64MB PCMCIA, Bluetooth and 802.11g-FCC
  5. CV60A10B54001804 - Intermec CV60 Fixed/Vehicle Mount Data Terminal

    CV60, Resistive Touch Panel Only, 128MB Memory, Windows XPE, 768MB HDD, Bluetooth, No PicoLink, Internal Antenna and 802.11g-FCC
  6. CV60A10A84002804 - Intermec CV60 Fixed/Vehicle Mount Data Terminal

    CV60, Resistive Touch Panel, 128MB, Windows XP Professional, 20GB Rotary Drive, Bluetooth, No Picolink, External Antenna and 802.11g-FCC
  7. CV60A20E24001804 - Intermec CV60 Fixed/Vehicle Mount Data Terminal

    CV60, Resistive Touch with Heater, No Load-128MB Total, Windows CE .NET TE2000, Bluetooth, No Picolink, Internal Antenna and 802.11g-FCC
  8. CV60A12A84000000 - Intermec CV60 Fixed/Vehicle Mount Data Terminal

    CV60, Resistive Touch Panel, 256MB, Windows XP Professional, 20GB Rotary Drive, Bluetooth, No Picolink, No Antenna and No Device 2
  9. CV60A10B54001808 - Intermec CV60 Fixed/Vehicle Mount Data Terminal

    CV60, Wireless Vehicle Mount Computer (Resistive Touch Panel Only, 128MB Memory, Windows XPE, 768MB SS IDE, Bluetooth, No PicoLink, Internal Antenna and 802.11g-Mexico)
  10. CV60A11B54002804 - Intermec CV60 Fixed/Vehicle Mount Data Terminal

    CV60, Wireless Vehicle Mount Computer (Resistive Touch Panel, 128MB, Windows XPe Standard, 768MB SS IDE Drive, Bluetooth, No Picolink, External Antenna and 802.11g-FCC)

Items 1 to 10 of 58 total
