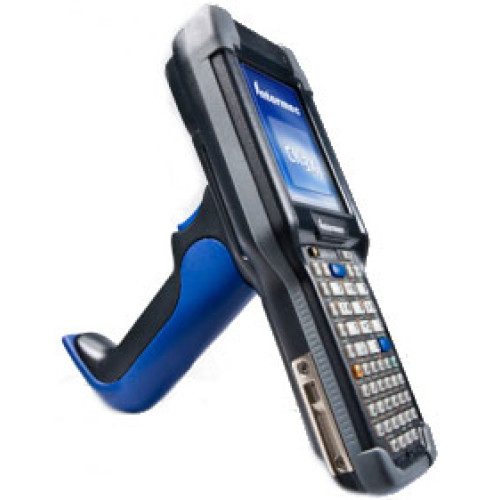

Honeywell CK3X Hand Held Computer Part # CK3XAB4M000W4100

The Intermec CK3X comes with a choice of integrated area imagers for standard range or near/far range scanning. These imagers provide unsurpassed scanning performance on 1D and 2D bar codes and are particularly well-suited for reading poor quality and damaged codes. Support for omni-directional scanning and very high motion tolerance allows workers to capture an accurate scan and quickly move to the next task.

CK3XAB4M000W4100 - Intermec CK3X Handheld Computer

Part Details: CK3X, Wi-Fi (802.11a/b/g/n), Near-Far 2D Imager, Windows Embedded 6.5, 256MB RAM/1GB Flash, Numeric Keypad, Bluetooth. Includes battery. Interface cables and charging cradle sold separately. Spare Battery (Part# 318-033-021). Quad charging dock (Part# 871-230-101). Requires Power Supply (Part# 851-810-002) and AC power cord (Part# 1-974028-025).
MSRP: $2,600.00 Price: $1,650.65
In Stock

Additional Information

Manufacturer Honeywell
Model Name CK3X
Product Condition New

Accessories

Supports most CK3 charging and docking accessories as well as FlexDock modular docking system, vehicle dock and holder, snap on adaptors and removable scan handle.

Display

• 8.9 cm (3.5 in) Transmissive QVGA
• 240 x 320 pixels
• 65,536 (16 bit RGB) Colors
• High-Durability Touch Screen
• LED Backlight

Environment

Drop Survival: 1.5 m (5 ft.) to concrete per MILSTD 810G across operating temperatures
Tumble Specification: 1,000 (1.0 m) tumbles per IEC 60068-2-32 specification
Electrostatic Discharge: +/- 15 kV air discharge, +/- 8 kV direct discharge
Humidity: Non-condensing, 95%
Operating Temperature: -10°C to +50°C (+14°F to +122°F)
Charging Temperature: +5°C to +35°C (+41°F to +95°F)
Storage Temperature: -20°C to +70°C (-4°F to +158°F)
Rain and Dust Resistance: IP54, category 1

Keypad

Both keypad options feature backlit hard keycaps with laser-etched legends

Memory and Storage

Flash ROM: 1GB Flash
Memory/Storage Extensions: Customer-accessible micro-SD slot for removable memory cards up to 32GB
RAM Memory: 256MB RAM

Microprocessor

Texas Instruments 1GHz multi-engine processor architecture

Operating System

Microsoft Windows Embedded Handheld built on Windows 6.5.3 technology with Intermec HTML5 Browser (available via download)

Physical Characteristics

Length: 21.6 cm (8.53 in)
Width:
8.3 cm (3.29 in)
6.1 cm (2.4 in) - grip area
Depth: 3.6 cm (1.42 in)
Weight: 499 g (17.6 oz) with 5.1Ah battery

Power

Battery Type/Supply:
Battery Pack: Removable, rechargeable
• Included - User removable, rechargeable Lithium-Ion; 3.7V, 5100 mAh (18.5 Watt-hours)
• Optional - Removable, rechargeable Lithium-Ion; 3.7V, 5200 mAh (18.5 Watt-hours) Smart Pack
• Optional - Removable, rechargeable Lithium-Ion; 3.7V, 2000 mAh (7.4 Watt-hours)

Scanning Performance

Scan Engine Options:
EA30 high performance motion-tolerant 2D Imager; (up to 500in/s) white LED illumination; red laser aimer and framer optimized for all lighting conditions. Capable of scanning all common 1D and 2D barcodes; 1D as small as 4 mil; 2D as small as 6.6 mils. Refer to User's Manual for depth of field performance.

EX25 near/far 2D Imager: Capable of scanning 1D and 2D barcodes from 15.2 cm to 15.2 m (6 in to 50 ft). Refer to User's Manual for depth of field performance.

Communications Interface

USB – Full Speed 2.0 OTG©, USB – Full Speed 2.0 Client©
Wireless:
Wireless LAN: IEEE®802.11 a/b/g/n Dual Band WLAN
Security: WiFi Certified for WPA and WPA2
Authentication: 802.1x
Cisco Compatibility: CCXv4
Encryption: WEP (64 or 128 bit), AES, TKIP

Wireless PAN: Integrated Bluetooth® Class II, Version 2.1+EDR
Operating Channels: 0 to 78 (2402-2480 MHz)
Data Rates: 1, 2, 3 Mbps
Antenna: Internal

Extended Details

Recommended Accessories

  • Intermec CK60 Series Accessories (127-24)

    Heated Terminal Holder for CK3X/CK60 24V.
    Price: $1,025.00
    This item is temporarily not in stock but it is available for ordering
  • Intermec 700 Series Accessories (751)

    Soft Sided Portable Terminal Heater for the CK3X/CK60. Protects and heats the terminal, eliminates condensation and extends battery life.
    Price: $2,114.00
    This item is temporarily not in stock but it is available for ordering
  • Intermec CK60 Series Accessories (127-12)

    Heated Terminal Holder for CK3X/CK60 12V.
    Price: $1,025.00
    This item is temporarily not in stock but it is available for ordering
  • Intermec CK60 Series Accessories (752)

    Soft Sided Portable Terminal Heater - set of 2 for the CK3X/CK60. Protects and heats the terminal, eliminates condensation and extends battery life.
    Price: $3,704.00
    This item is temporarily not in stock but it is available for ordering
  • Intermec CK3 Accessories (236-297-001)

    236-297-001, AC USB cable (same as in the the 203-990-001 kit)
    MSRP: $51.94 Price: $38.55
    In Stock - Ships Free

Recommended Warranties

  • Intermec CK3X Service Contract (SVCCK3-2FC4)

    HONEYWELL SERVICE CONTRACT CK3 (X&R MODELS ONLY) FULL COMPREHENSIVE 2 DAY TURN 4 YEAR DAY 1
    MSRP: $623.70 Price: $465.88
    This item is temporarily not in stock but it is available for ordering
