Additional Information
| Frequency | UHF |
|---|---|
| Keypad | QWERTY |
| Manufacturer | Intermec |
| Model Name | CN70e |
| Operating System | Windows Embedded Handheld |
| Scanner Type | Imager |
| Style | Handheld |

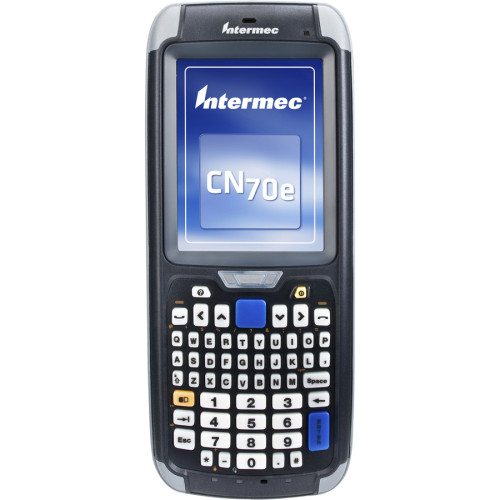

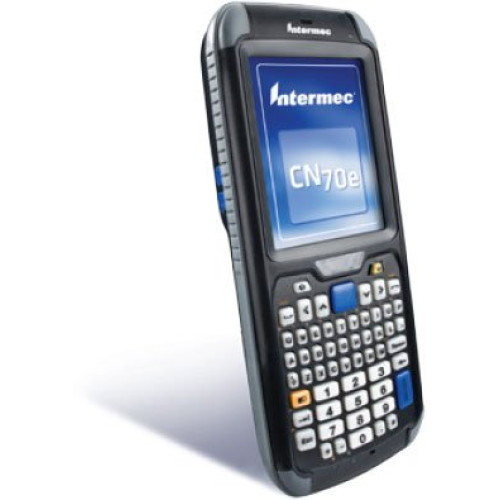

Intermec CN70e Specs
Technical Information
- Connectivity Technology: Wireless
- Image Sensor: Imager
- Electrostatic Discharge (ESD):
- +/-15 kV DC Air Discharge
- +/-8 kV DC Direct Discharge
- Drop Specification:
- 94.49" To Concrete
- 70.87" To Concrete @ -4°F (-20°C) to 140°F (60°C)
- Barcode Symbology Supported:
- 1D
- 2D
General Information
- Product Type: Handheld Terminal
- Brand Name: Intermec
- Manufacturer: Intermec Technologies Corporation
- Product Model: CN70e
- Product Name: CN70e Handheld Terminal
Physical Characteristics
- Width: 3.1"
- Depth: 1.3"
- Length: 7.7"
- Weight (Approximate): 1.08 lb
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority:
- WEEE
- RoHS
- Package Contents:
- CN70e Handheld Terminal
- Battery
- CN70e Handheld Terminal
- Battery
- Certifications & Standards:
- IP67
- IEC 60068-2-32
- MIL-STD 810G
- CCXv4
- 1000CP01
- 1000CP01U
- 1000CP01C
- Safety:
- cULus
- DEMKO
- BSMI
- EMC:
- Class B - FCC/ICES/EN
- GOST-R
- Radio:
- FCC w/HAC
- Industry Canada
- CE 0981
- A-tick (AU)
- C-tick (NZ)
- NCC
- OFTA
- IDA
- ICASA
- POSTEL
- NTC
- ETA
- SIRIM
- ANATEL
- 61 Countries in Total
Network & Communication
- Bluetooth: Yes
- Wireless LAN: Yes
- Antenna Form Factor: Internal
- Wireless LAN Standard: IEEE 802.11a/b/g/n
- Wireless Security:
- WPA
- WPA2
- WAPI
- 802.1x
- WEP (64 or 128 bit)
- AES
- TKIP
Display & Graphics
- Screen Mode: VGA
- Screen Size: 3.5"
- Display Color: Color
- Screen Resolution: 480 x 640
Memory
- Flash Memory: 1 GB
- Standard Memory: 512 MB
- Memory Card Slot: Yes
- Memory Card Supported: microSD Card
Battery Information
- Battery Capacity: 4000 mAh
- Battery Included: Yes
- Battery Chemistry: Lithium Ion (Li-Ion)
Processor & Chipset
- Processor Manufacturer: Texas Instruments
- Processor Type: OMAP 3
Keyboard/Keypad
- Keyboard Type: Numeric
- Keyboard Layout: QWERTY
Touchscreen Information
- Touchscreen: Yes
Warranty
- Limited Warranty: 1 Year
Software
- Operating System: Windows Embedded Handheld 6.5.3
