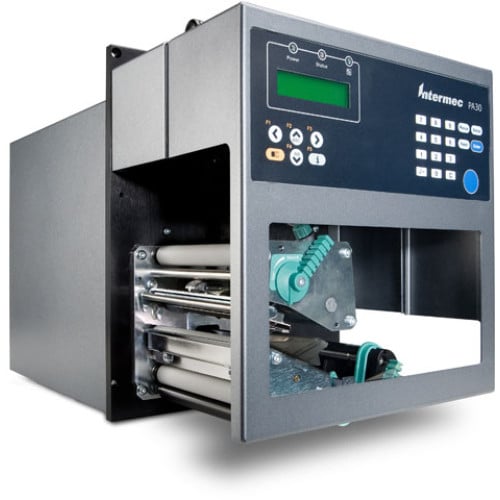

Intermec PA30 Print Engine
Part #: PA30A21000031112 | SKU: INT78566

PA30 can communicate with and replace competitive print engines without changes to host programming or label format design, providing additional functionality and continued investment protection.The combination of powerful individually controlled micro-step motors, high capacity power supply and sophisticated thermal management print head ensures high-quality labels each and every time at up to 12 inches (30.5 cm) per second (first to last label).

Intermec PA30 Print Engine

Part Details: PA30, PTR, PA30, US, FP, WRD, 16+4MB, RWN, RTC, TT, 203

Additional Information

Manufacturer Intermec
Model Name PA30
Print Resolution 203 dpi

Technical Information

  • Maximum Mono Print Speed: 12 lps
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.30"
  • Recommended Use: Label Print
  • Features:
    • Real Time Clock
    • Rewinder
  • Barcode Symbology Supported:
    • Codabar
    • Code 11
    • Code 39
    • Code 93
    • MSI
    • Code 128
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • DUN-14/16
    • UPC
    • EAN
    • EAN-8
    • EAN-13
    • UPC-A
    • UPC-E
    • EAN 128
    • EAN-128 Subset A
    • EAN-128 Subset B
    • EAN-128 Subset C
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • Matrix 25
    • Planet Code
    • POSTNET
    • Straight 2 of 5
    • UCC 128
    • RSS
    • HIBC Code 39
    • HIBC Code 128
    • JIS-ITF
    • Aztec Code
    • Code 16K
    • Code 49
    • Data Matrix
    • Maxi Code
    • PDF-417
    • QR Code
    • Micro PDF-417
    • EAN.UCC Composite
    • UPC/EAN
    • LOGMARS
    • HIBC
    • ISBT-128

General Information

Physical Characteristics

  • Height: 11.9"
  • Width: 9.6"
  • Depth: 20.5"
  • Form Factor: Desktop

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.72"
  • Maximum Label Length: 13.42 ft
  • Media Type:
    • Roll Fed
    • Die-cut Label
    • Continuous Label
    • Fanfold
    • Tag
    • Ticket
  • Media Thickness: 10 mil
  • Ribbon Core Size: 1"

Other

  • Platform Supported: PC
  • Package Contents:
    • PA30 Label Printer
    • US Power Cord
    • PA30 Label Printer
    • US Power Cord

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 4 MB

Fonts & Emulation

  • Language Emulation:
    • IPL
    • Fingerprint

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Display & Graphics

  • Display Screen Type: LCD
Extended Details

Recommended Accessories for Model: Intermec PA30 Print Engine

  • Honeywell PA30 Accessory
    Part #: 1-020040-008 | SKU: 37133

    8 MB SIMM Flash Memory, Includes Bootup Software
  • Honeywell PA30 Accessory
    Part #: 1-971134-001 | SKU: 46246

    SDRAM SIMM 16MB Assembly (ASX)
  • Intermec PA30 Accessory
    Part #: 1-010008-10 | SKU: 77116

    Adapter, Gender Changer (MALE/MALE)
