Additional Information
| Interface Options | USB |
|---|---|
| Manufacturer AIDC | Intermec |
| Max Roll Outer Diameter | 5 |
| Model Name | EasyCoder PC23d |
| Print Resolution | 203 dpi |
| Print Speed | 8 ips |
| Printer Type | Desktop |
| Printing Technology | Direct Thermal |

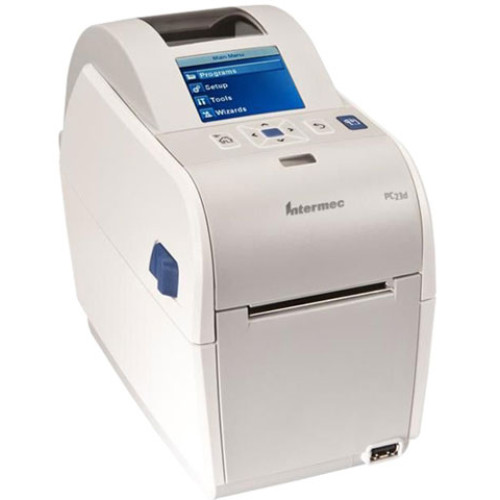

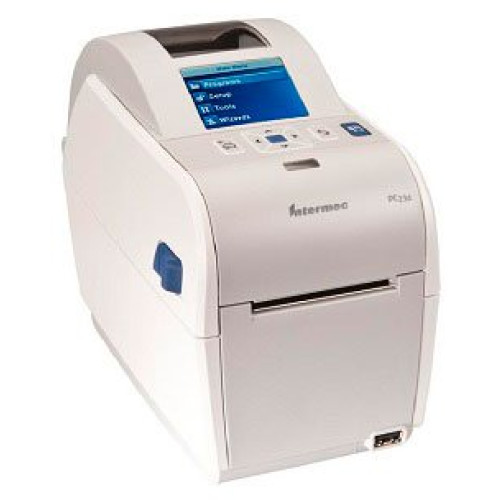

Intermec EasyCoder PC23d Specs
Technical Information
- Maximum Mono Print Speed: 8 in/s
- Maximum Print Resolution: 203 dpi
- Print Color: Monochrome
- Maximum Print Width: 2.20"
- Recommended Use: Label Print
- Features:
- Real Time Clock
- Icon-graphics
- Barcode Symbology Supported:
- Aztec Code
- Code 16K
- Code 49
- Data Matrix
- EAN-13
- EAN-8
- EAN.UCC 128
- Grid Matrix
- HIBC Code 128
- HIBC Code 39
- Maxi Code
- MSI
- PDF-417
- Micro PDF-417
- Planet Code
- Plessey
- POSTNET
- QR Code
- RSS-14
General Information
- Product Type: Direct Thermal Printer
- Product Series: PC
- Brand Name: Intermec
- Manufacturer: Intermec Technologies Corporation
- Product Model: PC23d
- Product Name: PC23d Desktop Printer
Physical Characteristics
- Height: 6.9"
- Width: 4.9"
- Depth: 8.5"
- Form Factor: Desktop
- Weight (Approximate): 3.20 lb
Interfaces/Ports
- USB: Yes
Media Types & Handling
- Maximum Label Width: 2.40"
- Maximum Label Length: 68"
- Media Type:
- Tag
- Linerless
- Self Adhesive Label
- Continuous Paper
- Floodcoat
- Non-adhesive Tag
- Media Sensor: Transmissive Media Sensor
- Label Core Size: 1.50"
- Maximum Roll Diameter: 5"
Fonts & Emulation
- Language Emulation:
- IPL
- Fingerprint
- DSim
- ZSim
- XML
- E-Sim
Memory
- Standard Memory: 128 MB
- Memory Technology: DDR2 SDRAM
- Flash Memory: 128 MB
Display & Graphics
- Display Screen Type: LCD
- Screen Size: 2.4"
Other
- Platform Supported: PC
Power Description
- Power Source: Power Adapter
