163751 Intermec

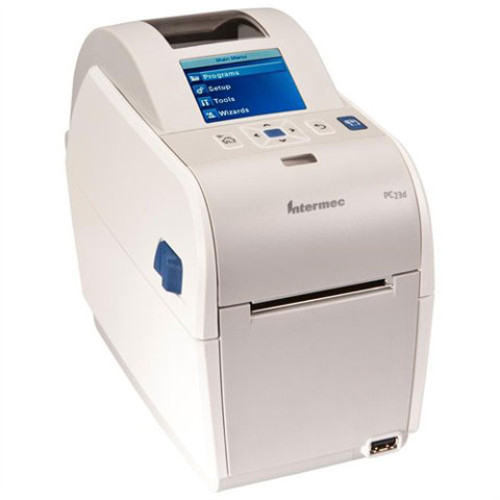

PC23DA1010121 - Intermec EasyCoder PC23d RFID RFID Printer

EasyCoder PC23d RFID, Printer, Display, adjustable gap Real-time clock, 203 dpi, HF RFID, PWR CRD.
InStock
$1,595.00 $1,092.88
Ships In 3-5 Days
Free Shipping
- +

Additional Information

Maximum Print Width 2.20" max width
Interface USB
Print Resolution 203 dpi
Frequency Range HF
Item Condition New
Manufacturer Intermec

Technical Information

  • Maximum Mono Print Speed: 8 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 2.20"
  • Recommended Use: RFID Label Print
  • Encoding Technology: RFID Encoder
  • Features: Real Time Clock
  • Barcode Symbology Supported:
    • Aztec Code
    • Code 16K
    • Code 49
    • Data Matrix
    • EAN-13
    • EAN-8
    • EAN.UCC 128
    • Grid Matrix
    • HIBC Code 128
    • HIBC Code 39
    • Maxi Code
    • MSI
    • PDF-417
    • Micro PDF-417
    • Planet Code
    • Plessey
    • POSTNET
    • QR Code
    • RSS-14

General Information

  • Product Type: Direct Thermal Printer
  • Product Series: PC
  • Brand Name: Intermec
  • Manufacturer: Intermec Technologies Corporation
  • Product Model: PC23d
  • Product Name: PC23d Desktop Printer

Physical Characteristics

  • Height: 6.9"
  • Width: 4.9"
  • Depth: 8.5"
  • Form Factor: Desktop
  • Weight (Approximate): 3.20 lb

Interfaces/Ports

  • USB: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • ENERGY STAR
  • Platform Supported: PC
  • Package Contents:
    • PC23d Desktop Printer
    • Software, Driver & Documentation CD
    • USB Cable
    • Power Adapter
    • Power Cord
    • Handy QuickGuide
    • PC23d Desktop Printer
    • Software, Driver & Documentation CD
    • USB Cable
    • Power Adapter
    • Power Cord
    • Handy QuickGuide
  • Certifications & Standards:
    • CE
    • FCC Class A
    • C-UL-US
    • UL
    • GS
    • TUVGS
    • BSMI
    • D Mark
    • cUL
    • CCC (China)
    • KCC (South Korea)
    • C-TICK (Australia/NZ)
    • UL 60950-1
    • EN 60950-1
    • CE marked
    • NYCE Certified
    • NOM 19
    • IEC 60950-1
    • USA FCC Title 47
    • Part 15
    • Subpart A
    • Class B
    • Europe EMC Directive (EN55022 Class B + EN55024)
    • CISPR22

Media Types & Handling

  • Maximum Label Width: 2.40"
  • Maximum Label Length: 68"
  • Media Type:
    • Tag
    • Linerless
    • Self Adhesive Label
    • Continuous Paper
    • Floodcoat
    • Non-adhesive Tag
  • Media Sensor: Transmissive Media Sensor
  • Label Core Size: 1.50"
  • Maximum Roll Diameter: 5"

Fonts & Emulation

  • Language Emulation:
    • IPL
    • Fingerprint
    • DSim
    • ZSim
    • XML
    • E-Sim

Memory

  • Standard Memory: 128 MB
  • Memory Technology: DDR2 SDRAM
  • Flash Memory: 128 MB

Power Description

  • Input Voltage: 24 V DC
  • Power Source: Power Adapter

Display & Graphics

  • Display Screen Type: LCD
  • Screen Size: 2.4"

RFID

  • Maximum Operating Frequency: 13.56 MHz

Warranty

  • Limited Warranty: 1 Year
