Intermec EasyCoder PD42 Barcode Label Printer Intermec EasyCoder PD42 Barcode Label Printer Intermec EasyCoder PD42 Barcode Label Printer Intermec EasyCoder PD42 Barcode Label Printer

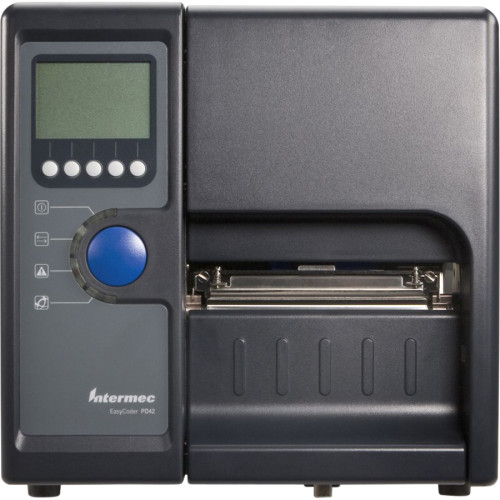

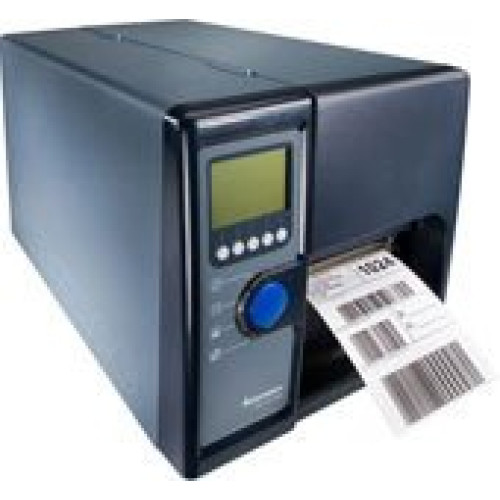

Intermec EasyCoder PD42 Barcode Label Printer
Part #: PD42BJ1000002030 | SKU: INT195890

The Intermec EasyCoder PD42 can print demanding crisp variable-data labels continuously at 150 mm/s (6 ips). It takes industry standard 200-mm (8-in) rolls of labels and 450 m (18 000 in) of ribbon, reducing downtime for loading media to a minimum. The printer accepts a wide range of paper types in different thicknesses, as well as both ink-in and ink-out ribbon. In addition the EasyCoder PD42 offers many Smart Printing features normally found only in high-performance printers. By adding Intermec's LabelShop Pro and XMLLabel, the EasyCoder PD42 will be fully provisioned for XML printing environments. Support for Unicode fonts and Intermec Ready-to-Work indicator are standard - all at an affordable and competitive price. Networking is an increasingly important user requirement but still a rare feature in this printer class. The EasyCoder PD42 offers high-speed, multi-channel Ethernet as a standard choice.

Intermec EasyCoder PD42 Barcode Label Printer

Part Details: EasyCoder PD42, PD42B, US/EU, LAN, 1284, LTS, DT/ TT300 DPI
Need a different version of the Intermec EasyCoder PD42 Barcode Label Printer? View all 17 configurations

Additional Information

Interface Options Ethernet, Serial (RS-232), USB
Manufacturer Intermec
Max Roll Outer Diameter 8
Model Name EasyCoder PD42
Print Resolution 203 dpi
Print Speed 6 ips
Printer Type Industrial
Printing Technology Thermal Transfer
Ribbon Core Size 1 inch
Intermec EasyCoder PD42 Specs Intermec EasyCoder PD42 Specs (pdf)

Technical Information

  • Maximum Mono Print Speed: 3.94 in/s
  • Maximum Print Resolution: 300 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.16"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • UCC/EAN 128
    • POSTNET
    • HIBC
    • ISBT-128

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Intermec
  • Manufacturer: Intermec Technologies Corporation
  • Product Model: PD42
  • Product Name: PD42 Label Printer

Physical Characteristics

  • Height: 10.8"
  • Width: 10.6"
  • Depth: 17.8"
  • Form Factor: Desktop
  • Weight (Approximate): 28.66 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.65"
  • Media Type:
    • Roll Fed
    • Die-cut Label
    • Continuous Label
    • Fanfold
    • Ticket
    • Tag
    • Direct Thermal Label
    • Thermal Transfer Label
  • Media Thickness: 9.80 mil
  • Label Core Size: 2.99"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8.39"

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Platform Supported: PC
  • Certifications & Standards:
    • FCC
    • UL
    • cUL
    • CE
    • NOM

Fonts & Emulation

  • Language Emulation:
    • XML
    • ZPL
    • IPL
    • DPL
    • EPL

Network & Communication

  • Ethernet: Yes
  • Wireless LAN: Yes
  • Ethernet Technology: Fast Ethernet
  • Wireless LAN Standard: IEEE 802.11b/g

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: AC Supply

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 8 MB

Warranty

  • Limited Warranty: 1 Year

Display & Graphics

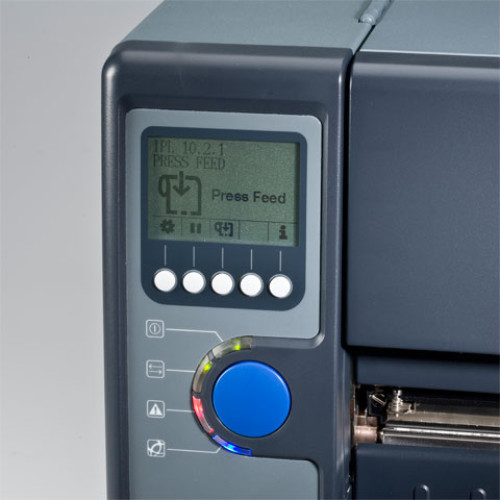

  • Display Screen Type: LCD
Extended Details
