47348 Intermec

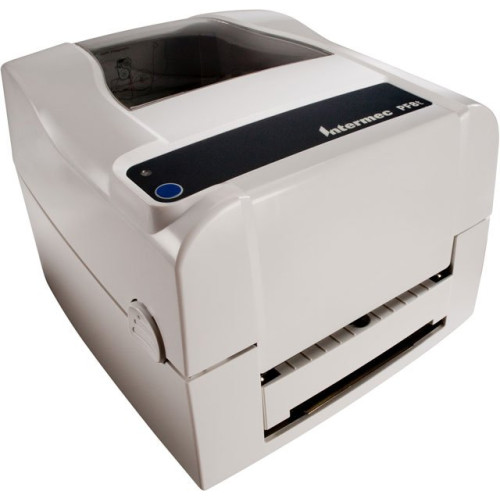

Intermec EasyCoder PF8t Bar code Printer Part # PF8TA03001000

The unique double clam shell design of the Intermec EasyCoder PF8t thermal transfer printer makes it extremely easy to load supplies with the simple drop-in method. Label and ribbon changes can be done in no time. With the smallest footprint of any Intermec fixed position printer, the EasyCoder PF8t is ideal for space restricted applications requiring less than 1000 labels per day. The thermal transfer printer delivers clean, crisp barcodes on tags, tickets and labels. A real-time clock, a standard feature on this model, enables time stamping of the media as it prints.

PF8TA03001000 - Intermec EasyCoder PF8t Bar code Printer

Part Details: EasyCoder PF8t, Thermal transfer, 300 dpi, RS-232 serial, Parallel and USB interfaces. Power cord (Part# 226-000001-200) not included. See accessories.
InStock

Additional Information

Filter Filter
Interface Options Parallel, Serial, USB
Label Core 1 inch
Manufacturer Intermec
Max Label Width 4.65
Max Roll Outer Diameter 5
Maximum Print Width 4.65
Print Method Thermal Transfer
Print Resolution 305 dpi
Print Speed 2
Printer Mobility Not Mobile
Printer Type Desktop
Product Condition New
  • IT-friendly design simplifies deployment and support, especially in networked environments
  • Industry-standard connectivity options include fast, internal Ethernet
  • Includes popular PrintSet configuration tool for fast set-up and upgrades
  • Provides easy migration path for Intermec PC4 and other EPL desktop printers
  • Compact footprint for space constrained applications
  • Clamshell design makes media loading easy and intuitive
  • Double-wall case provides durability
  • One-inch ribbon core option (PF8t) maximizes time between roll changes
  • Ideal for health care, transportation/courier, retail and office environments

Technical Information

  • Maximum Mono Print Speed: 4 in/s
  • Maximum Print Resolution: 300 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.20"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • EAN
    • QR Code
    • Data Matrix
    • PDF-417
    • Maxi Code
    • UCC 128

General Information

  • Product Type: Thermal Transfer Printer
  • Product Series: PF
  • Brand Name: Intermec
  • Manufacturer: Intermec Technologies Corporation
  • Product Model: PF8T
  • Product Name: EasyCoder PF8T Thermal Label Printer
  • Product Line: EasyCoder

Physical Characteristics

  • Height: 6.8"
  • Width: 8.9"
  • Depth: 11.2"
  • Form Factor: Desktop

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Platform Supported: PC
  • Package Contents:
    • EasyCoder PF8T Thermal Label Printer
    • Software Media (Includes: label Design Software, Windows Driver and Documentation)
    • Connector Cables
    • EasyCoder PF8T Thermal Label Printer
    • Software Media (Includes: label Design Software, Windows Driver and Documentation)
    • Connector Cables
  • Additional Information: Note: Power cord (Part# 226-000001-200) not included, must be purchased separately.

Media Types & Handling

  • Maximum Label Width: 4.65"
  • Maximum Label Length: 68"
  • Media Sensor:
    • Reflective Media Sensor
    • Label Taken Sensor
  • Label Core Size: 1.50"
  • Ribbon Core Size: 0.50"
  • Maximum Roll Diameter: 5"

Fonts & Emulation

  • Language Emulation:
    • EPL
    • E-Sim

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Memory

  • Standard Memory: 8 MB
  • Memory Technology: DRAM
  • Flash Memory: 4 MB

Warranty

  • Limited Warranty: 1 Year
Extended Details

Recommended Accessories

Recommended Labels

  • Intermec Duratran II Label (E15520)

    Duratran II, 2.25" x 1".25" Thermal transfer paper label. 1,200 labels/roll, 8 roll case.
    Price: $78.30
    Ships in 3-5 Days
  • Intermec Duratran II Label (E04811)

    Duratran II, 4" x 6" Thermal transfer paper label. Fanfolded. 6,000 labels/case.
    MSRP: $219.26 Price: $107.64
    In Stock
  • Intermec Duratran II Label (E17012)

    Duratran II, 3" x 1" Thermal transfer paper label. 8 roll case.
    MSRP: $114.45 Price: $95.28
    In Stock
  • Intermec Duratran II Label (E04810)

    Duratran II, 4" x 6".5" Thermal transfer paper label. Fanfolded. 6,000 labels/case.
    MSRP: $237.08 Price: $119.75
    In Stock
  • Intermec Duratran II Label (E15522)

    Duratran II, 4" x 1" Thermal transfer paper label. 8 roll case.
    MSRP: $152.52 Price: $148.18
    In Stock

Recommended Ribbons

  • Intermec Ribbons Ribbon (13634012)

    ThermaMax 3202 Resin, 4.1" x 900' Black Resin Ribbon. Compatible with Desktop Printers. 24 ribbon case. Used with polyester labels.
    Price: $1,733.67
    Ships in 3-5 Days
  • Intermec Ribbons Ribbon (12233111)

    ThermaMax 2202 Mid-Range, 3.15" x 900' Black Wax-Resin Ribbon. Compatible with Desktop Printers. Single ribbon. Used with polypropylene labels.
    MSRP: $28.34 Price: $21.69
    In Stock
  • Intermec EasyCoder PF8t Ribbon (13044304)

    ThermaMax 3202 Resin, 4.33" x 299' Black Resin Ribbon. Compatible with Desktop Printers. 6 ribbon case. Used with polyester labels.
    Price: $124.80
    In Stock
  • Intermec EasyCoder PF8t Ribbon (13044304-R)

    ThermaMax 3202 Resin, 4.33" x 299' Black Resin Ribbon, Compatible with Desktop printers and Polyester Labels, rolls/case: 1, Core Size: 0.5", single roll. Available as a case (13044304)
    MSRP: $21.05 Price: $20.64
    In Stock
