Additional Information
| Manufacturer AIDC | Intermec |
|---|---|
| Max Roll Outer Diameter | 5 |

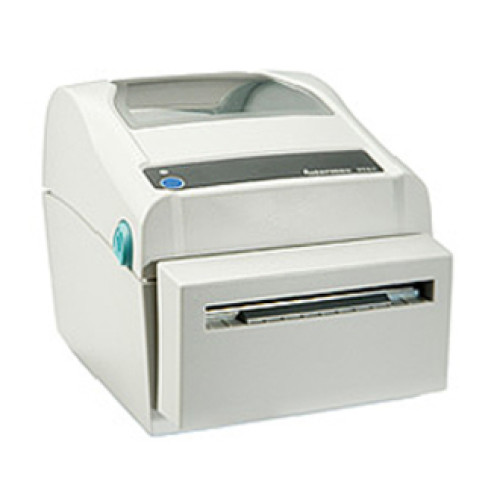

| Model Name | EasyCoder PF8t |
| Print Resolution | 203 dpi |
| Print Speed | 4 ips |
| Printer Type | Desktop |
| Printing Technology | Thermal Transfer |
Intermec EasyCoder PF8t Specs
Technical Information
- Maximum Mono Print Speed: 4 in/s
- Maximum Print Resolution: 203 dpi
- Print Color: Monochrome
- Maximum Print Width: 4.65"
- Recommended Use: Label Print
- Barcode Symbology Supported:
- Maxi Code
- PDF-417
- Data Matrix
- QR Code
- EAN
- UCC 128
General Information
- Product Type: Thermal Transfer Printer
- Product Series: PF
- Brand Name: Intermec
- Manufacturer: Intermec Technologies Corporation
- Product Model: PF8T
- Product Name: EasyCoder PF8T Thermal Label Printer
- Product Line: EasyCoder
Physical Characteristics
- Height: 6.8"
- Width: 8.9"
- Depth: 11.2"
- Form Factor: Desktop
Interfaces/Ports
- USB: Yes
- Serial Port: Yes
- Parallel Port: Yes
Other
- Platform Supported: PC
- Package Contents:
- EasyCoder PF8T Thermal Label Printer
- QuickGuide
- Connector Cables
- Software Media (Includes: label Design Software, Windows Driver and Documentation)
- EasyCoder PF8T Thermal Label Printer
- QuickGuide
- Connector Cables
- Software Media (Includes: label Design Software, Windows Driver and Documentation)
- Additional Information:
- One Print or Feed key
- 1GB Compact Flash
- Standard 32-bit processor
- One multi color LED indicator lamp
- All major 1-dimensional barcode symbologies are available
Media Types & Handling
- Maximum Label Width: 4.65"
- Maximum Label Length: 68"
- Media Sensor:
- Reflective Media Sensor
- Label Taken Sensor
- Label Core Size: 1"
- Ribbon Core Size: 0.50"
- Maximum Roll Diameter: 5"
Fonts & Emulation
- Language Emulation:
- EPL
- E-Sim
Power Description
- Input Voltage:
- 110 V AC
- 220 V AC
Memory
- Standard Memory: 8 MB
- Memory Technology: DRAM
- Flash Memory: 4 MB
Warranty
- Limited Warranty: 1 Year
