234998 Intermec

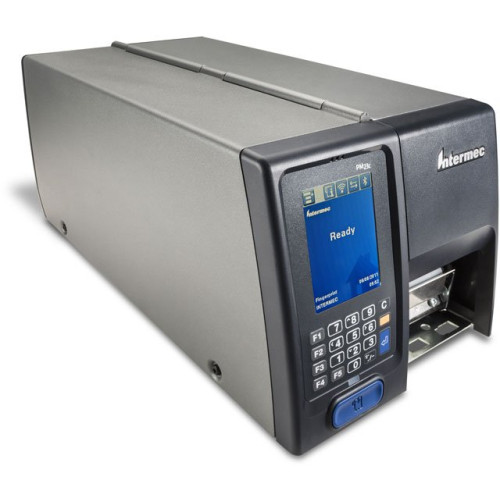

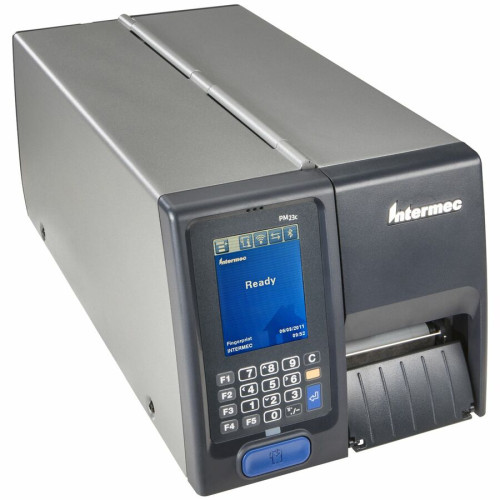

Intermec PM23c Bar code Printer Part # PM23CA0100000201

The PM23c mid-range industrial printer features a two-inch print width and a compact footprint, ideal for demanding applications in transportation, manufacturing, retail, distribution center and warehouse environments. As the third generation of Intermec industrial printers, the rugged PM Series incorporate features that increase uptime and reduce maintenance costs

PM23CA0100000201 - Intermec PM23c Bar code Printer

Part Details: PM23c, PM23 DESKTOP PRINTER, ICON INTERFACE, Ethernet, LONG DOOR, NO I/O 1, HANGER, TT203 dpi, US POWER CORD
InStock
MSRP: $1,690.00 Price: $1,119.46
Ship Free in 3-5 Days

Additional Information

Included Features Media Hanger
Interface Options Ethernet, Serial, USB
Label Core 1.5 inches, 3 inches
Manufacturer Intermec
Max Label Width 2.70
Max Roll Outer Diameter 6
Maximum Print Width 2.20
Print Method Thermal Transfer
Print Resolution 203 dpi
Print Speed 12
Printer Mobility Not Mobile
Printer Type Industrial
Product Condition New
Ribbon Core 1

Technical Information

  • Maximum Color Print Speed: 11.81 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Color
  • Maximum Print Width: 2.20"
  • Recommended Use: Label Print
  • Features: Icon-graphics
  • Barcode Symbology Supported:
    • UPC/EAN Shipping Container
    • UCC/EAN 128 Serial Shipping Container
    • LOGMARS
    • POSTNET
    • HIBCC
    • ISBT-128
    • GM1724

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: PM
  • Brand Name: Intermec
  • Manufacturer: Intermec Technologies Corporation
  • Product Model: PM23c
  • Product Name: PM23c Mid-Range Printer

Physical Characteristics

  • Form Factor: Desktop

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Media Types & Handling

  • Maximum Label Width: 2.70"
  • Media Type:
    • Label
    • Tag
    • Linered Media
    • Linerless
    • Ticket
    • Roll Fed
    • Fanfold
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8.38"

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Platform Supported: PC
  • Certifications & Standards:
    • PFC Regulation IEC320/C14
    • CE (EN55022 Class A)
    • FCC Class A
    • UL
    • cUL
    • D Mark
    • CCC

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Standby Power Consumption: 9 W
  • Maximum Power Consumption: 300 W
  • Power Source: AC Supply

Fonts & Emulation

  • Language Emulation:
    • IPL
    • ZPL
    • DPL
    • XML

Memory

  • Standard Memory: 128 MB
  • Memory Technology: SDRAM
  • Flash Memory: 128 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet
