235002 Intermec

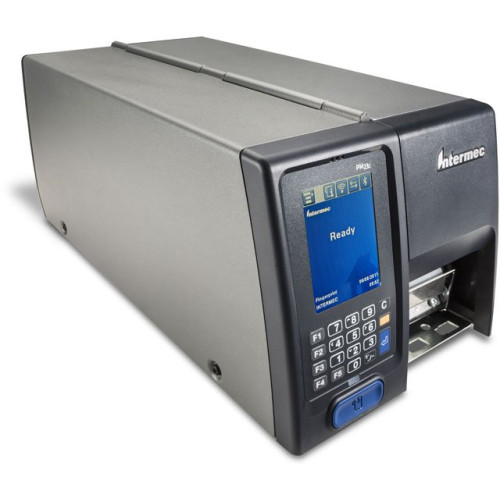

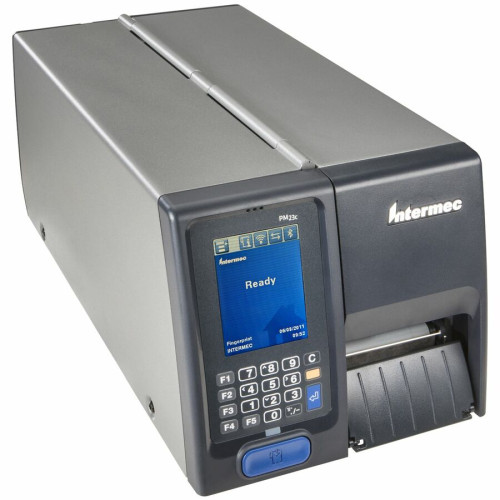

PM23CA1100000201 - Intermec PM23c Bar code Printer

PM23c, PM23 DESKTOP PRINTER, TOUCH USER INTERFACE, Ethernet, LONG DOOR, NO I/O, HANGER, TT203 dpi, US POWER CORD
InStock
$1,990.00 $1,281.40
Ships Today
Free Shipping
- +

Additional Information

Print Speed 12
Printer Type Industrial
Print Method Thermal Transfer
Print Resolution 203 dpi
Included Features Media Hanger
Interface Options USB
Maximum Print Width 2.20
Item Condition New
Manufacturer Intermec

Recommended Accessories

Cable, RS-232 Cable, 1.8 meters, DB-9F-DB-9M Assembly
$19.62
Ships Today
Free Shipping
- +
Printhead Cleaning Kit (25 Individual cleaner units per box)
$35.00 $28.70
Ships Today
Free Shipping
- +
Cable, USB-A to USB-B, 2meter (Use with CK30/31 225-709-001/225-709-002 comm dock for connection to PC.)
$47.00 $39.09
Ships Today
Free Shipping
- +
$140.00 $99.77
Ships Today
Free Shipping
- +
PM43, KIT, COLLAPSIBLE CORE (PM43A, PM43CA)
$45.00 $34.05
Ships Today
Free Shipping
- +

Recommended Labels

ThermaMax 3202 Resin, 3.1" x 900' Black Resin Ribbon. Compatible with Desktop Printers. 24 ribbon case. Used with polyester labels.
$820.63
Ships In 3-5 Days
- +
ThermaMax 1407 Wax, 3.1" x 900' Black Wax Ribbon. Compatible with Desktop Printers. 24 ribbon case. Used with paper labels.
$266.67
Ships In 3-5 Days
- +
ThermaMax 2202 Mid-Range, 4.09" x 900' Black Wax-Resin Ribbon. Compatible with Desktop Printers. 24 ribbon case. Used with polypropylene labels.
$714.17
Ships In 3-5 Days
- +
ThermaMax 1407 Wax, 2.35" x 900' Black Wax Ribbon. Compatible with Desktop Printers. 36 ribbon case. Used with paper labels.
$302.83
Ships In 3-5 Days
- +
Duratran II, 2" x 4" Thermal transfer paper label. 1450 labels/roll, 8 roll case. Also available as a roll (Part# E25879-R).
$194.40 $114.51
Ships Today
- +

Recommended Printheads

300 dpi, 2" printhead for the PM23
$290.00 $251.61
Ships In 3-5 Days
Free Shipping
- +

Recommended Ribbons

ThermaMax 3202 Resin, 3" x 500' Black Resin Ribbon, Compatible with Industrial printers and Polyester Labels, rolls/case: 36, Core Size: 1"
$868.59
Ships Today
- +
ThermaMax 2202 Mid-Range, 4.1" x 500' Black Wax-Resin Ribbon, Compatible with Industrial printers and Polypropylene Labels, rolls/case: 12, Core Size: 1"
$170.76
Ships Today
- +
ThermaMax 2202 Mid-Range, 3.2" x 299' Black Wax-Resin Ribbon, Compatible with Desktop printers and Polypropylene Labels, rolls/case: 24, Core Size: 0.5"
$219.46
Ships In 3-5 Days
- +
ThermaMax 2202 Mid-Range, 2.35" x 900' Black Wax-Resin Ribbon. Compatible with Desktop Printers. 24 ribbon case. Used with polypropylene labels.
Call For Price
Ships In 3-5 Days
ThermaMax 2202 Mid-Range, 2.5" x 299' Black Wax-Resin Ribbon. Compatible with Desktop Printers. Single ribbon. Used with polypropylene labels.
$13.57
Ships Today
- +

Technical Information

  • Maximum Color Print Speed: 11.81 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Color
  • Maximum Print Width: 2.20"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • UPC/EAN Shipping Container
    • UCC/EAN 128 Serial Shipping Container
    • LOGMARS
    • POSTNET
    • HIBCC
    • ISBT-128
    • GM1724

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: PM
  • Brand Name: Intermec
  • Manufacturer: Intermec Technologies Corporation
  • Product Model: PM23c
  • Product Name: PM23c Mid-Range Printer

Physical Characteristics

  • Form Factor: Desktop

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Media Types & Handling

  • Maximum Label Width: 2.70"
  • Media Type:
    • Label
    • Tag
    • Linered Media
    • Linerless
    • Ticket
    • Roll Fed
    • Fanfold
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8.38"

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Platform Supported: PC
  • Certifications & Standards:
    • PFC Regulation IEC320/C14
    • CE (EN55022 Class A)
    • FCC Class A
    • UL
    • cUL
    • D Mark
    • CCC

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Standby Power Consumption: 9 W
  • Maximum Power Consumption: 300 W
  • Power Source: AC Supply

Fonts & Emulation

  • Language Emulation:
    • IPL
    • ZPL
    • DPL
    • XML

Memory

  • Standard Memory: 128 MB
  • Memory Technology: SDRAM
  • Flash Memory: 128 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Display & Graphics

  • Touchscreen: Yes
  • Display Screen Type: LCD
