Additional Information
| Included Features | Media Hanger |
|---|---|
| Interface Options | Ethernet, Serial (RS-232), USB |
| Manufacturer | Intermec |
| Max Roll Outer Diameter | 6 |
| Model Name | PM23c |
| Print Resolution | 203 dpi |
| Print Speed | 12 ips |
| Printer Type | Industrial |
| Printing Technology | Direct Thermal |

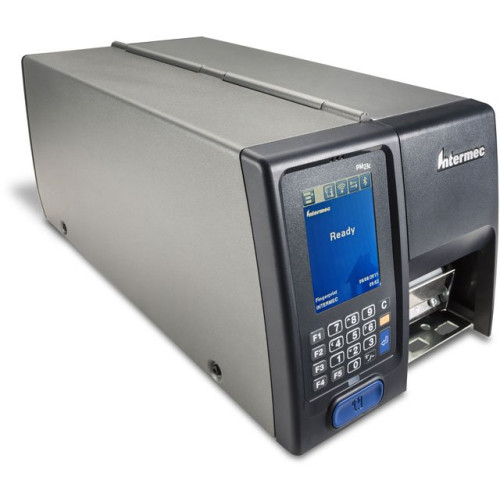

Intermec PM23c Specs
Technical Information
- Maximum Color Print Speed: 11.81 in/s
- Maximum Print Resolution: 203 dpi
- Print Color: Color
- Maximum Print Width: 2.20"
- Recommended Use: Label Print
- Features:
- Real Time Clock
- Rewinder
- Barcode Symbology Supported:
- UPC/EAN Shipping Container
- UCC/EAN 128 Serial Shipping Container
- LOGMARS
- POSTNET
- HIBCC
- ISBT-128
- GM1724
General Information
- Product Type: Direct Thermal/Thermal Transfer Printer
- Product Series: PM
- Brand Name: Intermec
- Manufacturer: Intermec Technologies Corporation
- Product Model: PM23c
- Product Name: PM23c Mid-Range Printer
Physical Characteristics
- Form Factor: Desktop
Interfaces/Ports
- USB: Yes
- Serial Port: Yes
Media Types & Handling
- Maximum Label Width: 2.70"
- Media Type:
- Label
- Tag
- Linered Media
- Linerless
- Ticket
- Roll Fed
- Fanfold
- Media Sensor:
- Transmissive Media Sensor
- Reflective Media Sensor
- Label Taken Sensor
- Label Core Size: 3"
- Ribbon Core Size: 1"
- Maximum Roll Diameter: 8.38"
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority: RoHS
- Platform Supported: PC
- Certifications & Standards:
- PFC Regulation IEC320/C14
- CE (EN55022 Class A)
- FCC Class A
- UL
- cUL
- D Mark
- CCC
Power Description
- Input Voltage:
- 110 V AC
- 220 V AC
- Standby Power Consumption: 9 W
- Maximum Power Consumption: 300 W
- Power Source: AC Supply
Fonts & Emulation
- Language Emulation:
- IPL
- ZPL
- DPL
- XML
Memory
- Standard Memory: 128 MB
- Memory Technology: SDRAM
- Flash Memory: 128 MB
Network & Communication
- Ethernet: Yes
- Ethernet Technology: Fast Ethernet
Display & Graphics
- Touchscreen: Yes
- Display Screen Type: LCD
