215142 Intermec

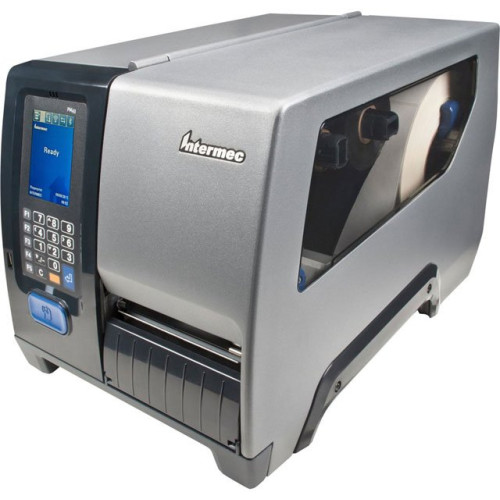

PM43A11010000201 - Intermec PM43 Bar code Printer

PM43, Thermal transfer Printer, 203 dpi, Touch Display. USB, Ethernet, Serial, Parallel Interfaces. Fixed media hanger.
InStock
$2,240.00 $1,330.19
Ships Today
Free Shipping
- +

Description

The Intermec PM43 are ready to deliver maximum uptime. Both models are available with either a tamper-proof color touch-screen in 10 languages or a universal icon interface. Reduce your total workforce training and device support needs with immediate notifications via the printer and the elimination of reconfiguration due to UI tampering.
  • Large, color, multilingual, tamper-proof touch screen, or icon user interface
  • \"No-touch\" configuration capabilities
  • The only CCX- and Wi-Fi-certified fixed printer with standard IPv6 implementation
  • Precision Print, for consistent bar-code printing with pinpoint accuracy
  • Multilingual webpage loaded on every printer ensures easy device monitoring
  • Strong metal structure with metal door that can be locked for media protection
  • Fastest throughput in its class
  • Powerful programmable capability, with ability to directly connect peripherals
  • Most connectivity options of any printer on the market

Additional Information

Print Speed 12
Printer Type Industrial
Print Method Thermal Transfer
Print Resolution 203 dpi
Interface Options Ethernet
Maximum Print Width 4.25
Item Condition New
Manufacturer Intermec

Recommended Accessories

Cable, RS-232 Cable, 1.8 meters, DB-9F-DB-9M Assembly
$19.62
Ships Today
Free Shipping
- +
Printhead Cleaning Kit (25 Individual cleaner units per box)
$35.00 $28.70
Ships Today
Free Shipping
- +
Cable, USB-A to USB-B, 2meter (Use with CK30/31 225-709-001/225-709-002 comm dock for connection to PC.)
$47.00 $39.09
Ships Today
Free Shipping
- +
$140.00 $99.77
Ships Today
Free Shipping
- +
PM43, KIT, COLLAPSIBLE CORE (PM43A, PM43CA)
$45.00 $34.05
Ships Today
Free Shipping
- +

Recommended Labels

ThermaMax 3202 Resin, 3.1" x 900' Black Resin Ribbon. Compatible with Desktop Printers. 24 ribbon case. Used with polyester labels.
$820.63
Ships In 3-5 Days
- +
ThermaMax 1407 Wax, 3.1" x 900' Black Wax Ribbon. Compatible with Desktop Printers. 24 ribbon case. Used with paper labels.
$266.67
Ships In 3-5 Days
- +
ThermaMax 2202 Mid-Range, 4.09" x 900' Black Wax-Resin Ribbon. Compatible with Desktop Printers. 24 ribbon case. Used with polypropylene labels.
$714.17
Ships In 3-5 Days
- +
ThermaMax 1407 Wax, 2.35" x 900' Black Wax Ribbon. Compatible with Desktop Printers. 36 ribbon case. Used with paper labels.
$302.83
Ships In 3-5 Days
- +
Duratran II, 2" x 4" Thermal transfer paper label. 1450 labels/roll, 8 roll case. Also available as a roll (Part# E25879-R).
$194.40 $114.51
Ships Today
- +

Recommended Printheads

PM43, Replacement Printhead Kit, 203 dpi, Compatible Printer Model PM43
$450.00 $390.43
Ships Today
Free Shipping
- +
PM43, Replacement Printhead Kit, 300 dpi, Compatible Printer Model PM43
$525.00 $455.50
Ships Today
Free Shipping
- +

Recommended Ribbons

ThermaMax 3202 Resin, 3" x 500' Black Resin Ribbon, Compatible with Industrial printers and Polyester Labels, rolls/case: 36, Core Size: 1"
$868.59
Ships Today
- +
ThermaMax 2202 Mid-Range, 4.1" x 500' Black Wax-Resin Ribbon, Compatible with Industrial printers and Polypropylene Labels, rolls/case: 12, Core Size: 1"
$170.76
Ships Today
- +
ThermaMax 2202 Mid-Range, 3.2" x 299' Black Wax-Resin Ribbon, Compatible with Desktop printers and Polypropylene Labels, rolls/case: 24, Core Size: 0.5"
$219.46
Ships In 3-5 Days
- +
ThermaMax 2202 Mid-Range, 2.35" x 900' Black Wax-Resin Ribbon. Compatible with Desktop Printers. 24 ribbon case. Used with polypropylene labels.
Call For Price
Ships In 3-5 Days
ThermaMax 2202 Mid-Range, 2.5" x 299' Black Wax-Resin Ribbon. Compatible with Desktop Printers. Single ribbon. Used with polypropylene labels.
$13.57
Ships Today
- +

Recommended Warranties

PM43, Full Comprehensive, 5 Day Turn, 3 Year DayOne
$348.00 $259.95
Ships In 3-5 Days
Free Shipping
- +
PM43, Full Comprehensive, 5 Day Turn, 5 Year DayOne
$515.00 $384.70
Ships In 3-5 Days
Free Shipping
- +
PM43, Full Comprehensive, 2 Day Turn, 3 Year DayOne
$414.00 $309.25
Ships In 3-5 Days
Free Shipping
- +
PM43, Wear and Tear, 5 Day Turn, 3 Year
$321.00 $239.78
Ships In 3-5 Days
Free Shipping
- +
PM43, CUTTER, Full Comprehensi ve, 5 Day Turn, 3 Year DayOne
$446.00 $333.16
Ships In 3-5 Days
Free Shipping
- +

Technical Information

  • Maximum Mono Print Speed: 12 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.25"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • UPC/EAN Shipping Container
    • UCC/EAN 128 Serial Shipping Container
    • LOGMARS
    • POSTNET
    • HIBCC
    • ISBT-128
    • GM1724
    • Code 93
    • Matrix 2 of 5
    • Industrial 2 of 5
    • Code 39
    • UCC 128
    • EAN 128
    • Code 49
    • QR Code
    • Maxi Code
    • Aztec Code
    • Macro PDF-417
    • Codabar
    • Code 11
    • Code 128
    • Code 16K
    • UPC
    • Interleaved 2 of 5
    • PDF-417
    • MSI PLESSEY
    • Plessey
    • Data Matrix
    • Planet Code
    • Standard 2 of 5
    • Grid Matrix
    • EAN/JAN

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: PM
  • Brand Name: Intermec
  • Manufacturer: Intermec Technologies Corporation
  • Product Model: PM43
  • Product Name: PM43 Label Printer

Physical Characteristics

  • Height: 11.6"
  • Width: 11.2"
  • Depth: 19"
  • Form Factor: Desktop
  • Weight (Approximate): 34.88 lb

Interfaces/Ports

  • USB: Yes
  • Parallel Port: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • ENERGY STAR
    • RoHS
  • Platform Supported: PC
  • Package Contents:
    • PFC Regulation: IEC320/C14
    • CE (EN55022 Class A)
    • FCC Class A
    • UL/cUL
    • C-Tick
    • D Mark
    • CCC
    • PFC Regulation: IEC320/C14
    • CE (EN55022 Class A)
    • FCC Class A
    • UL/cUL
    • C-Tick
    • D Mark
    • CCC

Media Types & Handling

  • Maximum Label Width: 4.50"
  • Media Type:
    • Ticket
    • Tag
    • Linered Label
    • Linerless
    • Roll Fed
    • Fanfold
    • Gap
    • Notch
    • Black Mark
    • Continuous Label
  • Media Thickness: 10.40 mil
  • Media Sensor: Transmissive Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8.40"

Fonts & Emulation

  • Language Emulation:
    • IPL
    • Fingerprint
    • DSim
    • ZSim
    • XML
    • ZPL

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Standby Power Consumption: 9 W
  • Maximum Power Consumption: 300 W
  • Power Source: AC Supply

Memory

  • Standard Memory: 128 MB
  • Memory Technology: SDRAM
  • Flash Memory: 128 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Display & Graphics

  • Touchscreen: Yes
