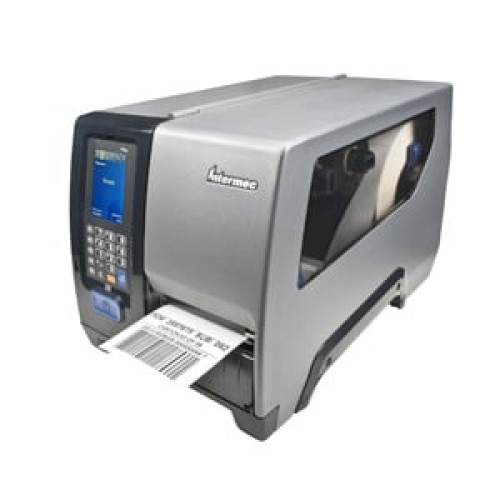

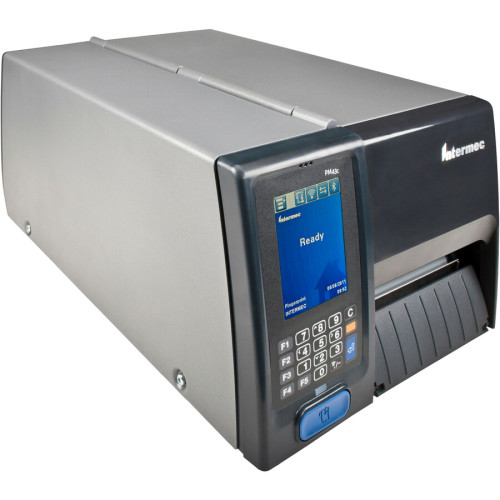

Intermec PM43CA Barcode Label Printer Intermec PM43CA Barcode Label Printer

Intermec PM43CA Barcode Label Printer
Part #: PM43CA1150000201 | SKU: INT192962

The Intermec PM43c compact industrial printers are ready to deliver maximum uptime. Both models are available with either a tamper-proof color touch-screen in 10 languages or a universal icon interface. Reduce your total workforce training and device support needs with immediate notifications via the printer and the elimination of reconfiguration due to UI tampering.

Intermec PM43CA Barcode Label Printer

Part Details: Industrial Printer - Intermec PM43CA - Thermal Transfer - 203 dpi - 12ips - Media Hanger - Ethernet/Serial/USB - Fixed Media Hanger - US Power Cord - Full Touch Display - Dome Door and Front Door
Need a different version of the Intermec PM43c Barcode Label Printer? View all 26 configurations

Additional Information

Included Features Media Hanger
Interface Options Ethernet, Serial (RS-232), USB, USB Host
Manufacturer Intermec
Max Roll Outer Diameter 8.38
Model Name PM43c
Print Resolution 203 dpi
Print Speed 12 ips
Printer Type Industrial
Printing Technology Thermal Transfer
Ribbon Core Size 1 inch
Intermec PM43c Specs Intermec PM43c Specs (pdf)

Technical Information

  • Maximum Mono Print Speed: 12 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.17"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • UPC/EAN Shipping Container
    • UCC/EAN 128 Serial Shipping Container
    • LOGMARS
    • POSTNET
    • HIBCC
    • ISBT-128
    • GM1724
    • Code 93
    • Matrix 2 of 5
    • Industrial 2 of 5
    • Code 39
    • UCC 128
    • EAN 128
    • Code 49
    • QR Code
    • Maxi Code
    • Aztec Code
    • Macro PDF-417
    • Codabar
    • Code 11
    • Code 128
    • Code 16K
    • UPC
    • Interleaved 2 of 5
    • PDF-417
    • MSI PLESSEY
    • Plessey
    • Data Matrix
    • Planet Code
    • Standard 2 of 5
    • Grid Matrix
    • EAN/JAN

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: PM
  • Brand Name: Intermec
  • Manufacturer: Intermec Technologies Corporation
  • Product Model: PM43C
  • Product Name: PM43C Label Printer

Physical Characteristics

  • Height: 7.1"
  • Width: 9.9"
  • Depth: 17"
  • Form Factor: Desktop
  • Weight (Approximate): 27.56 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.50"
  • Media Type:
    • Ticket
    • Tag
    • Linered Label
    • Linerless
    • Roll Fed
    • Fanfold
    • Gap
    • Notch
    • Black Mark
    • Continuous Label
  • Media Thickness: 10.40 mil
  • Media Sensor: Transmissive Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8.40"

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • ENERGY STAR
    • RoHS
  • Platform Supported: PC
  • Certifications & Standards:
    • PFC Regulation: IEC320/C14
    • CE (EN55022 Class A)
    • FCC Class A
    • UL/cUL
    • C-Tick
    • D Mark
    • CCC

Fonts & Emulation

  • Language Emulation:
    • IPL
    • Fingerprint
    • DSim
    • ZSim
    • XML
    • ZPL

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Standby Power Consumption: 9 W
  • Maximum Power Consumption: 300 W
  • Power Source: AC Supply

Memory

  • Standard Memory: 128 MB
  • Memory Technology: SDRAM
  • Flash Memory: 128 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Display & Graphics

  • Touchscreen: Yes
Extended Details
