Additional Information
| Interface Options | Ethernet, Wi-Fi. |
|---|---|
| Labels Per Day | 5,001 - 10,000 |
| Manufacturer AIDC | Intermec |
| Max Roll Outer Diameter | 8.38 |
| Model Name | EasyCoder PM4i |
| Print Resolution | 203 dpi |
| Print Speed | 12 ips |
| Printer Type | Industrial |
| Printing Technology | Thermal Transfer |
| Ribbon Core Size | 1 inch |

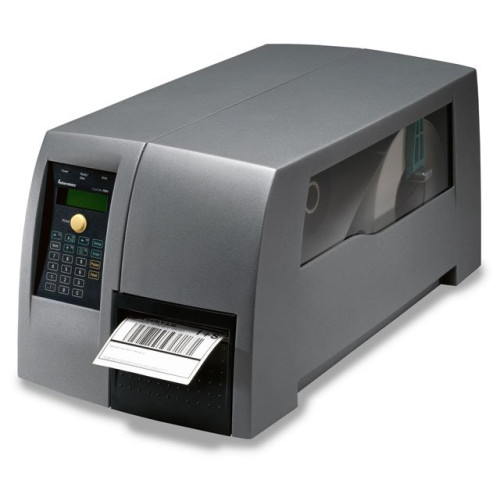

Intermec EasyCoder PM4i Specs
Technical Information
- Maximum Mono Print Speed: 8 in/s
- Maximum Print Resolution: 203 dpi
- Print Color: Monochrome
- Maximum Print Width: 4.09"
- Recommended Use: Label Print
- Features: Self Strip
- Barcode Symbology Supported:
- Code 93
- Code 128
- Interleaved 2 of 5
- Straight 2 of 5
- POSTNET
- Code One
- UPC/EAN
- JIS-ITF
- Code 16K
- Code 49
- Data Matrix
- PDF-417
- QR Code
- Micro PDF-417
- Maxi Code
- Plessey
- MSI
General Information
- Product Type: Direct Thermal/Thermal Transfer Printer
- Brand Name: Intermec
- Manufacturer: Intermec Technologies Corporation
- Product Model: PM4i
- Product Name: EasyCoder PM4i Label Printer
- Product Line: EasyCoder
Physical Characteristics
- Height: 10.3"
- Width: 11.7"
- Depth: 21.4"
- Form Factor: Desktop
Interfaces/Ports
- USB: Yes
- Serial Port: Yes
Media Types & Handling
- Maximum Label Width: 4.50"
- Maximum Label Length: 40"
- Media Type:
- Roll Fed
- Fanfold
- Label
- Tag
- Ticket
- Media Thickness: 8.70 mil
- Media Sensor:
- Transmissive Media Sensor
- Reflective Media Sensor
- Label Taken Sensor
- Label Core Size: 3"
- Ribbon Core Size: 1"
- Maximum Roll Diameter: 8.38"
Fonts & Emulation
- Language Emulation:
- Fingerprint
- IPL
- ZPL
- DPL
- XML
Network & Communication
- Ethernet: Yes
- Wireless LAN: Yes
- Ethernet Technology: Fast Ethernet
Power Description
- Input Voltage:
- 110 V AC
- 220 V AC
Memory
- Standard Memory: 8 MB
- Memory Technology: SDRAM
- Flash Memory: 4 MB
Other
- Platform Supported: PC
Recommended Accessories for Model: Intermec EasyCoder PM4i Barcode Label Printer
-
Honeywell EasyCoder PM4i Accessory
Part #: 203-886-001 | SKU: HON66462Self-Strip Field Upgrade (for the PM4i)MSRP: $131.24 Price: $95.99 -
Honeywell EasyCoder PM4i Printer Accessories
Part #: 1-207201-800 | SKU: HON44440RFID Field Option Kit (915MHz) for the PM4iMSRP: $1,995.00 Price: $1,459.08 -
Honeywell PC43d Accessory
Part #: 1-971141-800 | SKU: HON44472Parallel Interface Card (IEEE 1284 Interface, Kit/ASX)MSRP: $441.84 Price: $323.16 -
Honeywell EasyCoder PM4i Accessory
Part #: 1-010045-900 | SKU: HON42374Printhead Assembly (200 dpi, THP, Centered) for the EasyCoder PM4iMSRP: $785.91 Price: $616.26 -
Intermec EasyCoder PM4i Accessory
Part #: 1-206012-900 | SKU: INT44439Cutter (Upgrade) for the EasyCoder PM4i
Recommended Labels for Model: Intermec EasyCoder PM4i Barcode Label Printer
-
Honeywell Duratran II Barcode Label
Part #: E06175 | SKU: HON101994" wide x 6" long, Thermal Transfer Paper material featuring our Permanent Acrylic adhesive. The carrier material has perforation between each label and is wound out on a 3" core, with a 8" outer diameter roll. 1000 labels/roll. 4 rolls/case. Priced per case. This Thermal Transfer Paper is ideal for applications that require limited material durability and permanent adhesion.Price: $56.10 -
Honeywell Duratran II Barcode Label
Part #: E25879 | SKU: HON1289232" x 4" Thermal transfer paper label. 1450 labels/roll, 8 roll case. Also available as a roll (Part# E25879-R). -
Honeywell Duratran II Barcode Label
Part #: E06724 | SKU: HON553924" x 1" Thermal transfer paper label. 5333 labels/roll, 8 roll case. -
Honeywell Duratran II Barcode Label
Part #: E25878 | SKU: HON1289222" x 3" Thermal transfer paper label. 1920 labels/roll, 8 roll case. Also available as a roll (Part# E25878-R). -
Honeywell Duratran II Barcode Label
Part #: E09603 | SKU: HON201594" x 3" Thermal transfer paper label. 1920 labels/roll, 4 roll case.
Recommended Printheads for Model: Intermec EasyCoder PM4i Barcode Label Printer
-
Intermec EasyCoder PM4i Printhead
Part #: 710-047-900 | SKU: INT86538PM4I, Replacement Printhead Kit, 406 dpi, Compatible Printer Model PM4I -
Honeywell Printheads Printhead
Part #: 1-010044-900 | SKU: HON31148Replacement Printhead Kit, 300 dpi, Compatible Printer Model EasyCoder PM4i -
Honeywell EasyCoder PM4i Printhead
Part #: 1-010043-900 | SKU: HON25200Replacement Printhead Kit, 203 dpi, Compatible Printer Model EasyCoder PM4i -
Honeywell Printheads Printhead
Part #: 1-010043-910 | SKU: HON37131Replacement Printhead Kit, 203 dpi, Compatible Printer Model EasyCoder PM4i -
Intermec EasyCoder PM4i Printhead
Part #: 1-010043-90 | SKU: INT15939EasyCoder PM4i, Replacement printhead, 203 dpi.
Recommended Ribbons for Model: Intermec EasyCoder PM4i Barcode Label Printer
-
Honeywell EasyCoder PM4i Ribbon
Part #: 12234118 | SKU: HON1918804.09" x 1502' Black Wax/Resin Ribbon. Compatible with Industrial Printers. 12 ribbon case. Used with polypropylene labels. -
Honeywell ThermaMax 3202 Resin Thermal Transfer Ribbon
Part #: 13023006 | SKU: HON84663" x 500' Black Resin Ribbon, Compatible with Industrial printers and Polyester Labels, Rolls per Case: 36, Core Size: 1" -
Honeywell ThermaMax 2202 Mid-Range Ribbon
Part #: 12084106 | SKU: HON8457Wax-Resin Ribbon, 4.1" x 500' Black, Rolls per Case: 12, Core Size: 1". Compatible with Industrial printers and Polypropylene Labels. -
Honeywell ThermaMax 1407 Wax Thermal Transfer Ribbon
Part #: 11072006 | SKU: HON84282" x 500' Black Wax Ribbon. Compatible with Industrial Printers. 36 ribbon case. Used with paper labels. -
Honeywell ThermaMax 2202 Mid-Range Thermal Transfer Ribbon
Part #: 12072218 | SKU: HON84552.2" x 1500' Black Wax/Resin Ribbon. Compatible with Industrial Printers. 12 ribbon case. Used with polypropylene labels.
Recommended Warranties for Model: Intermec EasyCoder PM4i Barcode Label Printer
-
Honeywell EasyCoder PM4i Service Contract
Part #: SVCPM4-OS2WT1R | SKU: HON363914PM4I, 2 Day Response, On-site, 1 Year RenewalMSRP: $333.15 Price: $265.58 -
Honeywell EasyCoder PM4i Service Contract
Part #: SVCPM4-OS1WT1R | SKU: HON363911PM4I, Next Day Response, On-site, 1 Year RenewalMSRP: $354.60 Price: $282.68 -
Honeywell EasyCoder PM4i Service Contract
Part #: SVCPM4-OS2WT3 | SKU: HON363915PM4I, 2 Day Response, On-site, 3 YearMSRP: $645.75 Price: $514.77 -
Honeywell EasyCoder PM4i Service Contract
Part #: SVCPM4-OS1WT3 | SKU: HON363912PM4I, Next Day Response, On-site, 3 YearMSRP: $752.85 Price: $600.14 -
Honeywell EasyCoder PM4i Service Contract
Part #: SVCPM4-OS1WT5 | SKU: HON363913PM4I, Next Day Response, On-site, 5 YearMSRP: $1,128.75 Price: $899.81
