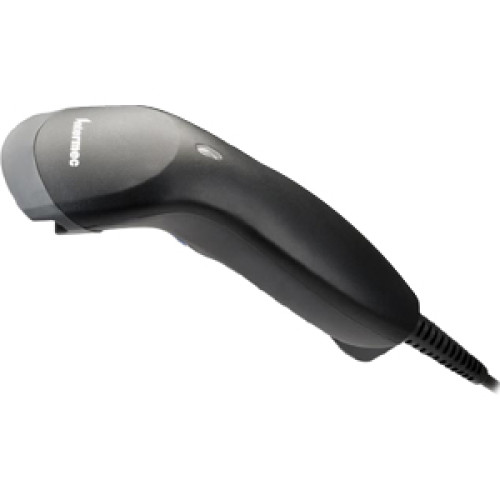

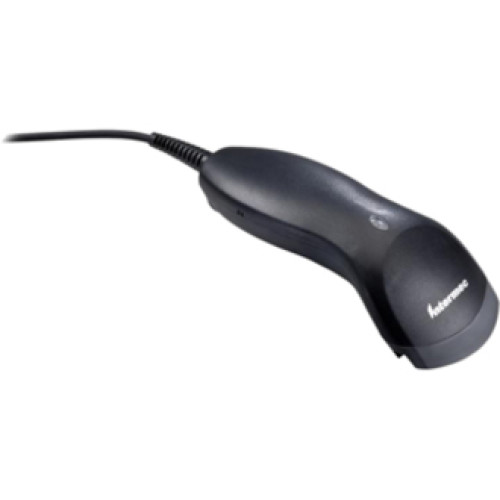

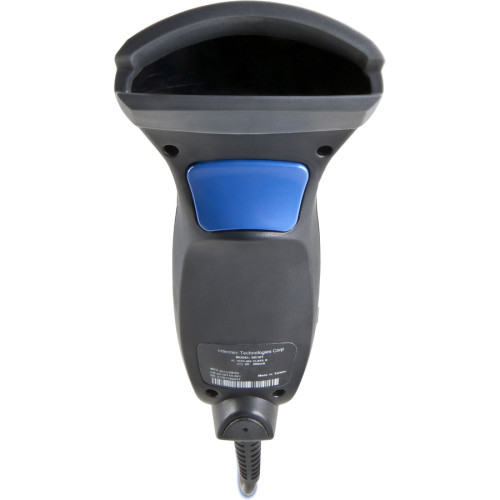

Intermec SG10T Barcode Scanner
Part #: SG10T1D-USB001 | SKU: INT146457

Intermec's SG10T is a simple, affordable and reliable handheld bar code reader designed for small to medium sized businesses. The SG10T reads all common 1D bar codes with ease. No complicated set up, no accessories required to complete the solution and no cordless connections to fuss with. This straightforward approach enables the SG10T to be the best and only choice when all you need to do is read a 1D bar code.

Intermec SG10T Barcode Scanner

Part Details: SG10T, USB Kit with cable, power from host

Need a different version of the Intermec SG10T Barcode Scanner? View all 2 configurations

Additional Information

Form Factor	Handheld
Manufacturer	Intermec
Model Name	SG10T
Scanner Capability	1D

Intermec SG10T Specs (pdf)

Technical Information

Barcode Dimension: 1D
Scan Pattern: Bi-directional
Scan Rate: 130 scan/s
Connectivity Technology: Cable
Image Sensor:
- Linear
- Imager
Barcode Symbology Supported:
- Codabar
- Code 93
- Code 39
- Full ASCII Code39
- Code 128
- EAN 128
- Interleaved 2 of 5
- Matrix 2 of 5
- Standard 2 of 5
- Code 11
- UPC-A
- UPC-E
- EAN-8
- EAN-13
- GS1 DataBar Omni-Directional
- GS1 DataBar Limited
- GS1 DataBar Expanded
- Codabar
- Code 93
- Code 39
- Full ASCII Code39
- Code 128
- EAN 128
- Interleaved 2 of 5
- Matrix 2 of 5
- Standard 2 of 5
- Code 11
- UPC-A
- UPC-E
- EAN-8
- EAN-13
- GS1 DataBar Omni-Directional
- GS1 DataBar Limited
- GS1 DataBar Expanded
Maximum Scan Resolution: 5 mil
Depth of Field:
- 0 mil - 1.57"@5 mil - Code 39
- 0 mil - 3.54"@10 mil - Code 39
- 0 mil - 3.94"@13 mil - UPC/ EAN
- 0 mil - 4.33"@15 mil - Code 39
- 0.39" - 4.72"@20 mil - Code 39

General Information

Product Type: Handheld Barcode Scanner
Brand Name: Intermec
Manufacturer: Intermec Technologies Corporation
Product Model: SG10T
Product Name: SG10T Handheld Barcode Reader

Physical Characteristics

Height: 2.1"
Width: 2.6"
Depth: 6.5"
Weight (Approximate): 3.70 oz

Interfaces/Ports

Host Interface: USB

Other

Green Compliant: Yes
Green Compliance Certificate/Authority:
- RoHS
- China RoHS
- REACH
- WEEE
Certifications & Standards:
- FCC Part 15 Class B (United States)
- Industry Canada ICES-003 Class B (Canada)
- EN 55022: 2006/ A1: 2007
- CISPR Publication 22: 2005/ A1:2005/ A2:2006, Class B Limits and Methods
- EN 55024: 1998/ A1:2001/ A2: 2003 (CISPR 24) ITE
- UL
- EN 60950 (2nd Edition)
- 60825-1
- CE Marked

Warranty

Limited Warranty: 3 Year
