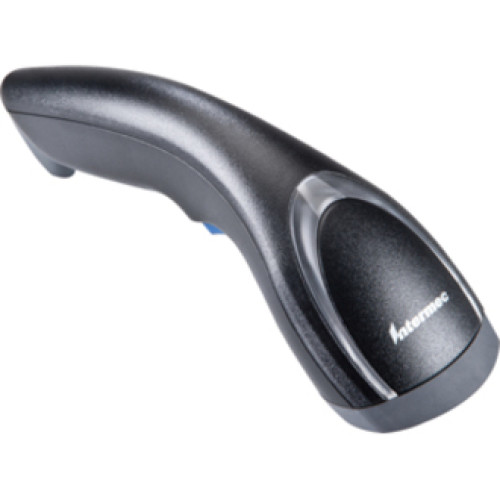

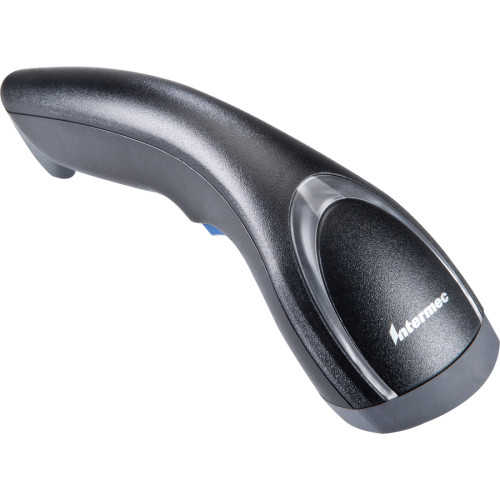

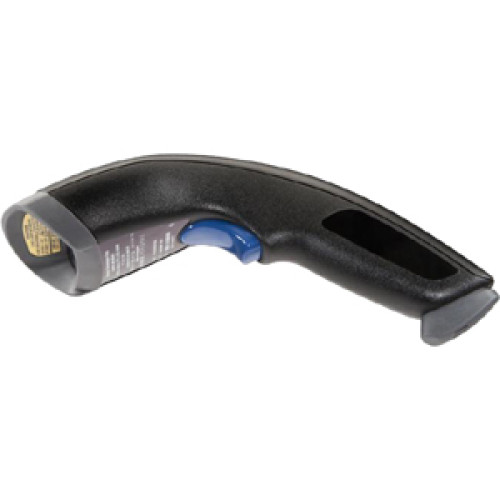

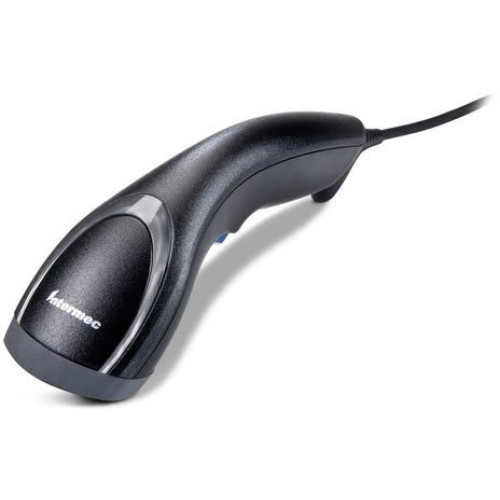

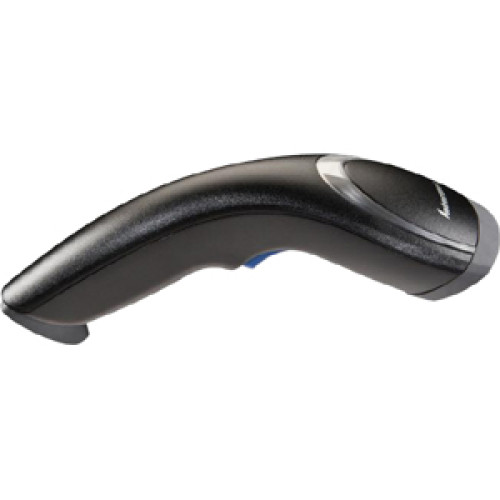

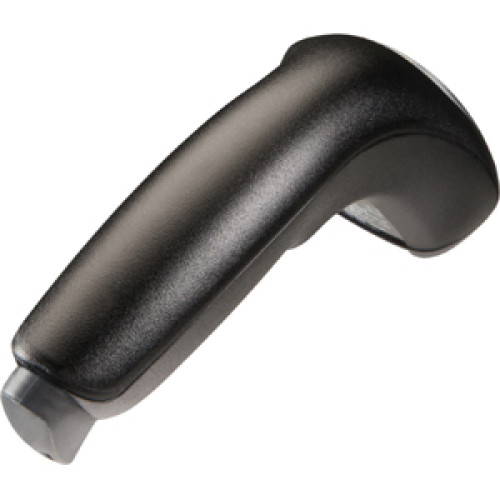

Intermec SG20 Series Barcode Scanner
Part #: SG20B1D-002 | SKU: INT183065

The Intermec SG20 Series features the industry’s fastest barcode reading technology, providing more than 50 times the motion tolerance of typical scanners. Select between Bluetooth wireless for up to 10 meters of range (32.8 feet), or the simplicity of tethered (cabled) connectivity. The stylish design of the SG20 Series sets it apart from traditional gun-shaped handheld scanners. The Intermec SG20 Series can be quickly and easily configured with Intermec exclusive EasySet PC programming tool.

Intermec SG20 Series Barcode Scanner

Part Details: Scanner, Honeywell-Intermec SG20B, 1D Imager, Cordless, Color: Black, Bluetooth, USB, RS-232 and Keyboard Wedge Interfaces.

Need a different version of the Honeywell SG20 Series Barcode Scanner? View all 22 configurations

Additional Information

Manufacturer	Intermec
Model Name	SG20 Series
Scanner Capability	1D

Intermec SG20 Series Specs (pdf)

Technical Information

Barcode Dimension: 1D
Scan Pattern: Omni-directional
Connectivity Technology: Wireless
Light Source: LED
Image Sensor: Imager
Barcode Symbology Supported:
- MSI
- Matrix 2 of 5
- Interleaved 2 of 5
- GS1 DataBar Omnidirectional
- GS1 DataBar Expanded
- GS1 Composite (linear only)
- GS1 DataBar Limited
- Codabar
- Code 11
- Code 39
- Code 93/93i
- Code 128 / GS1-128
- EAN/UPC
- Plessey
- Standard 2 of 5
- Telepen
- MSI
- Matrix 2 of 5
- Interleaved 2 of 5
- GS1 DataBar Omnidirectional
- GS1 DataBar Expanded
- GS1 Composite (linear only)
- GS1 DataBar Limited
- Codabar
- Code 11
- Code 39
- Code 93/93i
- Code 128 / GS1-128
- EAN/UPC
- Plessey
- Standard 2 of 5
- Telepen
Maximum Scan Resolution: 6 mil

General Information

Product Type: Handheld Barcode Scanner
Product Series: SG20
Brand Name: Intermec
Manufacturer: Intermec Technologies Corporation
Product Model: SG20B
Product Name: SG20B General Duty Imager

Physical Characteristics

Height: 2.6"
Width: 2.4"
Depth: 7.9"
Color: Black
Weight (Approximate): 6.17 oz

Other

Green Compliant: Yes
Green Compliance Certificate/Authority:
- China RoHS
- RoHS
- REACH
- WEEE
Certifications & Standards:
- FCC Part 15 Class B (United States)
- Industry Canada ICES-003 Class B (Canada)
- EN 55022: CISPR 22 Class B (European Union)
- UL
- CE Mark (EU)
- NOM (Mexico)
- C-TICK (Australia and New Zealand)
- CQC and SRRS (China)
- IDA (Singapore)
- ANATEL (Brazil)
- Industry Canada ICES-003 Class B (Canada)
- IP30
Platform Supported: PC

Battery Information

Battery Chemistry: Lithium Ion (Li-Ion)

Network & Communication

Bluetooth: Yes

Warranty

Limited Warranty: 3 Year
