Intermec SG20 Series Barcode Scanner Intermec SG20 Series Barcode Scanner Intermec SG20 Series Barcode Scanner Intermec SG20 Series Barcode Scanner Intermec SG20 Series Barcode Scanner

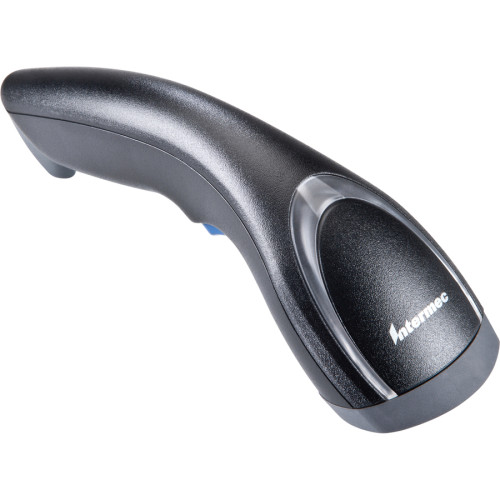

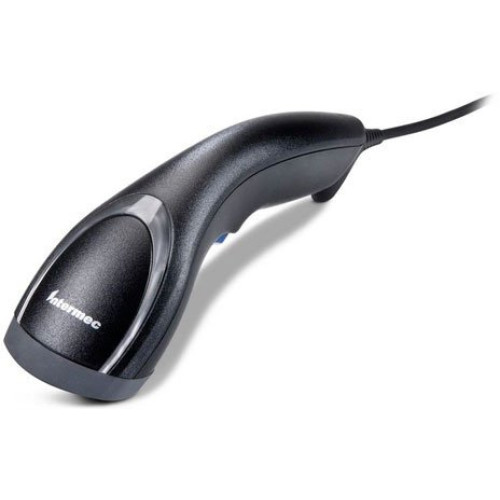

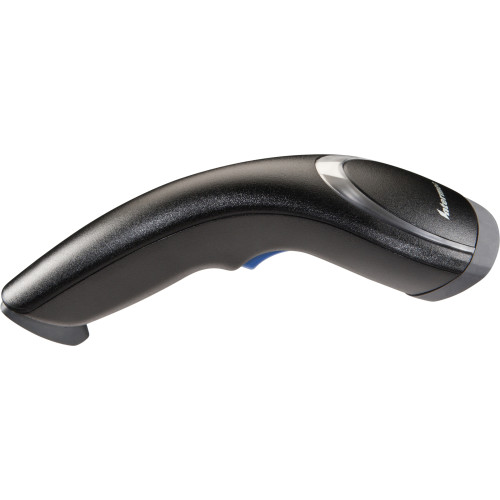

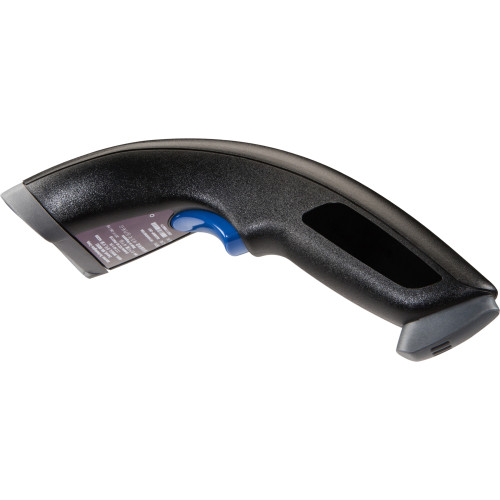

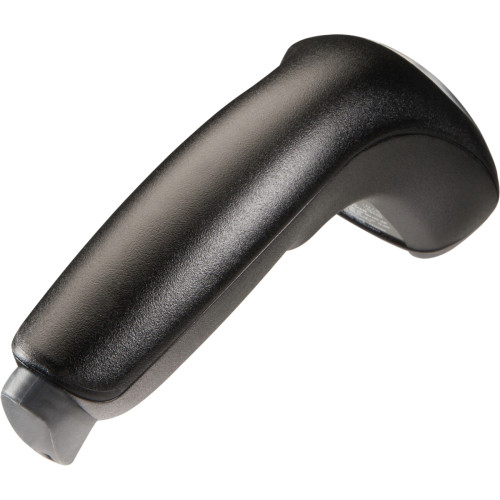

Intermec SG20 Series Barcode Scanner
Part #: SG20B1D-KBW002 | SKU: INT183066

The Intermec SG20 Series features the industry’s fastest barcode reading technology, providing more than 50 times the motion tolerance of typical scanners. Select between Bluetooth wireless for up to 10 meters of range (32.8 feet), or the simplicity of tethered (cabled) connectivity. The stylish design of the SG20 Series sets it apart from traditional gun-shaped handheld scanners. The Intermec SG20 Series can be quickly and easily configured with Intermec exclusive EasySet PC programming tool.

Intermec SG20 Series Barcode Scanner

Part Details: SG20B: SG20 Series, Keyboard wedge Kit 1D Imager & Cable & Bluetooth Base I/F & PS
Need a different version of the Honeywell SG20 Series Barcode Scanner? View all 22 configurations

Additional Information

Manufacturer Intermec
Model Name SG20 Series
Scanner Capability 1D
Intermec SG20 Series Specs Intermec SG20 Series Specs (pdf)

Technical Information

  • Barcode Dimension: 1D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Wireless
  • Light Source: LED
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • MSI
    • Matrix 2 of 5
    • Interleaved 2 of 5
    • GS1 DataBar Omnidirectional
    • GS1 DataBar Expanded
    • GS1 Composite (linear only)
    • GS1 DataBar Limited
    • Codabar
    • Code 11
    • Code 39
    • Code 93/93i
    • Code 128 / GS1-128
    • EAN/UPC
    • Plessey
    • Standard 2 of 5
    • Telepen
    • MSI
    • Matrix 2 of 5
    • Interleaved 2 of 5
    • GS1 DataBar Omnidirectional
    • GS1 DataBar Expanded
    • GS1 Composite (linear only)
    • GS1 DataBar Limited
    • Codabar
    • Code 11
    • Code 39
    • Code 93/93i
    • Code 128 / GS1-128
    • EAN/UPC
    • Plessey
    • Standard 2 of 5
    • Telepen
  • Maximum Scan Resolution: 6 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Intermec
  • Manufacturer: Intermec Technologies Corporation
  • Product Model: SG20B
  • Product Name: SG20 General Duty Imager

Physical Characteristics

  • Height: 2.6"
  • Width: 2.4"
  • Depth: 7.9"
  • Weight (Approximate): 6.17 oz

Network & Communication

  • Bluetooth: Yes

Battery Information

  • Battery Chemistry: Lithium Ion (Li-Ion)

Other

  • Platform Supported: PC
Extended Details
