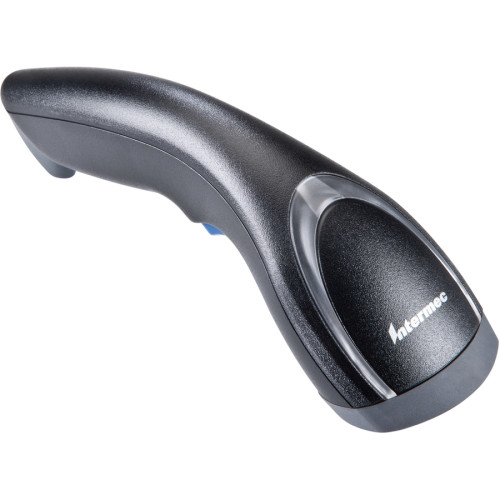

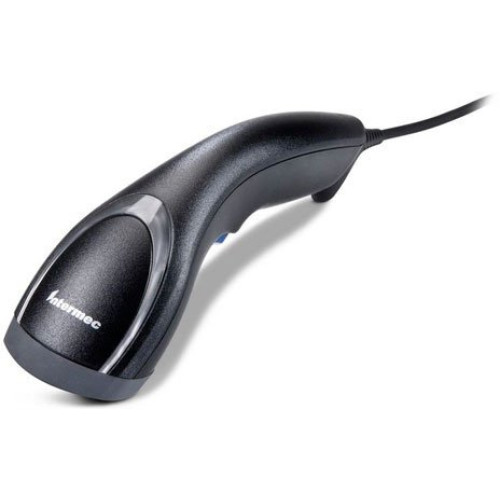

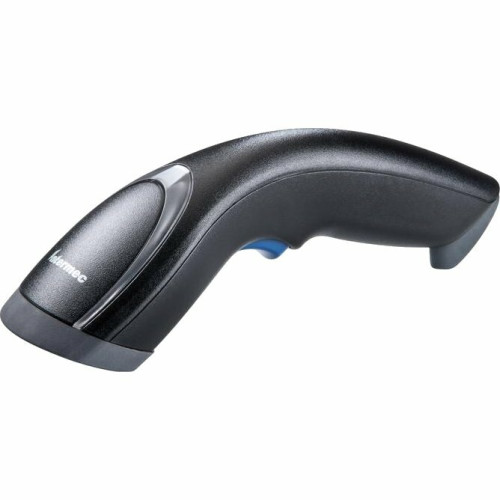

Intermec SG20 Series Barcode Scanner
Part #: SG20T1D-USB001 | SKU: INT156378

The Intermec SG20 Series features the industry’s fastest barcode reading technology, providing more than 50 times the motion tolerance of typical scanners. Select between Bluetooth wireless for up to 10 meters of range (32.8 feet), or the simplicity of tethered (cabled) connectivity. The stylish design of the SG20 Series sets it apart from traditional gun-shaped handheld scanners. The Intermec SG20 Series can be quickly and easily configured with Intermec exclusive EasySet PC programming tool.

Intermec SG20 Series Barcode Scanner

Part Details: SG20T: SG20 Series, SG20 Linear Imager (USB Kit, 1D Imager with Cable)

Need a different version of the Honeywell SG20 Series Barcode Scanner? View all 22 configurations

Additional Information

Interface Options	USB
Manufacturer	Intermec
Model Name	SG20 Series
Scanner Capability	1D
Scanner Type	CCD, Imager

Intermec SG20 Series Specs (pdf)

Technical Information

Barcode Dimension: 1D
Scan Pattern: Omni-directional
Connectivity Technology: Cable
Image Sensor:
- Imager
- Linear
Barcode Symbology Supported:
- Codabar
- Code 11
- Code 39
- Code 93/93i, Code 128 / GS1-128
- EAN/UPC
- GS1 DataBar Limited, GS1 Composite (linear only)
- GS1 DataBar Expanded, GS1 DataBar Omnidirectional
- Interleaved 2 of 5, Matrix 2 of 5
- MSI
- Plessey
- Standard 2 of 5
- Telepen
- Codabar
- Code 11
- Code 39
- Code 93/93i, Code 128 / GS1-128
- EAN/UPC
- GS1 DataBar Limited, GS1 Composite (linear only)
- GS1 DataBar Expanded, GS1 DataBar Omnidirectional
- Interleaved 2 of 5, Matrix 2 of 5
- MSI
- Plessey
- Standard 2 of 5
- Telepen
Maximum Scan Resolution: 6 mil

General Information

Product Type: Handheld Barcode Scanner
Product Series: SG20
Brand Name: Intermec
Manufacturer: Intermec Technologies Corporation
Product Model: SG20T
Product Name: SG20 General Duty Imager

Physical Characteristics

Height: 2.6"
Width: 2.4"
Length: 7.9"
Weight (Approximate): 4.41 oz

Interfaces/Ports

Host Interface: USB

Other

Green Compliant: Yes
Green Compliance Certificate/Authority:
- RoHS
- China RoHS
- REACH
- WEEE
Platform Supported: PC

Warranty

Limited Warranty: 5 Year
