Intermec EasyCoder PD42 Barcode Label Printer Intermec EasyCoder PD42 Barcode Label Printer Intermec EasyCoder PD42 Barcode Label Printer

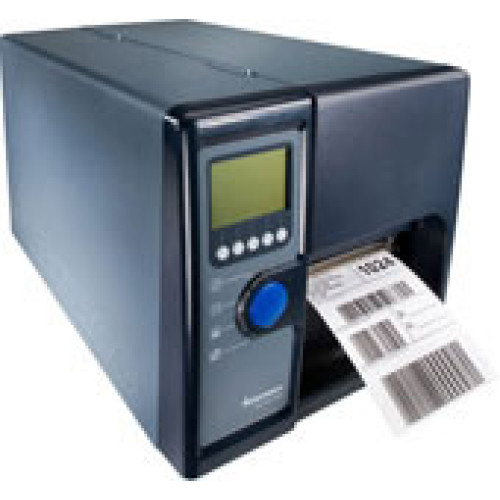

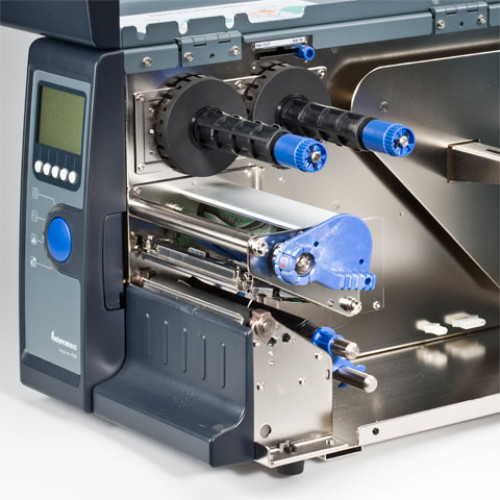

Intermec EasyCoder PD42 Barcode Label Printer

Intermec EasyCoder PD42 Barcode Label Printer

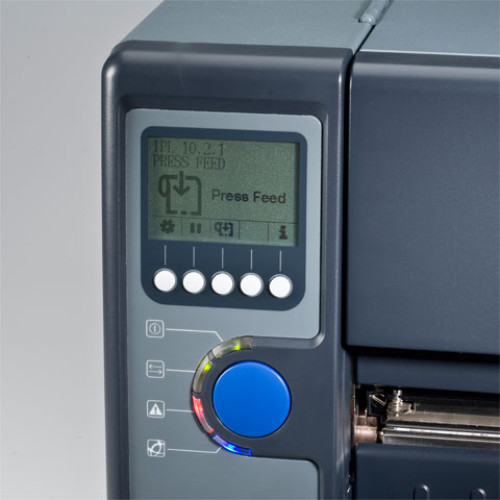

The Intermec EasyCoder PD42 is a dependable and versatile printer suitable for medium duty applications in manufacturing, transportation and warehousing environments. With all-metal chassis and covers, proven printing mechanics and powerful electronics, it provides the sturdiness and performance your business depends on. The EasyCoder PD42 is the first Intermec printer to feature a monochrome, graphical display, which allows users to set up, configure and fine tune printing parameters without having to send commands through the host, saving time. The display working in concert with the status lights provides the user specific feedback if the printer is in an off-line state. The ability to use any Intermec printer language and emulate other printer protocols makes the EasyCoder PD42 both fully compatible with other Intermec equipment and a cost-effective "drop-in" printer replacement in almost any non-Intermec firmware environment.
Discontinued - Need Assistance
See all options
Intermec EasyCoder PD42 Specs Intermec EasyCoder PD42 Specs (pdf) Intermec EasyCoder PD42 Driver Intermec EasyCoder PD42 Driver (download)

Interfaces

Standard:
• Ethernet 10/100 Mbps
• RS-232, up to 115.2 kB/s
• Fingerprint/Direct Protocol: XON/XOFF, ENQ/ACK, DTR, RTS/CTS
• IPL: XON/XOFF, Intermec Std. Protocol
• USB 2.0

Optional:
• Parallel IEEE 1284

Wireless:
• IEEE 802.11 b/g
• Wi-Fi Certified, CCX (Cisco®) version 3 Certified
• WEP, WPA, WPA2, 802.11x (EAP-TTLS, LEAP, PEAP, FAST), 802.11i

Supported Protocols:
TCP/IP-suite (TCP, UDP, ICMP, IGMP, etc.), LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP. SNMP-MIB II supported (over UDP/IP), private enterprise MIB included. Supports IPv4 and IPv6.

Memory

Standard:
8MB Flash memory 16MB SDRAM (1 Compact Flash slot and 1 USB Boot / Hub Slot)
Options:
Up to 1GB CompactFlash (type 1) memory, Multi GB USB Thumb Drive Memory

Physical Characteristics

Length:
453 mm (17.8 in)
Height:
273 mm (10.8 in)
Width:
270 mm (10.6 in)
Weight:
13 kg (28.7 lbs)

Power

Voltage Range:
100-240 VAC ±10% auto switch
Frequency Range:
45-65 Hz

Print Specifications

Max Width:
104 mm (4.09 in) at 203 dpi
105.7 mm (4.16 in) at 300 dpi
Max Length:
1520 mm (59.8 in) at 203 dpi
1028 mm (40.5 in) at 300 dpi
Max Label Width:
118.1 mm (4.65 in)
With cutter: 114m (4.49 in)
Thickness:
2.3 to 9.8 mil
Style:
Roll-fed, die-cut, continuous or fanfold
Label Roll Max Diameter:
213 mm (8.38 in)
Label Roll Core:
38-76mm (1.5-3 in)
Print Speed:
50-150 mm/s (2-6 ips) at 203 dpi
50-100 mm/s (2-4 ips) at 300 dpi
Resolution:
8 dots/mm (203 dpi)
11.8 dots/mm (300 dpi, option)
Media Type:
Direct thermal and thermal transfer label, ticket and tag printers.

Supported Bar Code Symbologies

1-Dimensional:
All major 1D symbologies are supported.
2-Dimensional:
All major 2D symbologies are supported.

Extended Details
Refine Your Options
Shop By
Shopping Options
Printing Technology
  1. Thermal Transfer (13)
  2. Direct Thermal (2)
Print Resolution
  1. 203 dpi (13)
  2. 305 dpi (3)
  3. 300 dpi (1)
Print Speed
  1. 6 ips (13)
  2. 4 ips (3)
Interface Options
  1. Ethernet (12)
  2. Serial (RS-232) (8)
  3. Parallel (5)
  4. USB (1)
  5. Wi-Fi (1)
Included Features
  1. Chinese Power Cord (1)
Printer Type
  1. Industrial (16)
  1. Intermec EasyCoder PD42 Barcode Label Printer

    Intermec EasyCoder PD42 Barcode Label Printer
    Part #: PD42A01000012020 | SKU: INT47305

    EasyCoder PD42, Thermal transfer printing, 203 dpi, US/IPL, EasyLAN Ethernet and LTS
  2. Intermec EasyCoder PD42 Barcode Label Printer

    Intermec EasyCoder PD42 Barcode Label Printer
    Part #: PD42A41000012020 | SKU: INT47306

    EasyCoder PD42, PD42A Thermal transfer (203 dpi, US/FP, EasyLAN Ethernet and Label Taken Sensor)
  3. Intermec EasyCoder PD42 Barcode Label Printer

    Intermec EasyCoder PD42 Barcode Label Printer
    Part #: PD42A41100012030 | SKU: INT47307

    EasyCoder PD42, Thermal transfer printing, 300 dpi, US/FP, EasyLAN Ethernet and Label Taken Sensor
  4. Intermec EasyCoder PD42 Barcode Label Printer

    Intermec EasyCoder PD42 Barcode Label Printer
    Part #: PD42A61000012020 | SKU: INT47308

    EasyCoder PD42, PD42A Thermal transfer (200 dpi, EU-UK Cord, FP, Ethernet and LTS)
  5. Intermec EasyCoder PD42 Barcode Label Printer

    Intermec EasyCoder PD42 Barcode Label Printer
    Part #: PD42A60100012020 | SKU: INT78741

    EasyCoder PD42, PD42A, EU FP, 1284, LTS, TT, 203 dpi
  6. Intermec EasyCoder PD42 Barcode Label Printer

    Intermec EasyCoder PD42 Barcode Label Printer
    Part #: PD42A61100012030 | SKU: INT78742

    EasyCoder PD42, PD42A, EU, FP, LAN. 1284, LTS, TT, 300 DPI
  7. Intermec EasyCoder PD42 Barcode Label Printer

    Intermec EasyCoder PD42 Barcode Label Printer
    Part #: PD42GJ1100001020 | SKU: INT192728

    Label Printer, Thermal transfer Printer, 203 dpi, 4" print width, USB, Parallel, Serial and LAN interfaces, Includes US power cord.
