Intermec EasyCoder PF4i Specs
Intermec EasyCoder PF4i Driver
nterfaces
Standard:
• Ethernet 10/100 Mbps
• RS-232, up to 115.2 kB/s
• Fingerprint/Direct Protocol: XON/XOFF, ENQ/ACK, DTR,
RTS/CTS
• IPL: XON/XOFF, Intermec Std. Protocol
• USB 2.0
Optional:
• Parallel IEEE 1284
• Industrial Interface (8 digital in/out, 4 analog relays, 1
RS232/422/485 port)
• Dual Serial ports RS-232, RS-422, RS-485 and 20mA Current
Loop
Wireless:
• IEEE 802.11 b/g
• Wi-Fi Certified, CCX (Cisco®) version 3 Certified
• WEP, WPA, WPA2, 802.11x (EAP-TTLS, LEAP, PEAP, FAST),
802.11i
• Multiple industrial antenna options for maximized
coverage
Supported Protocols:
TCP/IP-suite (TCP, UDP, ICMP, IGMP, etc.) LPR/LPD, FTP, BOOTP,
DHCP, HTTP, SNMPv3, SMTP.SNMP-MIB II supported (over UDP/IP),
private enterprise MIB included. Supports IPv4 and IPv6.
Memory
Standard:
16MB Flash memory, 32MB SDRAM, 1 CompactFlash slot
Options:
1GB CompactFlash memory, multi-GB USB memory device (FAT16/FAT32
USB drivers supported)
Physical Characteristics
Length:
405 mm (15.9 in)
Height:
178 mm (7.0 in)
Width:
244 mm (9.6 in)
Weight:
8 kg (17.7 lbs)
Power
Input:
90 to 265 VAC, 45 to 65Hz
Consumption: Standby 15W; Peak 300W
Print Specifications
Max Width:
104 mm (4.09 in) at 203 dpi
105.7 mm (4.16 in) at 300 dpi
Max Length:
4095 mm (161.2 in) at 203 dpi
2730 mm (107.5 in) at 300 dpi
Max Label Width:
114.3 mm (4.5 in)
Thickness:
3.0 to 7.5 mil
Style:
Roll-fed or fanfold
Label Roll Max Diameter:
(long door): 152.4 mm (6 in)
(short door): 213 mm (8.38 in)
Label Roll Core:
38-76mm (1.5-3 in)
Print Speed:
100 – 200 mm/s (4 – 8 ips) variable (203 dpi)
100 – 150 mm/s (4 – 6 ips) variable (300 dpi)
Resolution:
8 dots/mm (203 dpi)
11.8 dots/mm (300 dpi)
Media Type:
Direct thermal and thermal transfer label, ticket and tag printer.
Also available in dark metallic enclosure.
Supported Bar Code Symbologies
1-Dimensional:
All major 1D symbologies are supported.
2-Dimensional:
All major 2D symbologies are supported.
-
Printing Technology
-
Print Resolution
-
Interface Options
-
Printer Type
-

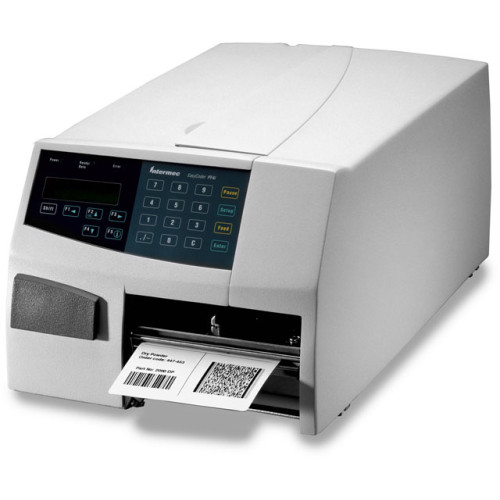

Intermec EasyCoder PF4i Barcode Label Printer
Part #: PF4ID00100001021 | SKU: INT82533EasyCoder PF4i, Full Door, Universal Firmware, Self Strip, LTS, DT 203 dpi -
Intermec EasyCoder PF4i Barcode Label Printer
Part #: PF4IC01100300021 | SKU: INT28579EasyCoder PF4i, Direct thermal Printer, 115 VAC with US Cord, IPL Firmware, Half Length Door with 8 inch Exposed Media, EasyLAN Integrated Ethernet Interface 10/100, No Option 1, 16MB DRAM, 4MB Flash, Label Roll Hanger, No Option 1, No Option 2, DT and 203 dpi -
Intermec EasyCoder PF4i Barcode Label Printer
Part #: PF4IC42100300020 | SKU: INT31273EasyCoder PF4i, Thermal transfer Printer, 203 dpi, 16MB DRAM, 4MB Flash, 115 VAC with US Cord, Fingerprint-DP Firmware, Dome Door Assembly with 8 inch Enclosed Media, EasyLAN Integrated Ethernet Interface 10/100, Label Roll Hanger, No Option 1, No Option 2 -
Intermec EasyCoder PF4i Barcode Label Printer
Part #: PF4CB02000004020 | SKU: INT34704EasyCoder PF4i, US, IPL, Dome Door, Serial, Self Strip with Rewinder, Thermal transfer, 203 dpi -
Intermec EasyCoder PF4i Barcode Label Printer
Part #: PF4IC80000301021 | SKU: INT37209EasyCoder PF4i, PF4i DT, 203 dpi, Self Strip, LTS -
Intermec EasyCoder PF4i Barcode Label Printer
Part #: PF4IC81100301130 | SKU: INT37216EasyCoder PF4i, Printer PF4I, Fingerprint, Half DR Ethernet 16M/4M -
Intermec EasyCoder PF4i Barcode Label Printer
Part #: PF4IC81300310021 | SKU: INT37217EasyCoder PF4i, Printer PF4I, Fingerprint, Half DR Ethernet 16M/4M -
Intermec EasyCoder PF4i Barcode Label Printer
Part #: PF4IC81100300021 | SKU: INT47340EasyCoder PF4i, printer: PF4I, FGPT, HALF DR, Ethernet, 16M/4M, DT 203 dpi -
Intermec EasyCoder PF4i Barcode Label Printer
Part #: PF4ID00100000020 | SKU: INT82530EasyCoder PF4i, Full Door, Universal Firmware, Thermal transfer 203 dpi -
Intermec EasyCoder PF4i Barcode Label Printer
Part #: PF4ID00100000021 | SKU: INT82531EasyCoder PF4i, Full Door, Universal Firmware, DT 203 dpi
