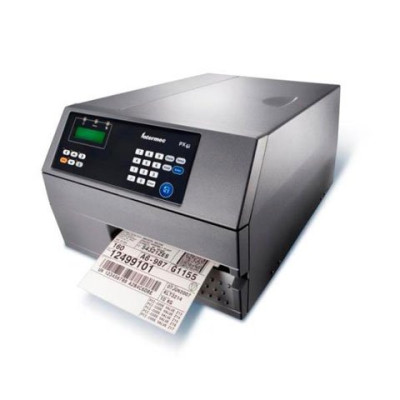

Intermec EasyCoder PX6i Barcode Label Printer

Intermec EasyCoder PX6i Barcode Label Printer

Intermec EasyCoder PX6i Barcode Label Printer

The EasyCoder PX Series printers are rugged, metal, high-performance printers designed to excel in demanding 24/7-duty applications. The EasyCoder PX6i features a maximum print width of 6 inches and either 203 or 300 dpi resolution printheads. The open, modular design ensures the printer is easy to adapt, maintain and service. The EasyCoder PX6i printer prints instantly from first to last label at up to 12 ips-ideal for on demand and compliance labeling applications with variable data requiring immediate results. The combination of powerful, individually controlled micro-step motors, generously dimensioned power supply and new sophisticated thermal management printhead ensures high-quality labels each and every time. Includes Intermec LabelShop START barcode label design software.
Starting at: MSRP: $5,104.00 Price: $3,276.99
See all options
Intermec EasyCoder PX6i Specs Intermec EasyCoder PX6i Specs (pdf) Intermec EasyCoder PX6i Driver Intermec EasyCoder PX6i Driver (download)
Application
 Direct Thermal (DT) and Thermal Transfer (TT) printing of adhesive labels, tickets and tags.

Physical Characteristics
 LxHxW: 482 x 238 x 335 mm (19.0 x 9.4 x 13.2 in)
Weight: 14.80 kg (32.6 lbs)

Print Specifications
Max. Print Width: 167.4 (6.59 in)
Max. Length with extended memory:
 4095 mm (161 in) at 203 dpi
2775 mm (109 in) at 300 dpi

Print Speed
 100 - 225 mm/s (4 - 9 ips) variable

Print Direction
 Prints smooth text, any size bar codes and graphics in all four orthogonal directions.

Print Resolution
 8 dots/mm (203 dpi), 11.8 dots/mm* (300 dpi)

Label/Ticket/Tag
 Max. Width: 170 mm (6.69 in)
Min. Width: 76.2 mm (3.0 in)
Thickness: 60 to 250µm (2.4 to 10 mil)
Style: Roll-fed, die-cut, continuous or fanfold labels, tags or tickets
Label Roll max diameter: 213 mm (8.38 in)
Label Roll Core: 38-76 mm (1.5-3.0 in)
Media Type: Thermally sensitive media

Ribbon Roll
 Ribbon roll max diameter: 80 mm (3.15 in) corresponding up to 600 m (23 600 in) in length
Ribbon Roll Core: 25 mm (1.0 in)
Ribbon Type: Wax, wax/resin, resin

Interfaces
Standard:

  • EasyLAN 10/100BaseT internal Ethernet
  • RS-232, up to 115.2 kB/s
  • USB 2.0
  • Wand interface for EasySet System

Optional:

  • EasyLAN Wireless internal Ethernet

Optional interface card adapters:

  • Parallel IEEE 1284
  • Industrial Interface* (8 digital in/out, 4 analog relays, 1 RS232/422/485 port)
  • Dual Serial ports RS-232, RS-422, RS-485 and 20mA Current Loop*

Network Interface Options:
 EasyLAN integrated Ethernet: RJ-45 connector for 10BaseT or 100baseTX
EasyLAN Wireless:

  • Fully integrated IEEE 802.11b/g
  • WEP 128 bit, 802.1x/WPA/LEAP/PEAP
  • Multiple industrial antenna options for maximized coverage

Supported Protocols: TCP/IP-suite (TCP, UDP, ICMP, IGMP, etc.), LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMP, SMTP.
SNMP-MIB II supported (over UDP/IP), private enterprise MIB included

Software
Available printer command languages:

  • IPL
  • Fingerprint/Direct Protocol

Applications/Drivers (comes on Printer Companion CD) including:

  • InterDriver Windows printer driver
  • Intermec LabelShop START label design and print package
  • Intermec Printer Network Manager for administration of networked printers
  • PrintSet for printer setup/configuration

Optional software for application development:

  • Fingerprint ApplicationBuilder (IFAB)
  • Intermec Printer Application Server
  • ERPLabel for SAP R/3.

Bar code Symbologies
DP 1-dimensional Codes: Codabar, Code 11, Code 39, Code 93, MSI(modified Plessey), Code 128, Code 128 Subset A-C, DUN-14/16, UPC/EAN Codes (EAN 8, EAN 13, UPC Version A, UPC Version E), EAN-128, EAN-128 Subset A-C*, Industrial 2 of 5, Interleaved 2 of 5, Interleaved 2 of 5 A, Matrix 2 of 5*, Planet, Postnet, Straight 2 of 5*, UCC-128 Serial Shipping Container Code, RSS, HIBC Code 39 (IPL only), HIBC Code 128 (IPL only), JIS-ITF (IPL only)
2-dimensional Codes: Code 16K, Code 49, Data Matrix, MaxiCode, PDF417, QR Code, MicroPDF417, EAN.UCC Composite

Standards Supported
 UPC/EAN Shipping Container; UCC/EAN 128 Serial Shipping Container; MH10.8 Shipping Label; AIAG (shipping parts label); LOGMARS; POSTNET; HIBCC; ISBT 128; GM1724; UPS shipping label; Global Transport label

Characters Sets
 Fingerprint/DP Firmware: 15 scalable fonts including 12 UNICODE (1 WGL4), 1 symbol, 1 OCR-A, 1 OCR-B. Font cache for maximum performance. Non-Latin fonts are available as options.
IPL Firmware: 13 scalable fonts + 20 bitmap fonts.

Graphics
 Supports PCX file format

Memory
 Standard:
 4MB Flash memory
8MB SDRAM
1 Compact Flash slot
Maximum:
 Flash memory: Up to 16 MB (optional) 1GB CompactFlash memory
SDRAM:
 Up to 16MB

Protocol
 Fingerprint/Direct Protocol: XON/XOFF, ENQ/ACK, DTR, RTS/CTS
IPL: XON/XOFF, Intermec Standard Protocol

Display
 Back-lit LCD for 2x16 characters and 3 LED indicator lamps

Keypad Control Panel

  • Advanced keypad (Fingerprint/DP)
  • Alpha-numeric keypad (FP/DP option)
  • Simplified keypad (IPL)

Power Supply
 115/230VAC auto-switch w/PFC
Voltage Range: 90-265 VAC
Frequency Range: 45-65 Hz

Operating Environment
 Temperature: +5° to +40°C (+40° to +104°F)
Humidity: 10-90% RH non-condensing

Regulatory Approvals
 CE (EN55022 Class A), FCC Class A, UL, CSA, C-Tick
