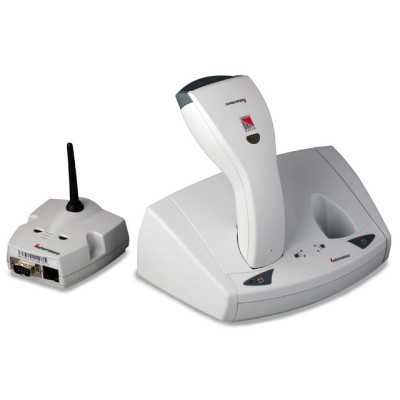

Intermec ScanPlus 1802 Barcode Scanner

__($mfg->name) ScanPlus 1802 Decoded Cordless Scanner/9735BS

The Intermec 1802 and 9735 Base Station is a high performance, compact wireless solution designed for retail, office, healthcare and light industrial applications. With an operating range of up to 15m (50ft) from the base station, and the autonomy of 7,000 scans from the NiMH battery technology, the 1802 offers exceptional mobility and enhanced productivity for your operation.

Features

• Cable free design for exceptional mobility and safety
• Range up to 15m (50ft) from base station
• Multiple scanners can interface with a single base station
• 7,000 scans for a full day’s use
• Bi-directional communication
• Completely integrated, ergonomic design and light weight for easy use
• Short or extended scanning ranges
• More than 1500 interfaces available
• Use of EasySet™ setup software (for Windows^®) for quick and easy installation

A Wireless Solution

With an operating range of up to 15m or approximately 50 feet, and autonomy of 7,000 scans, the 1802 offers exceptional performance in a wireless solution. The battery pack (NiMH technology) is quickly recharged by the advanced two bay high-speed charger for another full shift of intensive use. In addition, the ScanPlus 1802 uses the latest scanning technology for fast reading and decoding.

Highly Flexible

With a choice of CCD or laser scanning devices, and the capability to connect with more than 1500 interfaces, the 1802 can meet your requirements for even the most demanding applications.

Real Time Reliability

The narrow band technology (433MHz and 908MHz) of the __($mfg->name) ScanPlus 1802 allows very efficient data transmission. As a result, the two way communication system between the scanner and its base station allows real time transmission control and acknowledgement, ensuring complete reliability in your operation critical data.

Cost Efficient Multiple Scanner Interface

The MicroBar^TM 9735 base station can interface with multiple wireless scanners and up to four input devices. This capability of interfacing multiple scanners to a unique base provides an extremely cost efficient solution for your overall operation.

PHYSICAL CHARACTERISTICS

ScanPlus 1802

Length: 18 cm (7”) Width at head: 6.4 cm (2.5”) Width at handle: 3.3 cm (1.3”) Weight: 232g (8.2 oz.) (inc. battery)

MicroBar 9735

Length: 8.5 cm (3.35”) Width: 8.4 cm (3.3”) Height: 4.2 cm (1.6”) Weight: 84g (3 oz.)

Battery Type: 600mAh, NiMH, 3.6V Battery Life: up to 7,000 scans AC Adapter/Recharging: 3 hr max. Modular 2 bay charger 110/240 VAC Size: 200x 120x75 mm

1802 ST only: US DHHS Standard 21 CFR 1040, 10 and 1040,11 (1994) as a Class II Laser product, IEC 825-1 (1993), EN60825-1 (1994) Class 2.

Base Station MicroBar 9735

Interfaces: RS 232 C, Wedge to PC keyboards, including, including IBM, Apple Mac, and many retail terminals (including IBM 3XXX, NCR, Wyse, etc.)

Wireless Devices: possibility to connect multiple wireless scanners

Input Devices: up to 4 input devices

Power requirements: +5VDC (+/- 5%)

Advanced Data formatting: Pre and postambules (20 characters + 2 characters for AIM symbology identifiers), port address (15 characters), masking and re-ordering function.

Microprocessor: Custom chip (ASIC inc. DSP processor) for fast signal processing and decoding.

UPC E, A, EAN, Code 39; Interleaved, Matrix, Industrial and standard 2 of 5; Code 128, UCC EAN 128, Codabar, Code 93, MSI, Plessey.

__($mfg->name) ScanPlus 1802 SR Models:

Scan rate: 400 scans per sec max Minimum X dim: 0.1 mm (4 mil) Depth of field: up to 10 cm (4”) depending on code 0.1 mm (4mil): 0-2 cm (0-0.8”) 0.254 mm (10mil): 0-4cm (0-1.6”) 100% EAN/UPC: 0-5.5 cm (0-2.1”) 0.38 mm (15 mil): 0-6 cm (0-2.4”) 0.5 mm (20 mil): 0-7 cm (0-2.7”) 0.7 mm (27 mil): 0-10 cm (0-4”)

PCR: 25% min. Code width: 12 cm (4”) max (X above .254/10 mil) Skew: +- 65° Pitch: +- 70°

ST Model:

Scan rate: 36 scan/sec Minimum X dimension: 0.125 mm (5 mil) Depth of field: up to 50 cm, depending on code: 0.125 mm (5 mil): 2.5-8 cm (1.3”) 0.254 mm (10 mil): 0-20 cm (0-7.9”) 100% EAN/UPC: 0-25cm (0-10”) 0.38 mm (15 mil): 0-30 cm (0-12”) 0.5 mm (20 mil): 0-50 cm (0-20”)

PCR: 25% minimum Skew: +- 55° Pitch: +- 65°

Frequency Band:

European version: unlicensed 433 MHz U.S. version: unlicensed 908MHz

Approvals:

European version: EN 300 220-1 U.S. version: FCC Part 15.249

Radio Type: 433MHz and 908MHz narrow band SR Optics: CCD linear image sensor with sharp aiming beam. Light source: red, long life LEDs. ST Optics: visible Laser diode @ 670 nm. Laser class 2 IEC 825-1/CDRH Class II Range: up to 15 meters (16.5 yards)

Operating Temperature: 0° to 40°C (32° to 104°F) Storage Temperature: -20° to 55° (-4° to 131°F) Humidity: 10% to 90% non-condensing Drop Survival: withstand multiple drops of 1 m (3.2 ft) to concrete

908MHz: UL listed, cUL listed, UL 1950 433MHz: TÜV-Rheinland GS licensed EN60950, CE marked

Some approvals and features may vary by country and may change without notice. Please check with your local Intermec __($mfg->name) ScanPlus 1802 sales office for further information.
