PRINTING CHARACTERISTICS |
|
|
|
Printing method
Print dot diameter
Vertical dot pitch
Horizontal (Full) dot pitch
Horizontal Resolution
Printing directions
Receipt Print zone (max.)
Validation Print Zone (max.)
Print Speed
Characters per line
Characters per inch
|
Thermal ink jet
0.254 mm (0.0100 inch) Typical
0.264 mm (0.0104 inch) or 96 DPI
0.244 mm (0.0096 inch) or 104 DPI
8 dots per mm (208 DPI)
bi-directional, logic seeking
72 mm (2.83 inch)
72 mm. (2.83 inch)
6 lines per second (40 columns)
12 lines per second (10 columns)
programmable:
default is 45 characters/line
programmable:
default is 16 characters/inch
|
|
FEATURES AND BENEFITS
- Space-saving design
- Drop-in paper loading
- Auto calibrating sensors
- Bi-directional, Independent Validation
- Cut-Through, drop-in validation slot (1.5 inch depth)
- Adjustable form alignment stop to allow repeatable forms
positioning
- Form insertion LED to provide feedback to operator re. proper
form insertion
- Metal receipt tear off
- Self diagnostics
- Set up and configuration utility program
- Three Print fonts: Draft, Large Draft, and NLQ2.
- Selectable printing features of Emphasized, Double Wide, Double
High, Double wide/Double High, Underline, Italics, Subscript,
Superscript, and Rotated (Four 90 degree rotations)
- Emulations: Ithaca, Epson ESC/POS, Addmaster 6080
- Maximum 8K buffer (adjustable)
- Flash Memory for user defined graphics
- APA and Epson graphics
- Bar codes: Code 39, Code 93, Interleaved 2 of 5, UPC-A, UPC-E,
EAN8 and EAN13, Code 128
- 42 ASCII Code Pages (including Euro symbol)
- WGL4 Unicode Support
- Stroke based fonts
- Paper out sensor
- Black cabinet set
- Configurable Electronic Journal
|
PHYSICAL CHARACTERISTICS |
Dimensions (in inches):
Weight:
Shipping weight: |
6.50 W x 8.5 D x 4.22 H
4.2 lbs.
5 lbs. |
INTERFACE OPTIONS
9 pin RS-232 and USB standard on all
units
PRINTER DRIVERS
Windows 2003, XP, and Vista; OPOS on Windows 20003, XP,
and Vista
POWER REQUIREMENTS
Standard: 24 VDC, 1A from external power
source via Hosiden connector Optional: external power supply
(100-240 VAC Universal Switcher, 47-63 Hz.)
RELIABILITY
Printer MCBF (without pen): 50,000,000 print lines.
Validation MCBF: 1,000,000 cycles
|
ENVIRONMENTAL SPECS |
Temperature:
Humidity: |
Typical Operating: 10 to 40
°C
Extended Operating: 0 to 45 °C
Storage: -10 to 60 °C
Shipping: -40 to 70 °C
10 to 90% RH |
REGULATORY COMPLIANCE
FCC Class B, UL 60950 (U.S/Canada), CE Mark,
TUV, RoHS
WHO WE ARE
TransAct Technologies Incorporated
(Nasdaq:TACT) is the leader in developing and manufacturing
market-specific printers for transaction-based industries. These
industries include gaming, lottery, POS, kiosk, and banking. Each
individual market has distinct, critical requirements for printing
and the transaction isn’t complete until the receipt and/or ticket
is produced. TransAct printers are designed from the ground up
based on market specific requirements and are sold under the
Ithaca® and Epic product brands. TransAct distributes its products
through OEMs, value-added resellers, and selected distributors.
TransAct has over two million printers installed around the world.
TransAct has a strong focus on the after-market side of the
business, with a high commitment to printer service, supplies, and
spare parts. TransAct is headquartered in Hamden, CT. For more
information on TransAct, visit www.transact-tech.com or call
203-859-6800. |
MEDIA |
Paper feed method:
Paper feed pitch:
Paper width:
Roll diameter:
Paper thickness:
Roll paper core:
Roll footage:
Single ply paper:
Form Size (Minimum):
Form Size (Maximum):
|
friction feed
default - 1/8 inch
76.0 +/- .5 mm. (2.980 +/- .020 inches)
3.0 inches Max.
0.003 - 0.0035 inches
Inside diameter 7/16 inch or more
165 – 192 feet (.003 to .0035 thick paper)
.003 inches to .0047 inches
(.076 mm. to .119 mm.)
2.75 inches high x 5.5 inches long
(69.8 mm. x 139.7 mm.)
4.0 inches high x 8.75 inches long
(101.6 mm. x 222 mm.)
|
PRINT CARTRIDGES
Monochrome (black) print utilizing HP C6602a
inkjet print head Average of 7 million characters to ink depletion.
(av. 16 dots/character) **Reliability data is based on HP test
results.
|

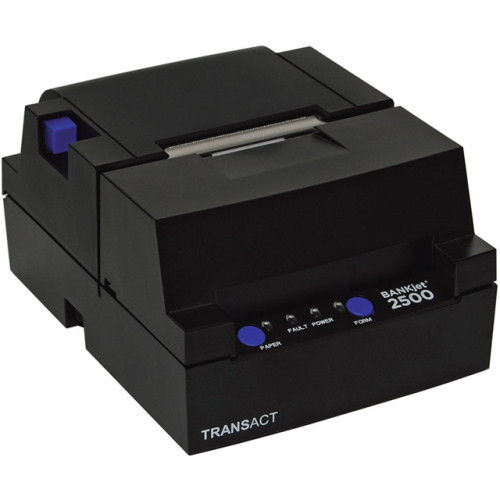

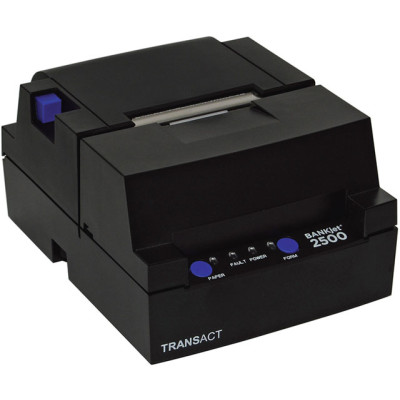

Ithaca BANKjet 2500 Specs
