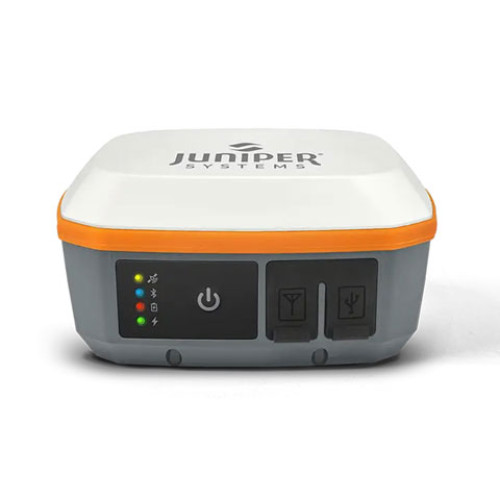

Juniper Systems Geode GNSS Receiver Wireless Transmitter / Receiver
Part #: GNS3H-CFG(13817) | SKU: JUN775726

The Geode GNS3H GNSS Receiver delivers professional-grade positioning in a compact, rugged design built for field work. With multi-constellation, multi-frequency tracking and flexible corrections—including RTK, SBAS, Atlas® L-Band, and Galileo High Accuracy Service (HAS)—teams can scale accuracy from sub-meter to centimeter as jobs demand. Simple Bluetooth® pairing streams NMEA to Android™, iOS®, and Windows® devices, while USB-C and RS-232 support legacy and modern integrations. Rated IP68 and tested to MIL-STD-810G, the Geode is purpose-built for long days in harsh environments. Ideal for GIS, utilities, construction, agriculture, and environmental mapping.

Key Features

• Scalable Accuracy: Sub-meter to centimeter-level with RTK, SBAS, Atlas, and HAS support.
• Multi-Constellation/Frequency: GPS, GLONASS, Galileo, BeiDou, QZSS with high channel count.
• Easy Connectivity: Bluetooth 5.x, USB-C, and RS-232 with standard NMEA output.
• Rugged & Reliable: IP68 sealing, MIL-STD-810G shock/vibration, long field runtime.
• Mobile Ready: Works seamlessly with common GIS/mapping apps on Android, iOS, and Windows.

Specifications

• Correction Options: RTK, SBAS, Atlas® L-Band, Galileo HAS (GNS3H)
• Update Rate: Up to 20 Hz (model/firmware dependent)
• Interfaces: Bluetooth 5.x, USB-C, RS-232; NMEA 0183 / RTCM
• Ingress & Durability: IP68; MIL-STD-810G tested
• Dimensions: ~110 × 110 × 57 mm; Weight: ~405 g
• Typical Use Cases: GIS/asset mapping, utilities, construction, agriculture, environmental surveys
