| Manufacturer | Juniper Networks |
|---|---|
| Model Name | EX4200 |

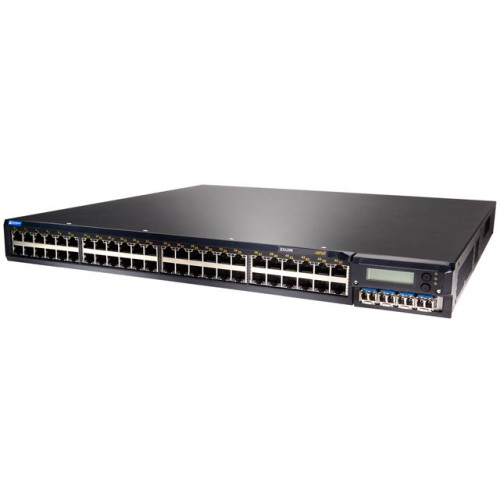

Juniper Networks EX4200 Specs
General Information
- Product Type: Layer 3 Switch
- Product Series: EX
- Brand Name: Juniper
- Manufacturer: Juniper Networks, Inc

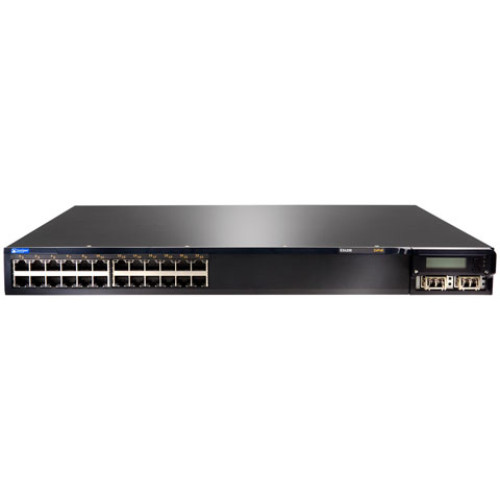

- Product Model: EX4200-24PX
- Product Name: EX4200-24PX Layer 3 Switch
Physical Characteristics
- Compatible Rack Unit: 1U
- Height: 1.7"
- Width: 17.4"
- Depth: 16.4"
- Form Factor:
- Rack-mountable
- Desktop
- Weight (Approximate): 18 lb
Interfaces/Ports
- Number of PoE+ (RJ-45) Ports: 24
- Stack Port: Yes
- Total Number of Network Ports: 24
- Port/Expansion Slot Details: 24 x Gigabit Ethernet Network
- Token Ring Port: No
- LRE Port: No
- USB: Yes
- Number of Stack Ports: 2
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority: RoHS
- Certifications & Standards:
- Safety Certifications:
- UL-UL60950-1(First Edition)
- C-UL to CAN/CSA 22.2 No. 60950-1 (First Edition)
- TUV/GS to EN 60950-1, Amendment A1-A4, A11
- CB-IEC60950-1, all country deviations
- Electromagnetic Compatibility Certifications:
- FCC 47CFr Part 15 Class A
- EN 55022 Class A
- ICES-003 Class A
- VCCI Class A
- AS/NZS CISPr 22 Class A
- CISPr 22 Class A
- EN 55024
- EN 300386
- CE
Management & Protocols
- Manageable: Yes
- Management:
- VLAN
- QoS
- J-Web interface
- DHCP
- JUNOS CLI
- Web-based Management
- SNMP v1,v2c,v3
- RMON 1,2,3,9
- Syslog
- Telnet
- Network and Security Manager (NSM)
- MIB
- sFlow
Power Description
- PoE (RJ-45) Port: No
- Input Voltage:
- 110 V AC
- 220 V AC
- Redundant Power Supply: Yes
- Power Source: Power Supply
Memory
- Memory Technology: DRAM
- Flash Memory: 1 GB
- Standard Memory: 1 GB
Media & Performance
- Ethernet Technology: Gigabit Ethernet
- Media Type Supported: Twisted Pair
- Network Technology: 10/100/1000Base-T
Warranty
- Limited Warranty: Lifetime
Network & Communication
- Layer Supported: 3
I/O Expansions
- Number of Total Expansion Slots: 1
