| Manufacturer | Juniper Networks |
|---|---|
| Model Name | SSG140 |

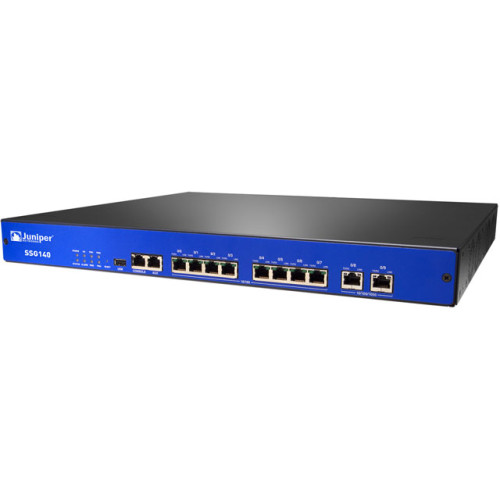

Juniper Networks SSG140 Specs
Technical Information
- Encryption Standard:
- AES (256-bit)
- DES
- 3DES (168-bit)
- Features: PAT
- Firewall Protection:
- Network Attack Detection
- Denial of Service (DoS)
- Distributed Denial of Service (DDoS)
- TCP Reassembly for Fragmented Packet Protection
- Brute Force Attack Mitigation
- SYNflood Protection
- IP Spoofing
- Malformed Packet Protection
- Deep Inspection Firewall
- Protocol Anomaly Detection
- Stateful Protocol Signature
- Antivirus
- Anti-spyware
- Adware Protection
- Keylogger Protection
- Anti-spam
- Instant Messenger Blocking
- URL Filtering
- Trojan Horse
- Worm Scanning
- Backdoor Detection
- Virtualization:
- 32000 x Concurrent Session
- 8000 x Concurrent Session
- 500 x Security Policies Tenant
- Users on the LAN
- 125 x Concurrent VPN Tunnel
- 50 x Tunnel Interface
- 1000 x Mapped IP
- 16 x Virtual IP
- 40 x Security Zone
- 32000 x Concurrent Session
- 8000 x Concurrent Session
- 500 x Security Policies Tenant
- Users on the LAN
- 125 x Concurrent VPN Tunnel
- 50 x Tunnel Interface
- 1000 x Mapped IP
- 16 x Virtual IP
- 40 x Security Zone
General Information
- Product Type: Network Security/Firewall Appliance
- Product Series: SSG
- Brand Name: Juniper
- Manufacturer: Juniper Networks, Inc
- Product Model: SSG-140
- Product Name: SSG-140 Security Platform
Physical Characteristics
- Compatible Rack Unit: 1U
- Height: 1.8"
- Width: 17.5"
- Depth: 15"
- Form Factor: Rack-mountable
- Weight (Approximate): 10.21 lb
Interfaces/Ports
- USB: Yes
- Total Number of Ports: 11
Other
- Additional Information:
- Other Performance:
- Firewall packets per second (64 byte) 100,000 PPS
- Advanced Encryption Standard (AES)256+SHA-1 VPN throughput 100 Mbps
- 3DES encryption +SHA-1 VPN throughput 100 Mbps
Power Description
- Input Voltage:
- 110 V AC
- 220 V AC
- Power Source: Power Supply
Network & Communication
- Network Standard:
- 10/100/1000Base-T
- 10/100Base-TX
- Ethernet Technology: Fast Ethernet
Memory
- Memory Technology: DRAM
- Maximum Memory: 512 MB
- Standard Memory: 256 MB
Warranty
- Limited Warranty: 1 Year
I/O Expansions
- Number of Total Expansion Slots: 4
