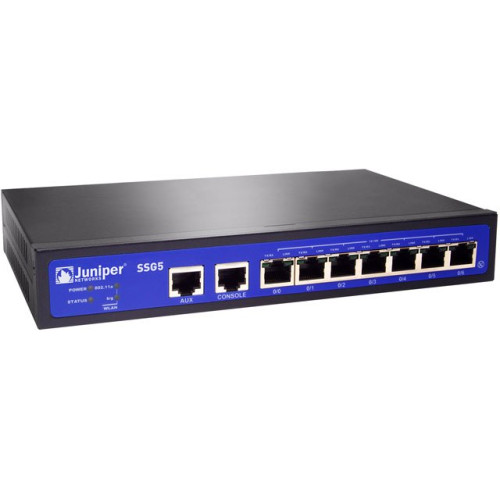

Juniper Networks SSG5 Data Networking
Part #: SSG-5-SB-10U | SKU: JUN64952

The Juniper SSG5 Secure Services Gateways are purpose-built security appliances that deliver a perfect blend of performance, security, routing and LAN/WAN connectivity for small branch offices, fixed telecommuters and small standalone business deployments. Traffic flowing in and out of the branch office or business is protected from worms, spyware, trojans, and malware by a complete set of Unified Threat Management security features that include stateful firewall, IPsec VPN, intrusion prevention system (IPS), antivirus (includes antispyware, anti-adware, antiphishing), antispam and Web filtering.

Juniper Networks SSG5 Data Networking

Part Details: SSG5, Security Services Gateway 5 (with RS-232 Aux Backup, 128MB Memory and 10-User Version)

Need a different version of the Juniper Networks SSG5 Data Networking? View all 7 configurations

Additional Information

Manufacturer	Juniper Networks
Model Name	SSG5

Juniper Networks SSG5 Specs (pdf)

Technical Information

Encryption Standard:
- MD5
- SHA-1
- 3DES
- AES
- DES
Features:
- NAT
- PAT
- IPSec NAT Traversal
Firewall Protection:
- Anti-spam
- Anti-spyware
- Malware Protection
- Anti-phishing
- Antivirus
- Adware Protection
- Brute Force Attack Mitigation
- Intrusion Prevention
- Trojan Horse
- Worm Scanning
- Denial of Service (DoS)
- Deep Inspection Firewall
- Network Attack Detection
- Distributed Denial of Service (DDoS)
- Protocol Anomaly Detection
- Stateful Protocol Signature
- Instant Messenger Blocking
- Keylogger Protection
- URL Filtering
- TCP Reassembly for Fragmented Packet Protection
- Replay Attack Prevention
- Cookie Protection
- IP Spoofing
- User Authentication
- Access Control
Virtualization:
- 8 x Security Zone
- 10 x 802.1Q VLAN Support
- 4000 x Concurrent Session
- 2800 x New Sessions/second
- 200 x Security Policies
- 8 x Security Zone
- 10 x 802.1Q VLAN Support
- 4000 x Concurrent Session
- 2800 x New Sessions/second
- 200 x Security Policies

General Information

Product Type: Network Security/Firewall Appliance
Product Series: SSG
Brand Name: Juniper
Manufacturer: Juniper Networks, Inc
Product Model: SSG 5
Product Name: Secure Services Gateway 5

Physical Characteristics

Height: 1.6"
Width: 8.7"
Depth: 5.6"
Form Factor: Rack-mountable
Weight (Approximate): 2.09 lb

Interfaces/Ports

USB: Yes
Total Number of Ports: 8
Serial Port: Yes

Other

Additional Information:
- Firewall performance(2) (IMIX): 90 Mbps
- Firewall Packets per second (64 byte): 30,000
- Built-in (internal) database user limit: Up to 100
- Maximum number of virtual routers: 3

Power Description

Input Voltage:
- 110 V AC
- 220 V AC
Power Source: Power Supply

Network & Communication

Network Standard: 10/100Base-TX
Ethernet Technology: Fast Ethernet

Warranty

Limited Warranty: 1 Year

Memory

Standard Memory: 128 MB

Extended Details
