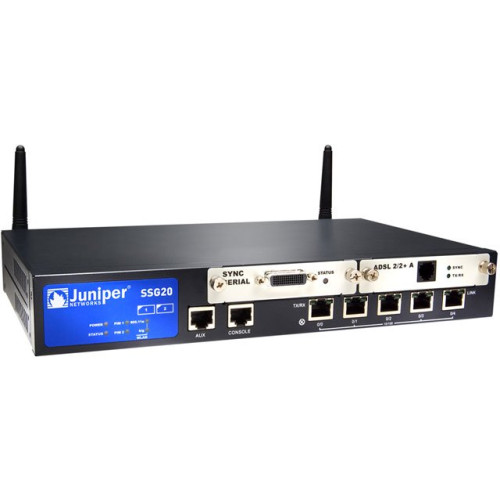

Juniper Networks SSG20 Data Networking
Part #: SSG-5-SB-M | SKU: JUN61132

The Juniper SSG20 Secure Services Gateways are purpose-built security appliances that deliver a perfect blend of performance, security, routing and LAN/WAN connectivity for small branch offices, fixed telecommuters and small standalone business deployments. Traffic flowing in and out of the branch office or business is protected from worms, spyware, trojans, and malware by a complete set of Unified Threat Management security features that include stateful firewall, IPsec VPN, intrusion prevention system (IPS), antivirus (includes antispyware, anti-adware, antiphishing), antispam and Web filtering.

Juniper Networks SSG20 Data Networking

Part Details: SSG 5-SSG 20, Security Services Gateway 5 (with v.92 Backup, 128MB Memory)

Need a different version of the Juniper Networks SSG20 Data Networking? View all 7 configurations

Additional Information

Manufacturer	Juniper Networks
Model Name	SSG20

Juniper Networks SSG20 Specs (pdf)

Technical Information

Encryption Standard:
- DES
- 3DES
- AES
- MD5
- SHA-1
Features:
- IPSec NAT Traversal
- PAT
Firewall Protection:
- Worm Scanning
- Antivirus
- Trojan Horse
- Anti-spam
- Web Content Filtering
- Intrusion Prevention
- Malware Protection
- Deep Inspection Firewall
- Anti-spyware
- Anti-phishing
- Adware Protection
- Email Anti-virus
- URL Filtering
- Network Attack Detection
- Denial of Service (DoS)
- Distributed Denial of Service (DDoS)
- Brute Force Attack Mitigation
- SYN/FIN
- Cookie Blocking
- IP Spoofing
- Protocol Anomaly Detection
- Stateful Protocol Signature
- Keylogger Protection
Virtualization:
- 16000 x Concurrent Session
- 2800 x New Sessions/second
- 200 x Security Policies
- 8 x Security Zone
- 40 x Concurrent VPN Tunnel
- 10 x Tunnel Interface
- 4 x Virtual Firewall
- 300 x Mapped IP
- 10 x 802.1Q VLAN Support
- 16000 x Concurrent Session
- 2800 x New Sessions/second
- 200 x Security Policies
- 8 x Security Zone
- 40 x Concurrent VPN Tunnel
- 10 x Tunnel Interface
- 4 x Virtual Firewall
- 300 x Mapped IP
- 10 x 802.1Q VLAN Support

General Information

Product Type: Network Security/Firewall Appliance
Product Series: SSG
Brand Name: Juniper
Manufacturer: Juniper Networks, Inc
Product Model: SSG 5
Product Name: SSG 5 Secure Services Gateway

Physical Characteristics

Height: 1.6"
Width: 8.8"
Depth: 5.6"
Form Factor: Rack-mountable
Weight (Approximate): 2.10 lb

Interfaces/Ports

USB: Yes
Total Number of Ports: 8
Number of RJ-11 Ports: 1
Modem: Yes

Network & Communication

Network Standard: 10/100Base-TX
Ethernet Technology: Fast Ethernet

Power Description

Power Source: Power Supply

Memory

Standard Memory: 128 MB

Extended Details
