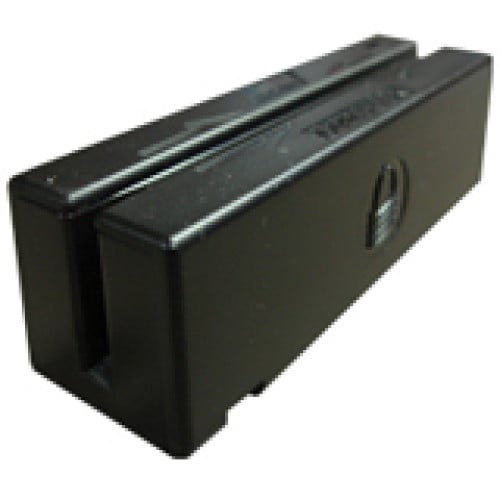

MiniUSB Credit Card Reader
Part #: 21040106 | SKU: MAG25498

The MiniUSB Stripe Reader offers single, dual, or three track capability swipe read. The MiniUSB Stripe Reader is powered by the USB port-no external power supply is needed.

MiniUSB Credit Card Reader

Part Details: MiniUSB Stripe Reader, USB, HID (Requires HID driver), Reads track 2 only. Includes USB cable. Color: Black

Need a different version of the MiniUSB Credit Card Reader? View all 10 configurations

Additional Information

Manufacturer	MagTek
Model Name	MiniUSB

MagTek MiniUSB Specs (pdf)

Technical Information

Magnetic Stripe Track Configuration: Single Track
Minimum Swipe Speed: 3 in/s
Maximum Swipe Speed: 50 in/s
Magnetic Stripe Track Number: Track 2
Magnetic Head Life: 1000 Swipe

General Information

Product Type: Magnetic Stripe Reader
Brand Name: MagTek
Manufacturer: MagTek, Inc
Product Name: Mini USB Swipe Magnetic Stripe Reader

Physical Characteristics

Color: Black

Interfaces/Ports

Interfaces/Ports: USB

Other

Package Contents:
- Mini USB Swipe Magnetic Stripe Reader
- 6' Cable
- Mini USB Swipe Magnetic Stripe Reader
- 6' Cable
Certifications & Standards:
- ISO
- ANSI
- CDL
- AAMVA
Additional Information:
- Bi-directional read capability
- Dual color LED

Environmental Conditions

Humidity:
- 10% to 90% Non-condensing Operating
- 0% to 100% Non-condensing Storage
Temperature:
- 32°F (0°C) to 131°F (55°C) Operating
- -22°F (-30°C) to 158°F (70°C) Storage

Reliability

MTBF: 125000 Hour

Extended Details

MiniUSB Credit Card Reader Part #: 21040106 | SKU: MAG25498
