Additional Information
| Manufacturer | MagTek |
|---|---|
| Model Name | MiniUSB |

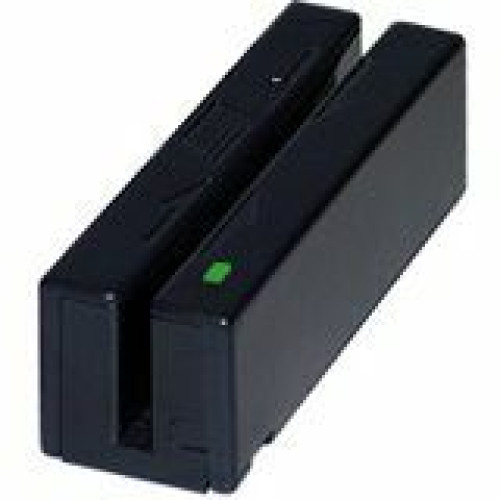

MagTek MiniUSB Specs
Technical Information
- Magnetic Stripe Track Configuration: Triple Track
- Minimum Swipe Speed: 3 in/s
- Maximum Swipe Speed: 50 in/s
- Magnetic Stripe Track Number:
- Track 1
- Track 2
- Track 3
- Magnetic Head Life: 1000 Swipe
General Information
- Product Type: Magnetic Stripe Reader
- Brand Name: MagTek
- Manufacturer: MagTek, Inc
- Product Name: Magnetic Stripe Swipe Card Reader
Physical Characteristics
- Height: 1.2"
- Width: 1.3"
- Depth: 3.9"
- Color: Black
- Length: 3.9"
Interfaces/Ports
- Interfaces/Ports:
- USB
- Keyboard Wedge
Other
- Package Contents:
- Magnetic Stripe Swipe Card Reader
- 6' Cable
- Magnetic Stripe Swipe Card Reader
- 6' Cable
- Certifications & Standards:
- ISO
- CDL
- ANSI
- AAMVA
- Additional Information:
- Magnetic Stripe Type:
- <p>Magnetic Stripe Configuration:
- <p>Head Type:
- <p>Swipe Speed:
- <p>Interfaces/Ports:
- <p>Color:
- <p>Agency Approvals:
- ISO
- AAMVA
Environmental Conditions
- Humidity:
- 10% to 90% Non-condensing Operating
- 0% to 100% Non-condensing Storage
- Temperature:
- 32°F (0°C) to 131°F (55°C) Operating
- -22°F (-30°C) to 158°F (70°C) Storage
Reliability
- MTBF: 125000 Hour
