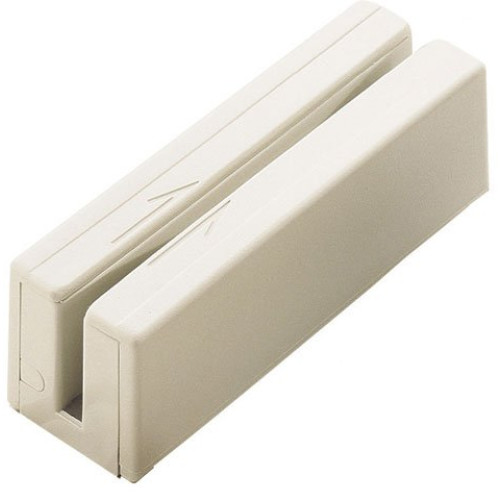

MagTek MiniWedge Credit Card Reader
Part #: 21080206 | SKU: MAG1697

The MiniWedge Stripe Reader offers single, dual, or three track capability swipe read. The MiniWedge Stripe Reader is powered by the keyboard port-no external power supply is needed.

MagTek MiniWedge Credit Card Reader

Part Details: MiniWedge Stripe Reader, track 2, Keyboard wedge interface. Includes PS/2 Y-cable. Color: black.

Additional Information

Manufacturer MagTek
Model Name MiniWedge

General Information

Technical Information

  • Magnetic Stripe Type: Card
  • Magnetic Stripe Configuration: Track 2
  • Interfaces/Ports: Keyboard Wedge PS/2

Physical Characteristics

  • Dimensions: 1.23" (31.24mm) x 1.28" (32.51mm) x 3.94" (100.08mm)
  • Weight: 5.9 oz
  • Color: Black

Environmental Conditions

  • Temperature:
    • 0°C (32°F) to 55°C (131°F) Operating
    • -30°C (-22°F) to 70°C (158°F) Storage
  • Humidity:
    • 10 to 90% Operating Non-condensing
    • 0 to 100% Storage Non-condensing
Extended Details
