Replacement Part is Available

MSR, MagTek Dynamag, USB Interface, Color: Black, HID, MagneSafe 2.0, Reads tracks 1, 2, and 3, Includes USB cable, Non-encrypted.

MSRP: $105.00 Price: $66.25

In Stock

Product was successfully added to your shopping cart.

Continue Shopping

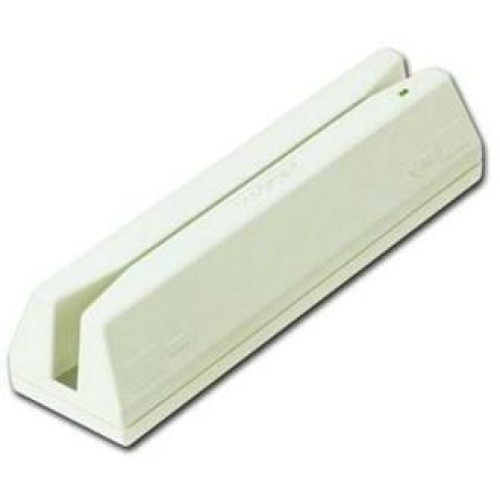

Stripe Reader Credit Card Reader
Part #: 21088007 | SKU: MAG1711

The Stripe Reader offers single, dual, or three track capability swipe read. The Stripe Reader is powered by the keyboard port-no external power supply is needed.

Stripe Reader Credit Card Reader

Part Details: Stripe Reader, tracks 1 & 2, RS-232 interface. Includes power supply (Part# 64300021). RS-232 cable sold separately (Part# 21083529). Color: white.

Need a different version of the MagTek Stripe Reader Credit Card Reader? View all 12 configurations

Additional Information

Manufacturer	MagTek
Model Name	Stripe Reader

MagTek Stripe Reader Specs (pdf)

General Information

Manufacturer:
- MagTek
- MagTek, Inc
Product Line: MSR
Product Name:
- Magnetic Stripe Swipe Card Reader
- MT-211232 Magnetic Stripe Reader

Technical Information

Magnetic Stripe Type: Card
Magnetic Stripe Configuration: Dual Track 1 & 2
Interfaces/Ports: RS-232
Reliability: 30000 Hour(s) MTBF
Input Voltage: 110 V AC

Physical Characteristics

Dimensions: 1.625" (41.27mm) x 1.75" (44.45mm) x 6.5" (165.1mm)
Weight: 6.6 oz
Color: White

Environmental Conditions

Temperature:
- 9Â°C (48Â°F) to 55Â°C (131Â°F) Operating
- -30Â°C (-22Â°F) to 70Â°C (158Â°F) Storage
Humidity:
- 10 to 90% Operating Non-condensing
- 0 to 100% Storage Non-condensing

Other

Package Contents:
- Magnetic Stripe Swipe Card Reader
- 110V Power Adaptor

Extended Details

Recommended Accessories for Model: Stripe Reader Credit Card Reader

MagTek Stripe Reader Accessories Accessory
Part #: 21083529 | SKU: MAG1712

9 Pin to 9 Pin RS-232 Cable

MSRP: $41.00 Price: $32.18

In Stock
MagTek Stripe Reader Accessories Accessory
Part #: 96700004 | SKU: MAG28758

MSR cleaning card

Price: $12.22
MagTek Stripe Reader Accessories Accessory
Part #: 22517563 | SKU: MAG28757

9 Pin Female Cable

Price: $34.23
MagTek Stripe Reader Accessories Accessory
Part #: 21040136 | SKU: MAG28756

Right Angle Cable for the Mini MSR; USB
MagTek Stripe Reader Accessories Accessory
Part #: 64300021 | SKU: MAG22845

Power supply for 21088007 MSR
